93
MAINTENANCE AND LUBRICATION
Lubrication Recommendations

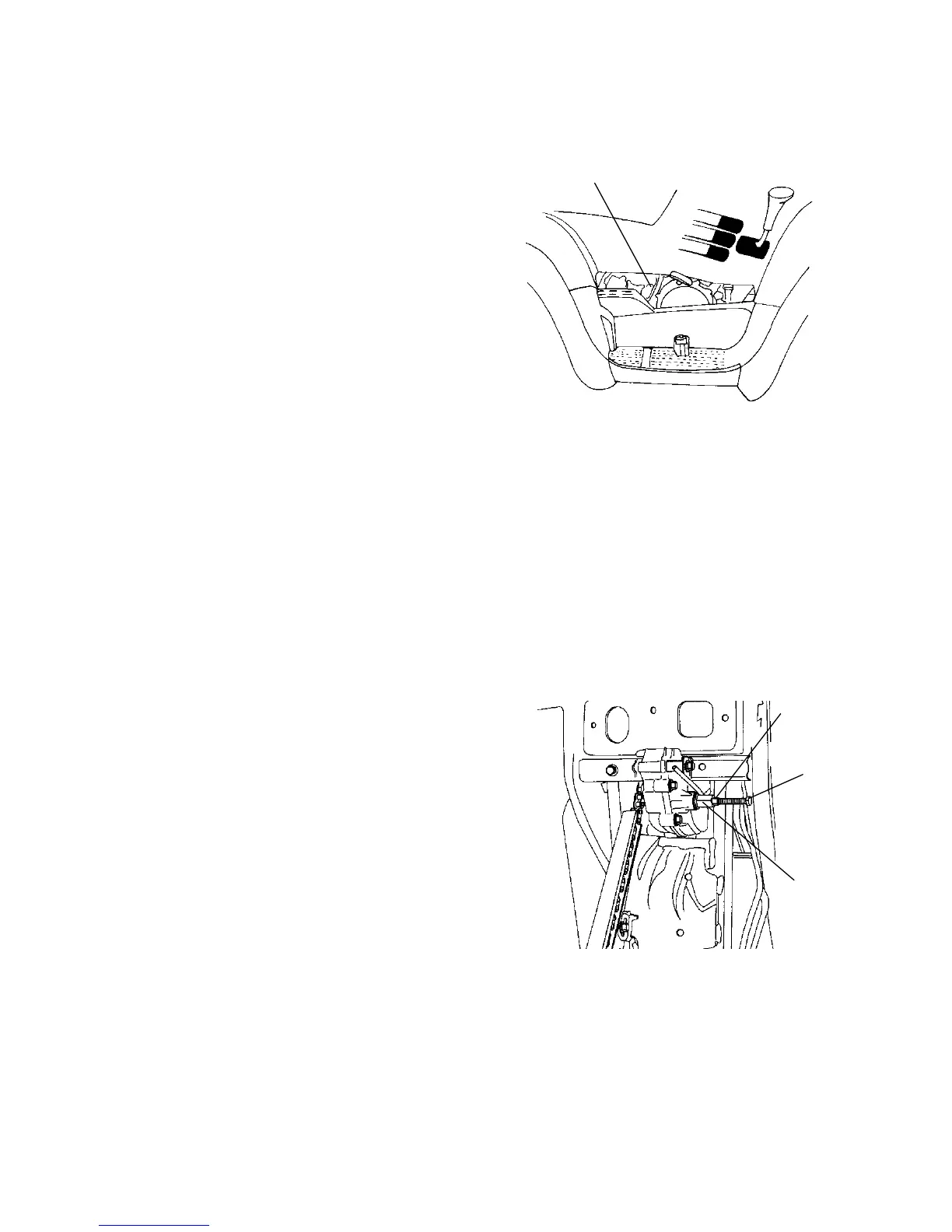

Transmission Oil Ch eck - Models with Dipstick
On most 2x4 models, the
transmission dipstick (1) is
located on the right side of the
machine. On the Sportsman, the
dipstick is located near the rear
brake disc.
The transmission lubricant level
should be checked monthly or
1000 miles (1600 km), whichever
comes first. Transmission oil
should be changed annually.
1. Position the ATV on a level surface, remove the fill plug dipstick
and wipe it clean.
2. Reinstall the dipstick completel y, then remove it and check the
level. Add the proper lubricant as required to bring level into the
safe operating range. NOTE: When adding oil, use P olaris
Premium Synthetic Gearcase Lubricant. See page 141 for the part
numbers of Polaris-recommended products.
Transmission Oil Chang e - 2x4 Mo d els
1. Place a drain pan beneath the
transmission oil drain plug
area.
2. Loosen the jam nut (A).
3. Turn the adjuster bolt (B) in to
allow the removal of the drain
plug (C).
4. Remove the drain plug and
wipe the m agnetic end clean to
remove accumulated metallic
filings.
5. After the oil has drained
completely, install a new
sealing washer and reinstall the drain plug. Torque to 14 ft. lbs.
(19 Nm).
6. Turn the adjuster bolt (B) out until it touches t he frame, and then
turn an additional 1/2 turn.
1
A
B
C
