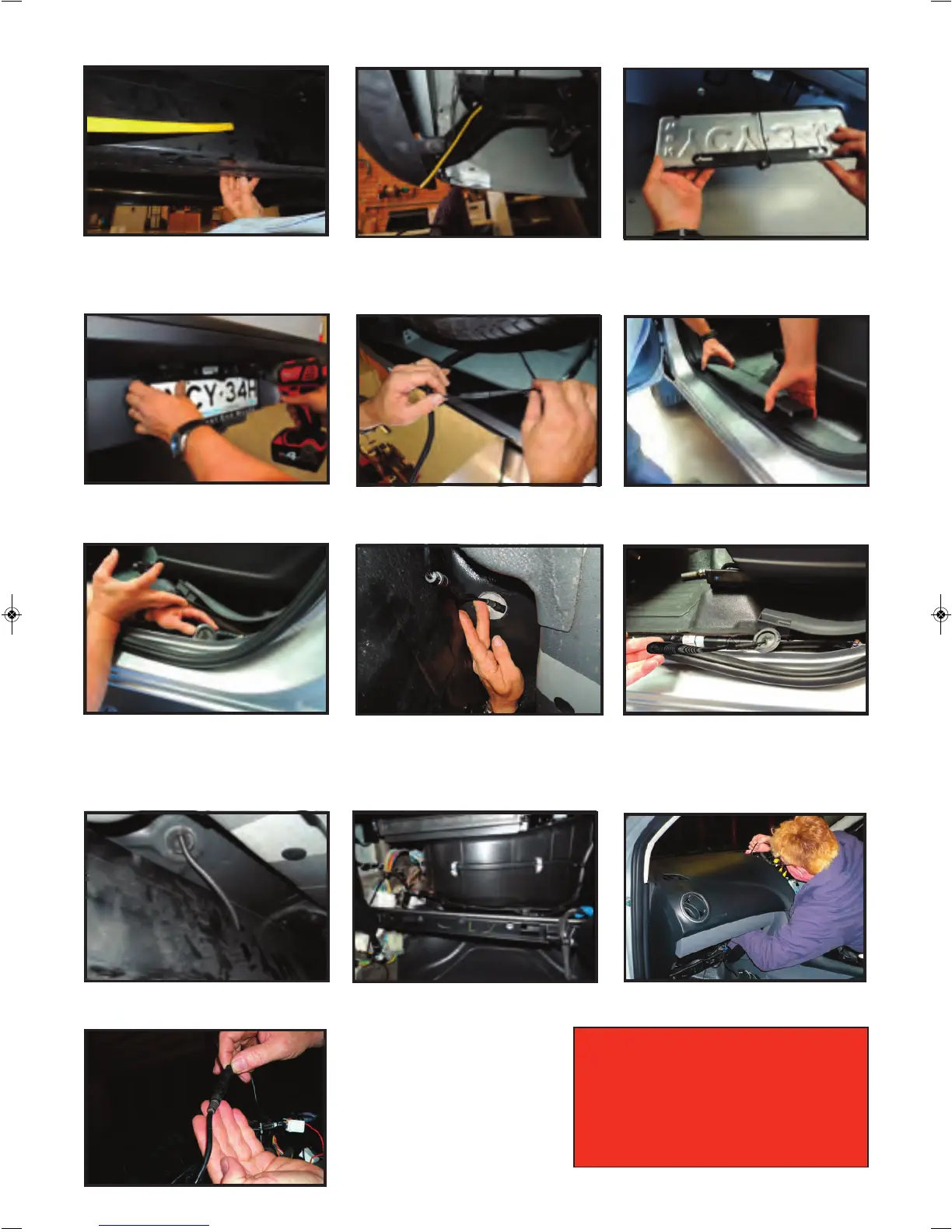

6. Connect camera plug to the extension cable.
Apply heat shrink over connection to avoid the
plug coming loose.
1. Run your long strike through chassis rail from front to rear.
2. Tape camera cable (large 4 pin din) onto strike at the rear of the vehicle.
3. Pull strike through from front of the vehicle - making sure that you leave enough cable at the
rear so that you can plug the camera cable in.
7. Remove kick panel and scuff plate on
passenger front side of vehicle
8. Lift carpet up to find grommet
9. Remove grommet and feed cable through
10. Use cutters to make an incision in
grommet so that you feed cable through it.
Once you have fed the cable through the
grommet restore grommet back into its
original position.
11. Pull excess cable then apply
conduit to all exposed cable.
12. Run reverse camera cable up into glove
box area.
13. Feed camera cable up to
top section
E. Rear Camera
14. Position HARNESS 2 up in the top
section and plug the camera cable
into the reverse camera plug input
15. Connect the reverse camera trigger
plugs from HARNESS 1 and
HARNESS 2 together
Notes:
Once you have repositioned the grommet after
feeding the reverse camera cable through,
we recommend applying silastic around the outside
the cable for waterproofing
Once you have fed the camera cable from the glove
box area up to the TOP SECTION, we recommend
that you cable tie any loose cables.
4. Attach the number plate camera onto
number plate (as shown above)
5. Mount number plate back
onto the vehicle.
