Polaris Mazda BT50 RW-50/15 User Manual

QUICK REFERENCE GUIDE
When the manual refers to ‘TOP SECTION’ this is the area located where the OEM 3.5” screen was origi-
nally mounted
When the manual refers to ‘CD HOUSING AREA’ this is the area located where the OEM CD housing was
originally mounted
When the manual refers to ‘OEM’, this means original equipment manufacturer.
HARNESS 1 refers to the main patch loom as per the diagram below
HARNESS 2 refers to the secondary patch loom as per the diagram below
PLUG A refers to the plug located on HARNESS 1 > this plug connects to the Mazda BT-50 OEM plug
located in the ‘TOP SECTION’
PLUG B refers to the plug located on HARNESS 1 > this plug connects into the back of RW-50/15
interface screen
PLUG C refers to the plug located on HARNESS 1 > this plug connects to the Mazda BT-50 OEM plug
located in the ‘CD HOUSING AREA’
PLUG D refers to the plug located on HARNESS 1 > this plug connects into the back of the Mazda BT
-50
OEM CD housing
PLUG E refers to the plug located on HARNESS 2 > this plug connects into the back of the
RW-50/15 interface screen
  











Media USB
Video out 1
Video out 2
DVR video input
AUX-IN video input
Reverse camera
Microphone
Reverse camera trigger




e
+B12V
ACC
GND IR
Connect to car original jack
Rear camera 2
Front video input
Reverse camera trigger
Power amplifier box
Connect to RW-50 interface
Connect to the
of car original head unit
power harness
Connect to car original head unit
Connect to OEM CD Housing
Connect to RW-50 interface
Connect to OEM screen plug
Connect to RW-50 Interface

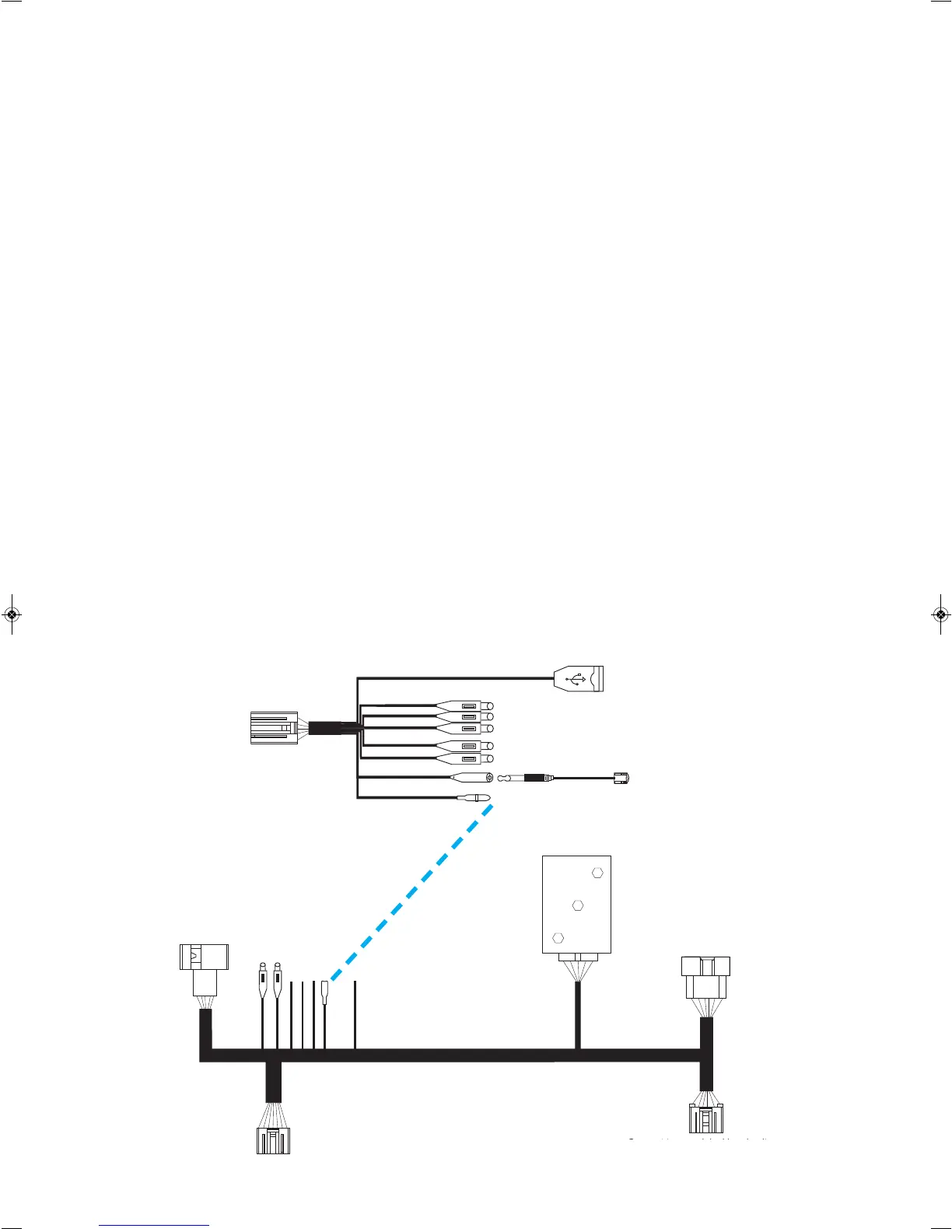

F. Wiring Diagram
Harness 2
Harness 1
Plug A
Plug B
Plug C
Plug D
Plug E
