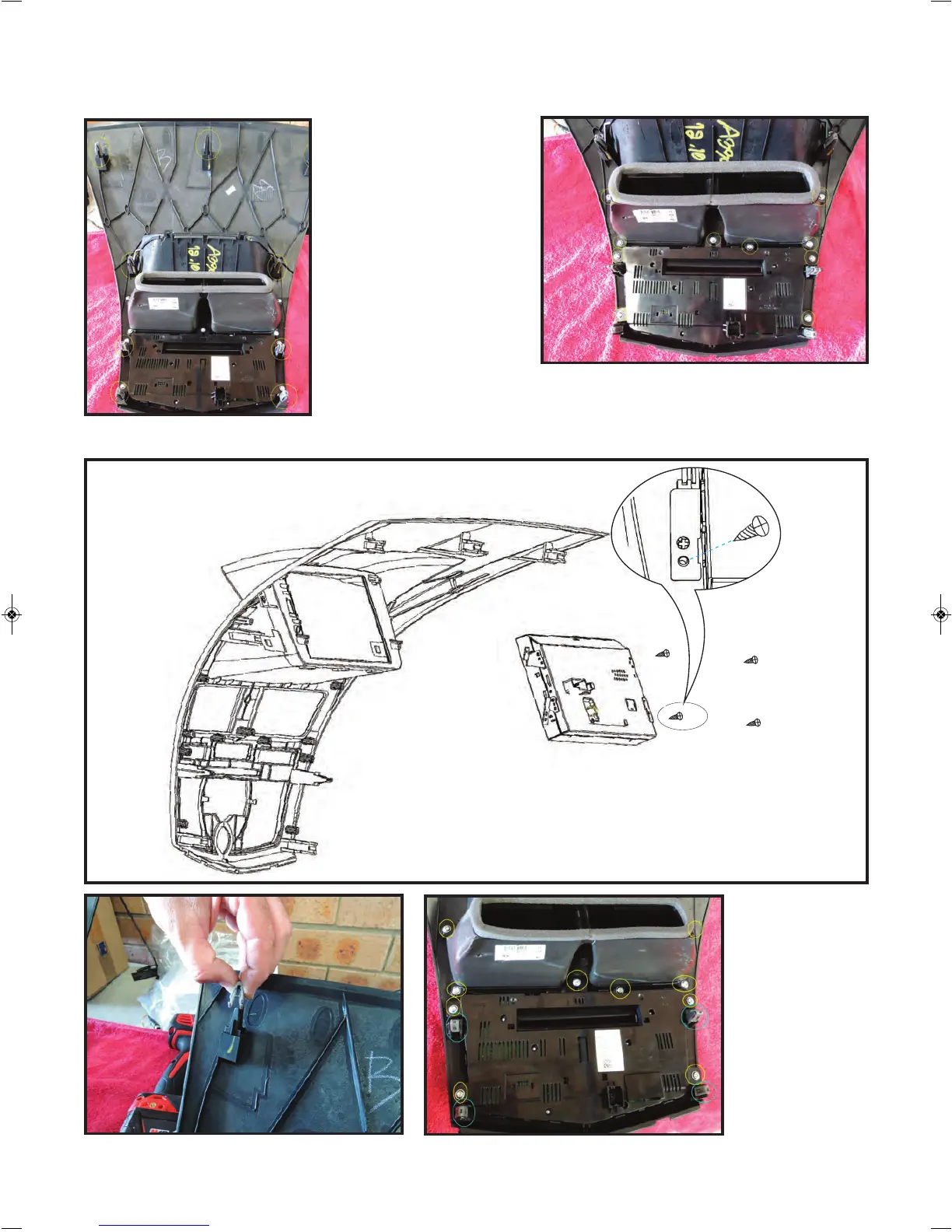

1. Grab the OEM fascia and

remove all 9 clips and set

aside.

5. Position the

button panel

and air

conditioning

vents onto the

RW-50/15

fascia and

secure in place

with the 10

original screws.

2. Remove the 10 screws holding the button

panel and air conditioning vents in place -

set aside.

4. Clip the 9 clips onto the

RW-50/15 fascia

Step 6 - Prepare the BT50 RW-50/15 fascia

OEM Fascia

3. Use the 4 screws supplied to mount

the interface screen onto the

RW-15/50 fascia panel.

RW50/15 Fascia

BT50 Installation Guide October 7-Rescue 8/10/2015 9:38 am Page 9
