ASSEMBLY NOTES
Electronic Throttle Body Fasteners: 7 ft.lbs. (10 Nm)
Intake Manifold -- To -- Cylinder Head Fasteners: 7 ft.lbs. (10 Nm)
Manifold Pressure Sensor Fastener Torque: 5 ft.lbs. (7 Nm)
Manifold -- To -- Lower Bracket Fastener Torque: (M6 x 25): 7 ft.lbs. (10 Nm) / M8 x 60 17 ft.lbs. (24Nm) Apply Loctitet 242 to
threads.
Lower Bracket -- To -- Crankcase Fastener Torque: 22 ft.lbs. (30 Nm)
High Pressure Air Banjo Fitting Torque: 7 ft.lbs. (10 Nm)
Never re--use o--rings or gaskets.
Verify heat exchanger mount pads are installed.

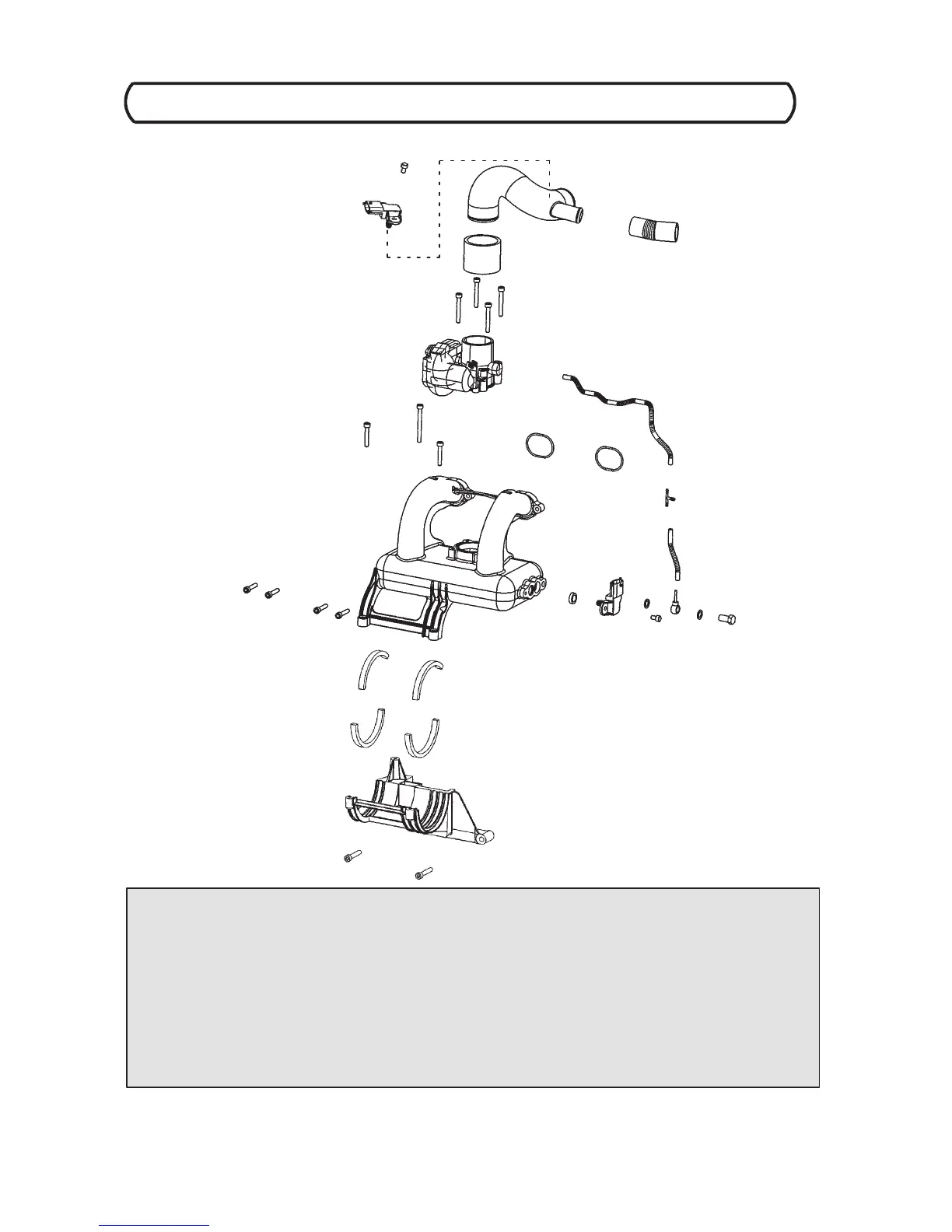

ELECTRONIC THROTTLE BODY (ETB)
BOOST / AIR TEMP. SENSOR
MANIFOLD PRESSURE SENSOR
LOWER BRACKET
HEAT EXCHANGER MOUNTING PADS
AIR INTAKE PIPE
PURGE VALVE HOSE
HIGH PRESSURE AIR HOSE
HIGH PRESSURE AIR BANJO FITTING
INTAKE MANIFOLD
FUEL INJECTION / IGNITION / EXHAUST SYSTEMS
5.92004 Four Stroke PWC Service Manual
Electronic Throttle Body / Intake Manifold
