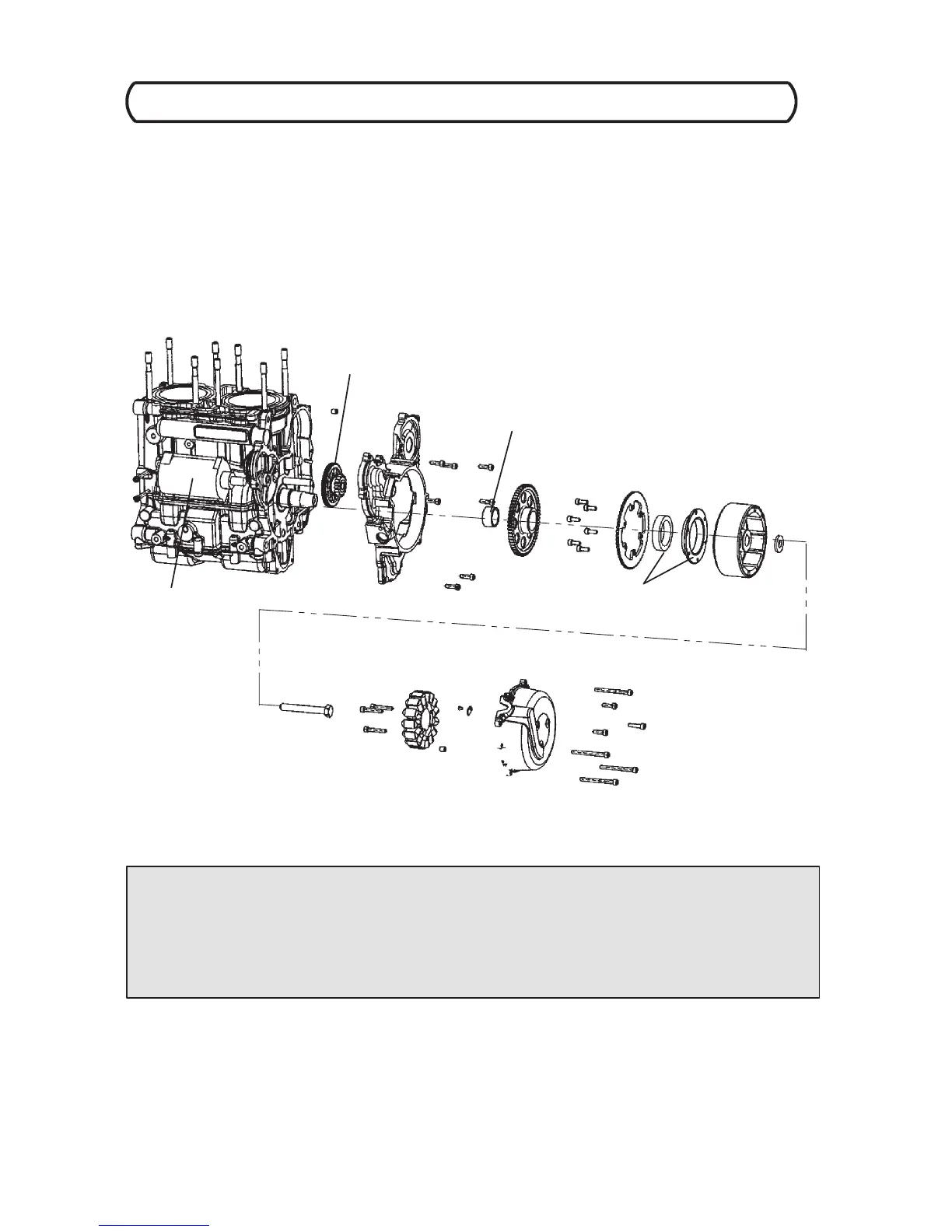

ASSEMBLY NOTES
Starter Motor Fastener Torque: 7ft.lbs. (10 Nm) Apply Nyogel to fasteners.
Front Gear Cover Fastener Torque: 7 ft.lbs. (10 Nm)
Speed Sensor Wheel / Sprague Clutch Fastener Torque: 7 ft.lbs. (10 Nm) Apply Loctitet 272 to threads.
Magnet Rotor Bolt Torque: 73 ft.lbs. (100 Nm) Apply engine oil to bolt threads.
Alternator Fastener Torque: 7 ft.lbs. (10 Nm)
Alternator Cover Fastener Torque: 7 ft.lbs. (10 Nm)
STARTER MOTOR
STARTER GEAR
FRONT COVER
ALTERNATOR
ALTERNATOR COVER
NEEDLE BEARING
STARTER GEAR
SPEED SENSOR WHEEL
SPRAGUE CLUTCH
MAGNET ROTOR
ELECTRICAL SYSTEMS
8.8
2004 Four Stroke PWC Service Manual
Alternator Assembly
