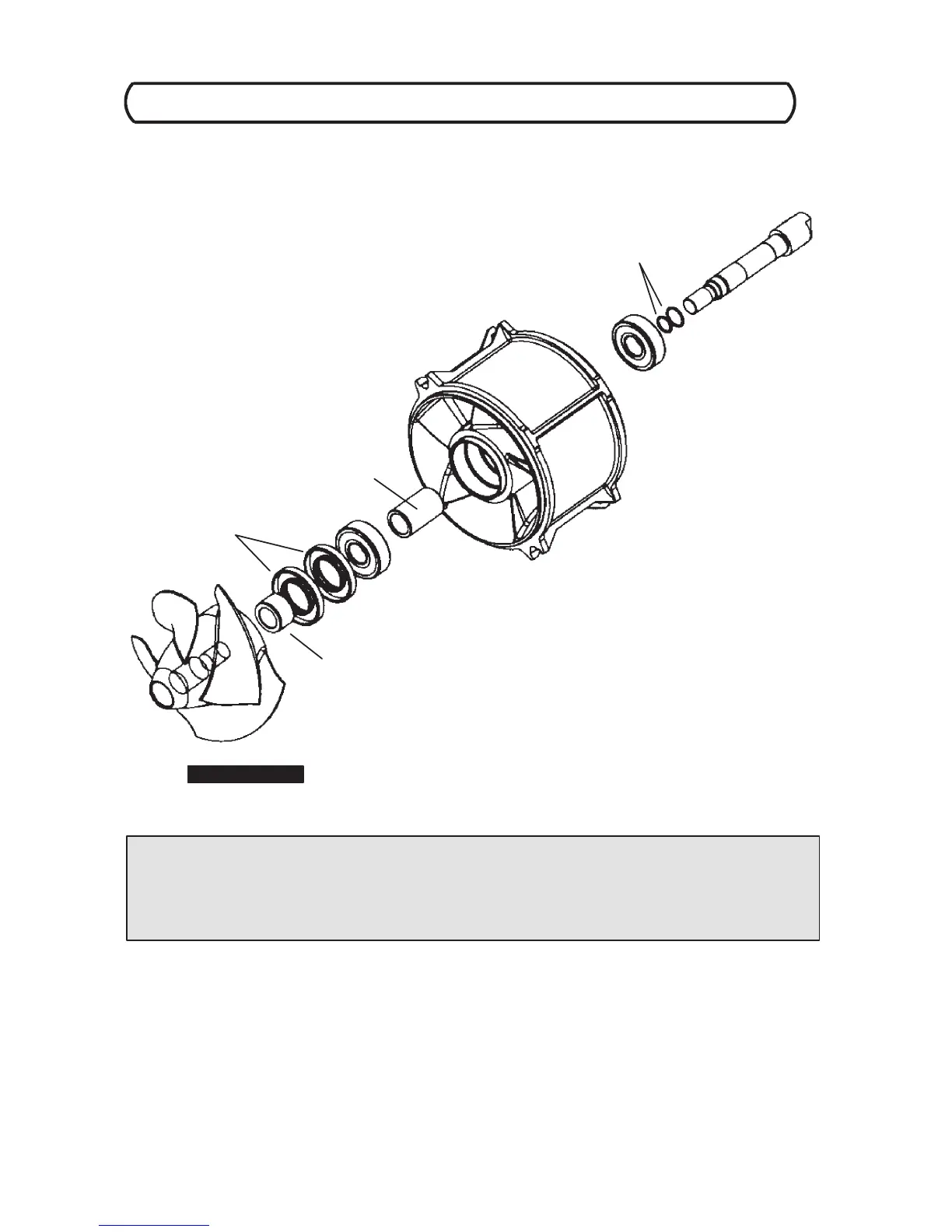

BEARING SP ACER
IMPELLER
IMPELLER SPACER
SEALS
(LIPSFACEIMPELLER)
STATOR HOUSING
BEARING
BEARING
O-- RINGS
STUBSHAFT
ASSEMBLY NOTES
Impeller Torque: 100 ft.lbs. (138 Nm) Apply Loctite 242 to threads.
Bearing Spacer Length: 1.730 in. 43.94mm (Service Limit)
Apply light film of Premium grease to seal lips, o--rings, and stubshaft during installation.
Bearing spacer length is critical to driveline operation. Replace if length is smaller than service limit.
Seal springs and / or seal lips must not be folded over , stretched, torn, etc. by impeller spacer during stubshaft installation.
100 ft.lbs. (138 Nm)
PROPULSION
6.52004 Four Stroke PWC Service Manual
Stator Assembly
