ENGINE DISASSEMBLY / ASSEMBLY
4.32
2004 Four Stroke PWC Service Manual
Engine Inspection Procedures
Cylinder Block Inspection

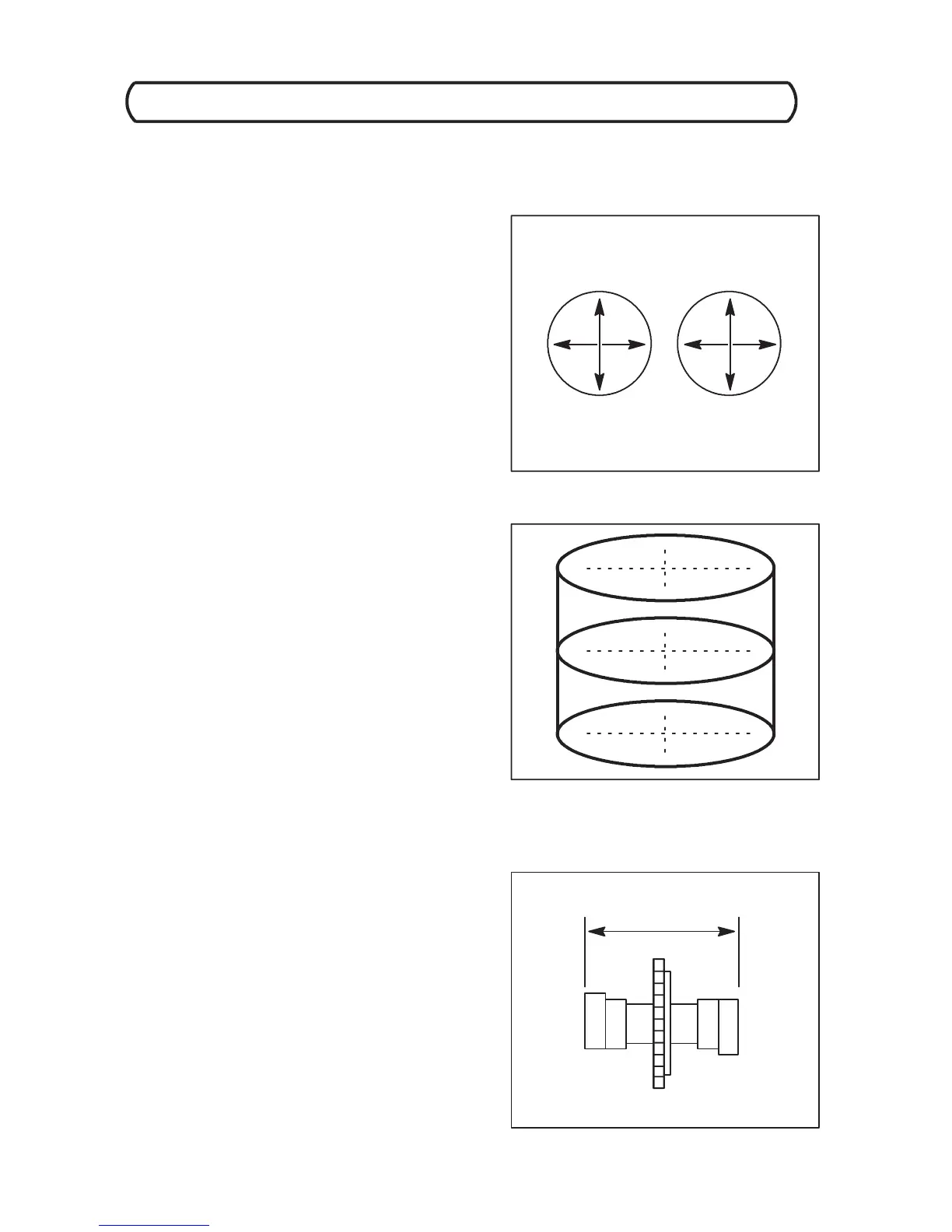

Measure cylinder bore size.
S Out of specification: Replace cylinder block
NOTE: Cylinders are plated with NiCaSil.
Measure cylinder for taper and out--of--round limits.
1. BORE = Maximum diameter of Da -- Df.
2. TAPER = Maximum of Da -- De and Db -- Df.
3. Out--of--Round = Maximum of Da -- Db and De -- Df.
S Out of specification: Replace cylinder block
Camshaft Insp ectio n
Measure camshaft width.
S Out of specification: Replace camshaft
