Polaris PG10 User Manual

27
TERMINATION CLEARANCES SIDEWALL DIRECT VENT
G
H
C
D
E
L
B
B
B
B
J
I
B
B
F
M
K
H
DIRECT VENT
(using outdoor air for combustion)

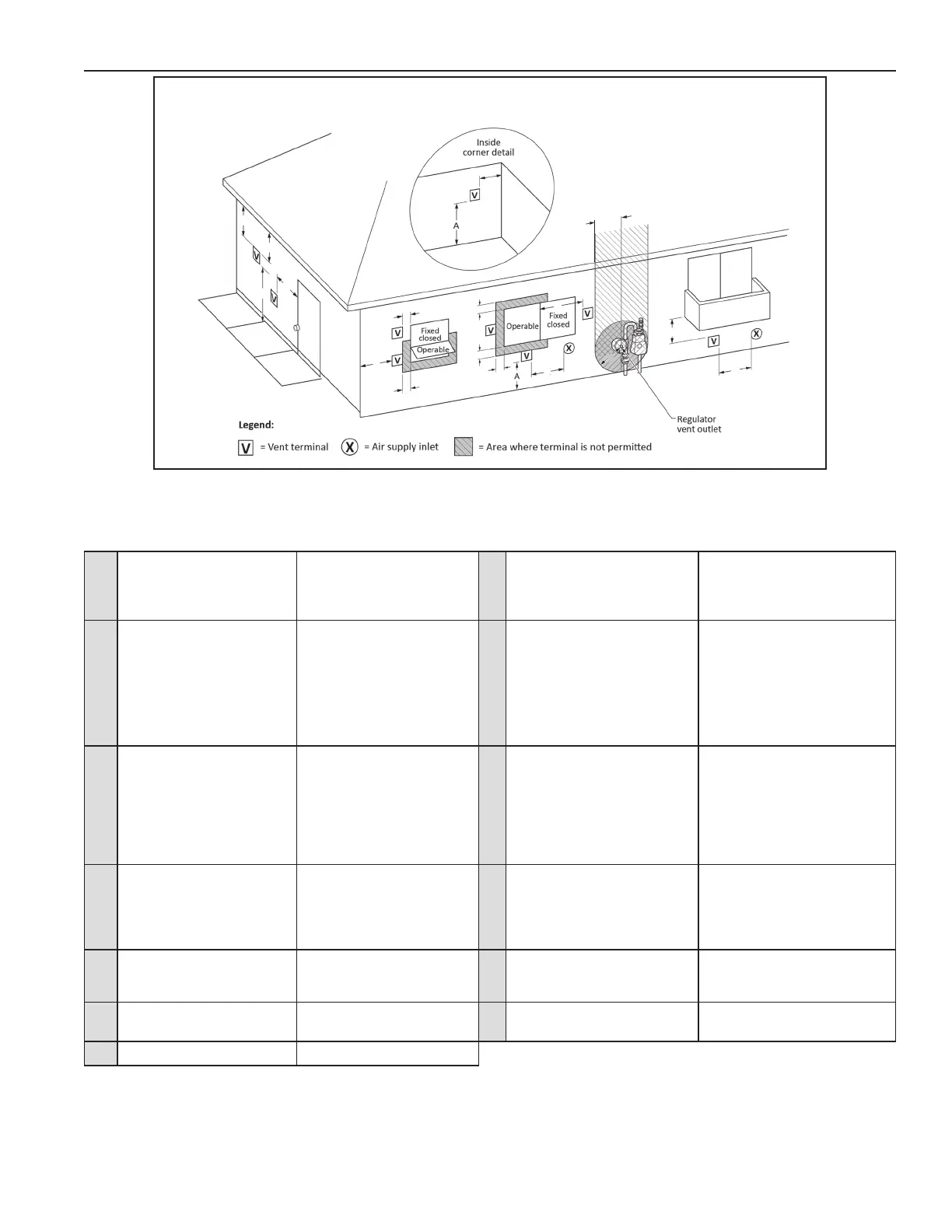

EXTERIOR CLEARANCES FOR SIDEWALL VENT TERMINATION
Figure 23
Vent terminal clearances for “Direct Vent” installations. Direct Vent congurations use outdoor air for combustion.
US INSTALLATIONS
1
US INSTALLATIONS
1
A
Clearance above grade, veranda, porch,
deck or balcony
12 inches (30 cm)
H
Clearance to each side of center line
extended above meter/regulator assembly
Clearance in accordance with local installation
codes and the requirements of the gas
supplier.
B
Clearance to window or door that may
be opened
6 in (15 cm) for appliances ≤ 10,000 Btuh
(3 kW), 9 in (23 cm) for appliances
> 10,000 Btuh (3 kW) and ≤ 50,000 Btuh
(15 kW), 12 in (30 cm) for appliances >
50,000 Btuh (15 kW)
I
Clearance to service regulator vent outlet
Clearance in accordance with local installation
codes and the requirements of the gas
supplier
C
Clearance to permanently closed window 6 inches (15 cm)*
J
Clearance to a non mechanical air supply
inlet into building or combustion air inlet to
any other appliance
6 in (15 cm) for appliances
≤ 10,000 Btuh (3 kW), 9 in
(23 cm) for appliances
> 10,000 Btuh (3 kW) and
≤ 50,000 Btuh (15 kW), 12 in
(30 cm) for appliances
> 50,000 Btuh (15 kW)
D
Vertical clearance to ventilated soft
located above the terminal within a
horizontal distance of 2 feet (61 cm) from
the center line of the terminal
12 inches (30 cm)*
K
Clearance to a mechanical air supply inlet
3 feet (91 cm) above if within 10 feet (3 m)
horizontally
E
Clearance to unventilated soft 12 inches (30 cm)*
L
Clearance above paved sidewalk or paved
driveway located on public property
7 feet (2.13 m)†*
F
Clearance to outside corner 2 feet (60 cm)*
M
Clearance under veranda, porch, deck, or
balcony
12 inches (30 cm) ‡*
G
Clearance to inside corner 18 inches (45 cm)*
1 In accordance with the current ANSI Z223.1/NFPA 54, National Fuel Gas Code.
† A vent shall not terminate directly above a sidewalk or paved driveway that is located between two single family dwellings and serves both dwellings.
Where it may cause hazardous frost or ice accumulations on adjacent property surfaces.
‡ Permitted only if veranda, porch, deck, or balcony is fully open on a minimum of two sides beneath the oor.
* Clearance in accordance with local installation codes and the requirements of the gas supplier and the manufacturer’s installation instructions.
