9

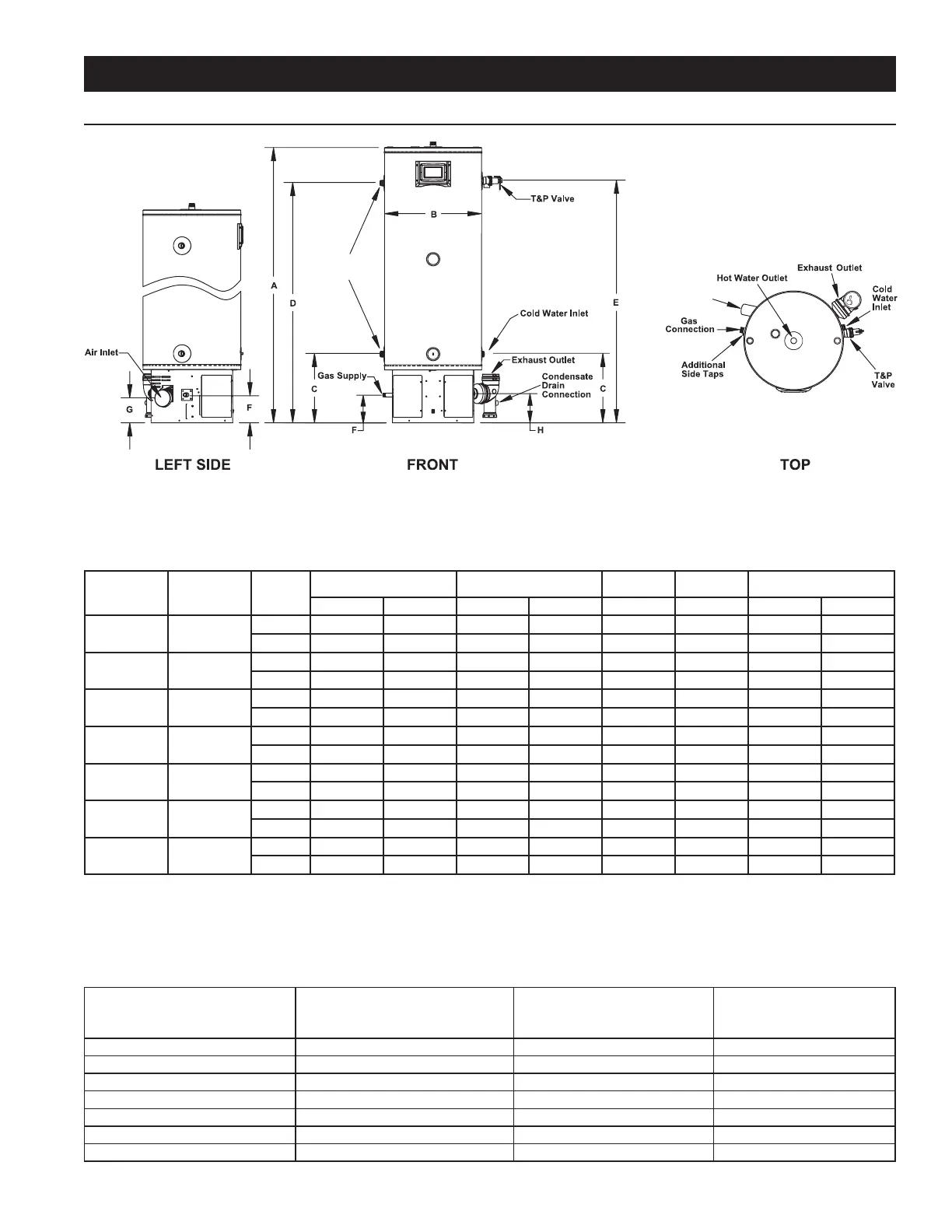

DIMENSIONS AND CAPACITY DATA
ROUGH IN DIMENSIONS: ALL MODELS
Additional
Side Taps
Air Inlet
All Models
Top Outlet: 1” NPT
Side Inlet: 1” NPT
Gas Inlet: 1/2” NPT
Condensate drain outlet: 1/2” NPT
Figure 1 . DIMENSIONS FOR ALL MODELS
Table 1A - ROUGH-IN-DIMENSIONS
Table 1B - ROUGH-IN-DIMENSIONS
U.S.
GALLONS
INPUT
(KBTU/HR)
UNITS
EXTERIOR WATER CONNECTIONS
T&P
HOT
GAS
SUPPLY
AIR INLET/EXHAUST
A B C D E F G H
34 100
Inches
48-1/2 22 15-3/4 40-1/2 41 6-3/8 5-1/2 6-5/8
cm
123.19 55.88 40 102.87 104.14 16.19 13.97 16.82
34 130
Inches
48-1/2 22 15-3/4 40-1/2 41 6-3/8 5-1/2 6-5/8
cm
123.19 55.88 40 102.87 104.14 16.19 13.97 16.82
34 150
Inches
48-1/2 22 15-3/4 40-1/2 41 6-3/8 5-1/2 6-5/8
cm
123.19 55.88 40 102.87 104.14 16.19 13.97 16.82
50 130
Inches
62-3/8 22 15-3/4 54-1/2 55 6-3/8 5-1/2 6-5/8
cm
165.7 55.88 40 138.43 139.7 16.19 13.97 16.82
50 150
Inches
63-3/4 22 15-3/4 55-3/4 56-1/4 6-3/8 5-1/2 6-5/8
cm
161.925 55.88 40 141.605 142.875 16.19 13.97 16.82
50 175
Inches
63-3/4 22 15-3/4 55-3/4 56-1/4 6-3/8 5-1/2 6-5/8
cm
161.925 55.88 40 141.605 142.875 16.19 13.97 16.82
50 199
Inches
63-3/4 22 15-3/4 55-3/4 56-1/4 6-3/8 5-1/2 6-5/8
cm
161.925 55.88 40 141.605 142.875 16.19 13.97 16.82
U.S. GALLONS
INPUT
(KBTU/HR)
VENT
DIAMETER
(in.)
APPROX SHIP. WEIGHT
(lbs.)
34 100 2 OR 3 150
34 130 2 OR 3 150
34 150 2 OR 3 150
50 130 2 OR 3 176
50 150 2 OR 3 180
50 175 3 180
50 199 3 180
