118
MAINTENANCE AND LUBRICATION
Lights
Headlight Adjustment
1. Position the ATV on a level surface with the
headlight approximately 25 ft. (7.6 m) from a flat
wall.
2. Measure the distance from the floor to the center of
the headlight and make a mark on the wall at the
same height.
3. Start the engine and t urn the headlight switch to
high beam.
4. Observe the headlight aim on the wall. The most
intense part of the headlight beam should be aimed
2” (5 cm) below the mark placed on the wall.
NOTE: Include rider weight on the seat when measuring.

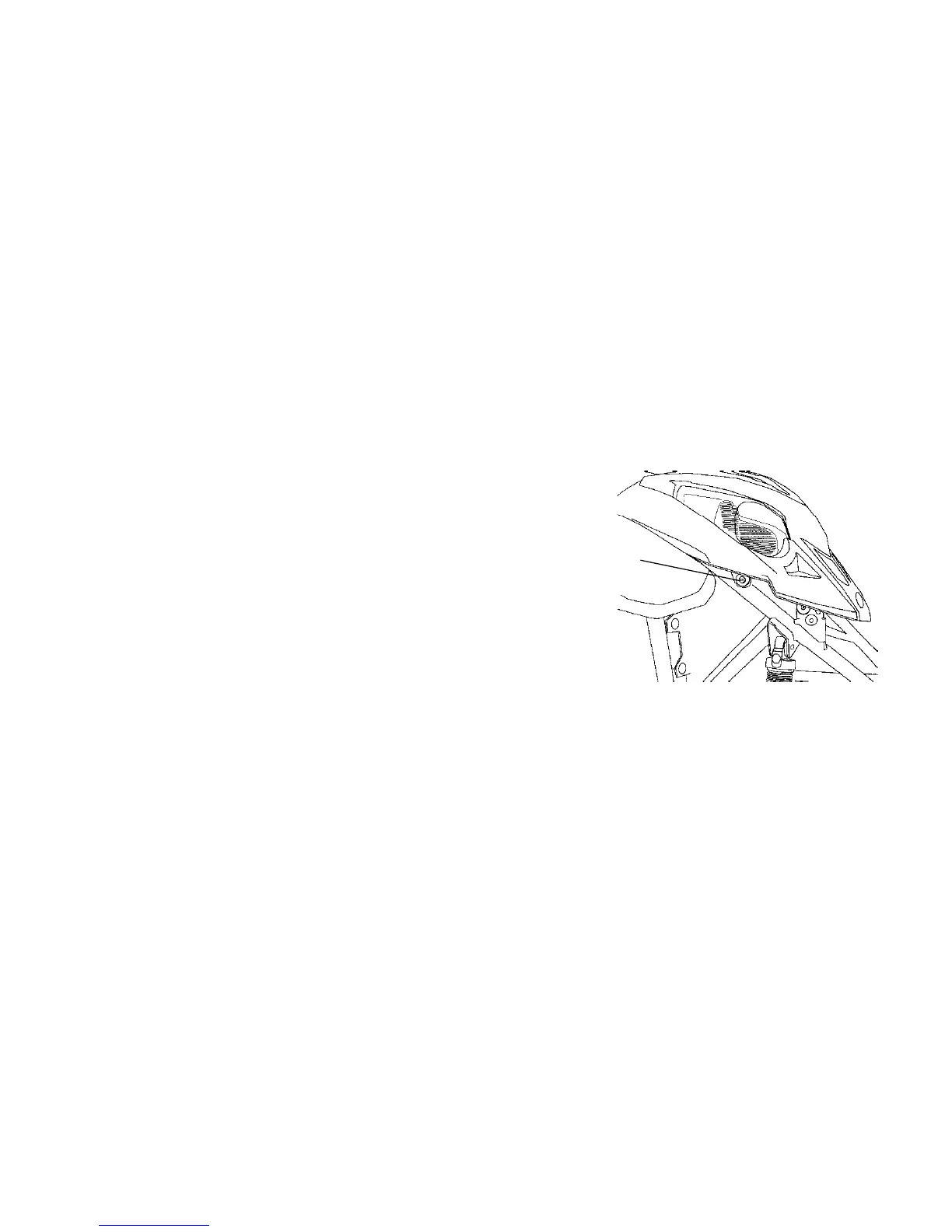

5. Loosen the pivot screw (1) and adjust the beam to the desired position.
6. Tighten the screw and torque to 27 in. lbs. (3 Nm).
1
