9
SPECIFICATIONS
SPECIFICATIONS
TORQUE SPECIFICATIONS
The table below contains the recommended torque
specifications according to bolt size and grade.
CAUTION: Some bolts in the Track System
assembly have a specific torque specification.
Refer to the exploded views at the end of the
Manual to obtain the exact torque specifications
applied to these bolts.
NOTE: Use a thread locker (Loctite 262 type or its
equivalent) at indicated places in the exploded
views of the system.

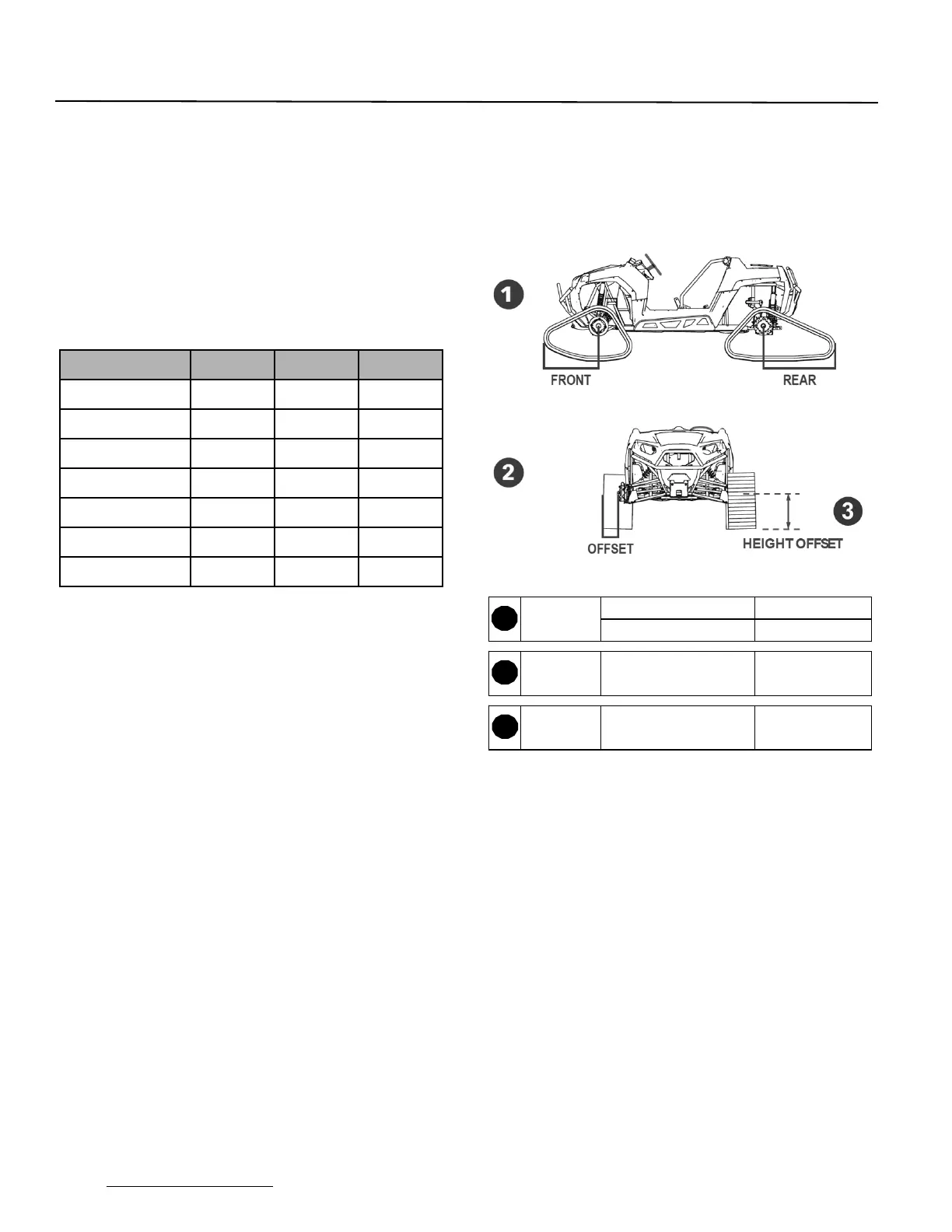

OFFSETS ON VEHICLE
Installation of a Track System on a vehicle creates
offsets in length, height and width. The offsets are
illustrated in the figure below and their dimensions
are specified in the accompanying table.
SPEEDOMETER AND TRIP METER
READINGS
Our Track System affects the Speedometer and Trip
meter readings by approximately 35% depending
on the ratio between sprocket and tire size.
DIMENSION GRADE Nm lb-ft
M6-1.0 8.8 10 7
M8-1.25 8.8 25 18
M8-1.25 10.9 33 24
M10-1.5 8.8 50 37
M10-1.5 10.9 70 52
M12-1.75 8.8 90 66
M12-1.75 10.9 125 92
