MAINTENANCE
LUBRICATION
The maintenance chart on page 17 includes
lubrication maintenance to perform on the
Track Systems. Refer to the following
recommendations for optimal lubrication.
NOTE: Use a grease designed for operation in cold
temperature and in extreme and wet
environments.
REFERENCE “A”
WHEEL SEAL LUBRICATION (Ø202 mm &
wide Ø134 mm wheels)

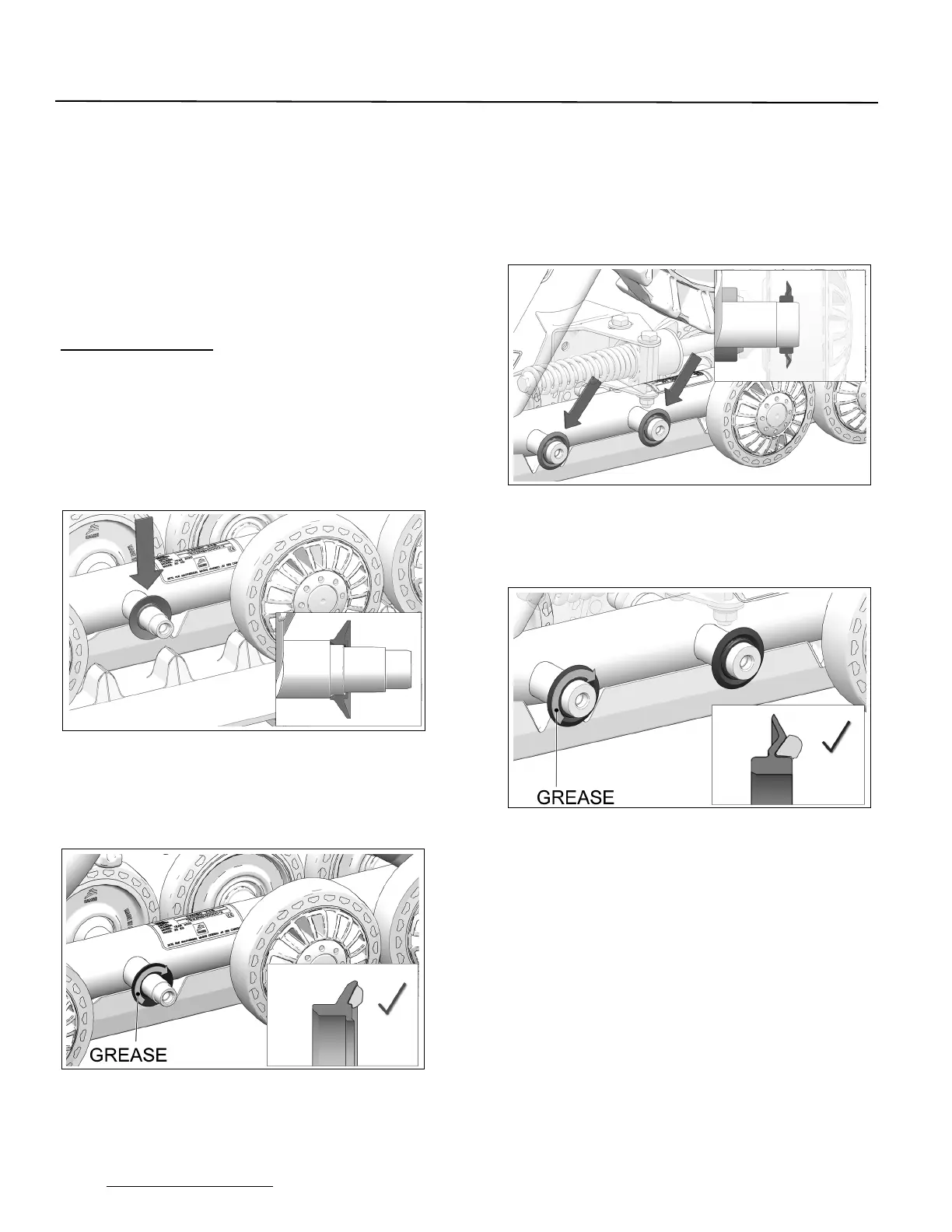

Install new seal on clean, dry wheel shaft at
position shown below.
NOTE: Installing new wheel seals is recommended
when lubricating these components.
Apply evenly 3 to 3.5 cc of grease all around the
wheel seal’s V–shaped groove.
NOTE: V-shaped groove must be filled with grease all
around.
WHEEL SEAL LUBRICATION (narrow Ø134
mm wheels)
Install new seal on clean, dry wheel shaft at mid-
point on bearing seat.
NOTE: Installing new wheel seals is recommended
when lubricating these components.
Apply evenly 3 to 3.5 cc of grease all around the
wheel seal’s V–shaped groove.
NOTE: V-shaped groove must be filled with grease.
