23
MAINTENANCE
REFERENCE “D”

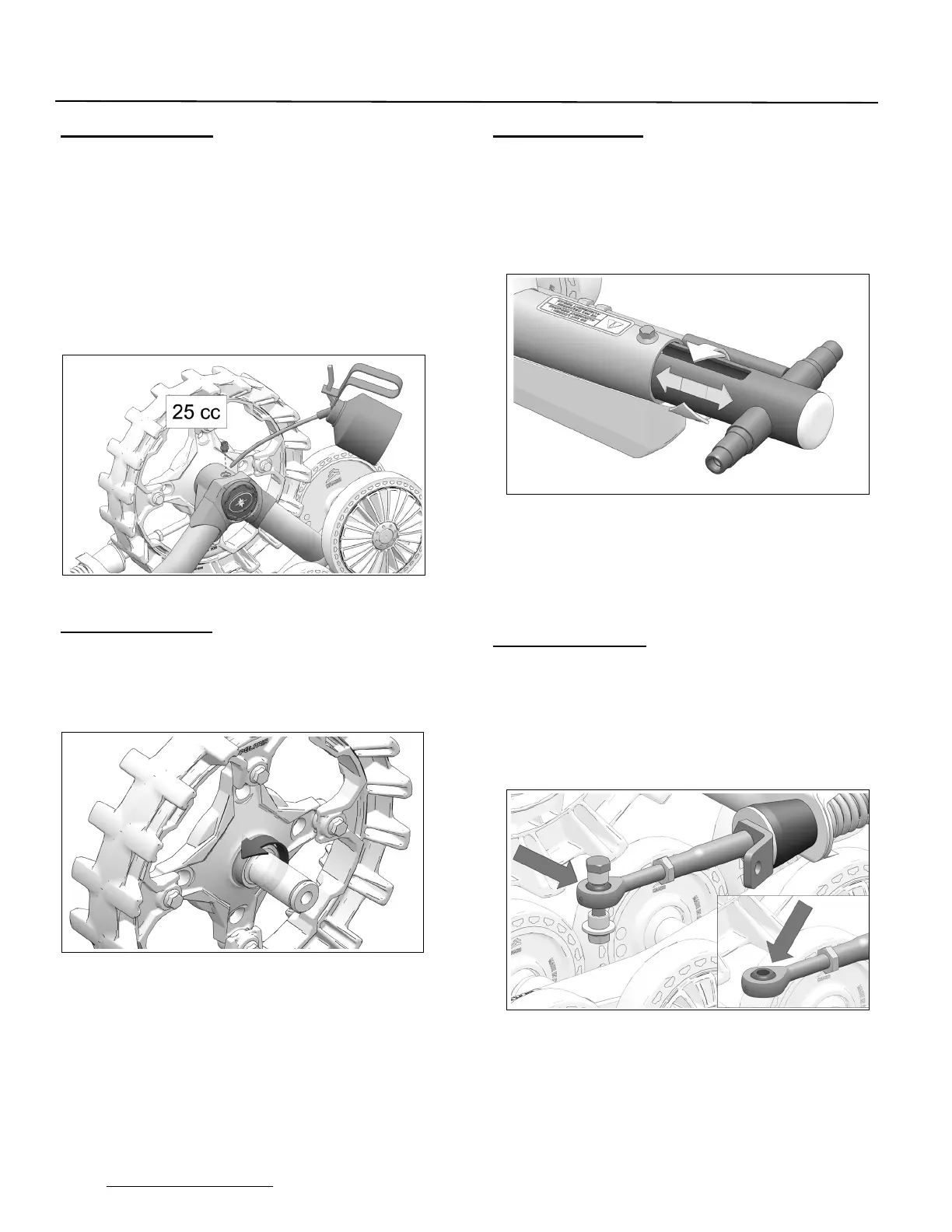

HUB LUBRICATION
Following replacement of hub bearings and/or re-
installation of hub, pour 25 cc of oil through hole
on top of hub housing intended for this purpose.
NOTE: Use a SAE 80W-90 grade oil designed for high
pressure applications.
CAUTION: Do not exceed the recommended
quantity of oil.
REFERENCE “E”
LUBRICATION OF HUB SPEED SLEEVE
Apply 1.5 to 2 cc of grease over the entire width
and circumference of the hub Speed Sleeve.
REFERENCE “F”
FRAME TUBING - TENSIONER SIDE
Slide the tensioner to its furthest point out. Apply
evenly a thin coat of grease, oil or spray lubricant
on the outside of the tensioner tubing, over the
entire circumference (360°).
NOTE: Application of lubricant on the tensioner tubing
prevents corrosion inside the frame.
Lubrication allows the tensioner to move freely
when adjusting the track’s tension.
REFERENCE “G”
LUBRICATION OF STABILIZING ARM ROD
ENDS
Clean and apply spray lubricant to rod end on
Stabilizing arms.
