Polaris PROSPECTOR PRO 2.0 - Anti-Rotation Bracket Kit

43

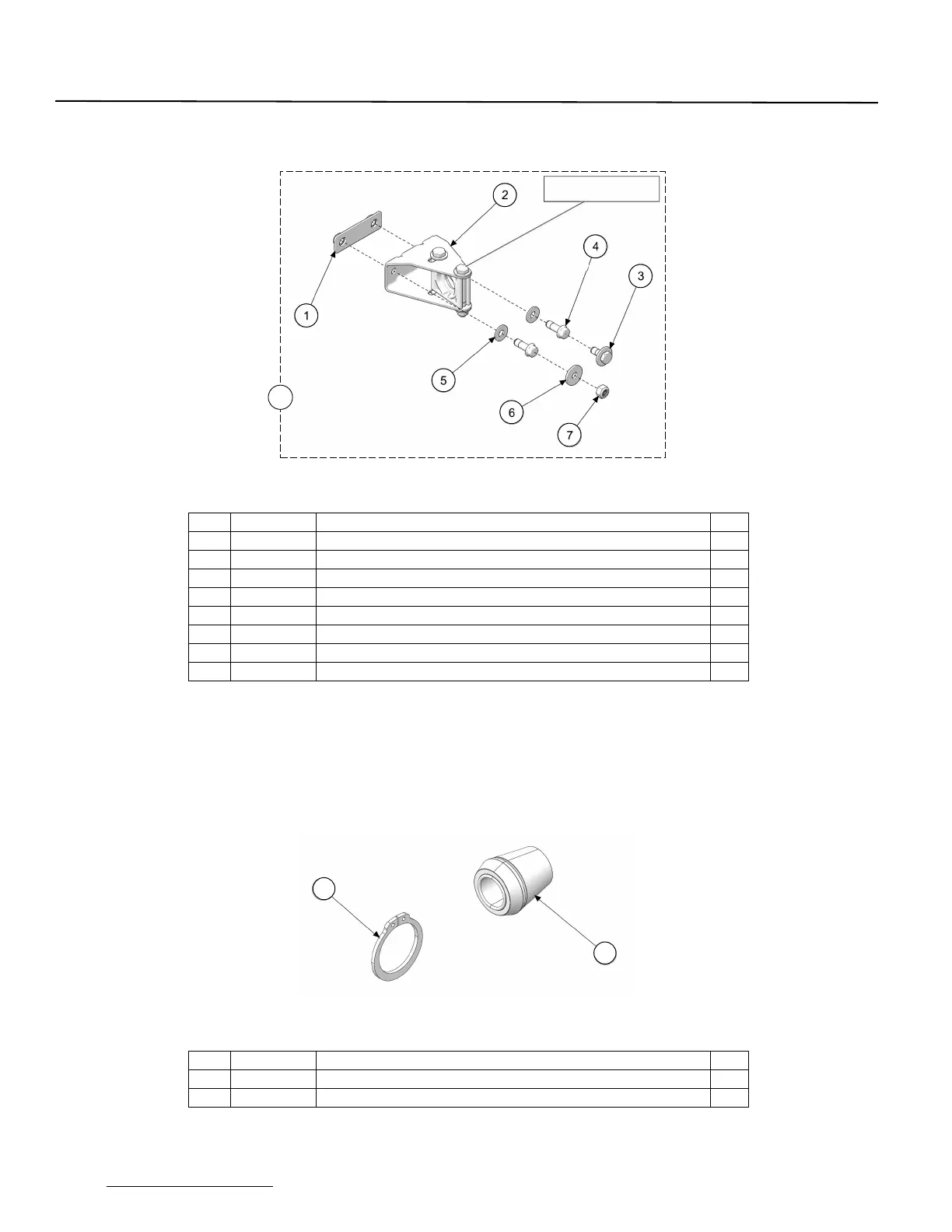

EXPLODED VIEWS
Anti-Rotation Bracket Kit / Ensemble attache antirotation
Cone Bushing / Retaining Ring -- Ensemble cône uréthane / bague d’arrêt
d
72548(1P>IWOEV@
7+5($'/2&.(5
7+5($'
ITEM PART # DESCRIPTION QTY
T 2205448 KIT-ANTIROTATION, BRACKET / S-KIT ANTIROT. SUSP. IND. 1
1 -- BACK PLATE / PLAQUE DE FIXATION 1
2 -- ANTI-ROTATION BRACKET IND SUSP / ATTACHE ANTI-ROTATION SI 1
3 -- HCSW, M10-1.5X25, 8.8, ZP, TL, DIN933 1
4 -- HFSCS, M10-1.5X30, 10.9, ZP, TL, DIN 6921 2
5 -- W, 7/16X1.0X0.072, 8, ZP, USS 2
6 -- W,3/8X1-1/4,0.120,ZP 1
7 -- NN,M10-1.5,ZP,8,DIN982 1
U
V
ITEM PART # DESCRIPTION QTY
U 2205462 K- CONE BUSHING, CMPLST, UTV / CÔNE CAOUTCHOUC, 1
V 2205454 ERR, 35, 2.4, ZP, SHR-137 1
