FINAL DRIVE
7.60

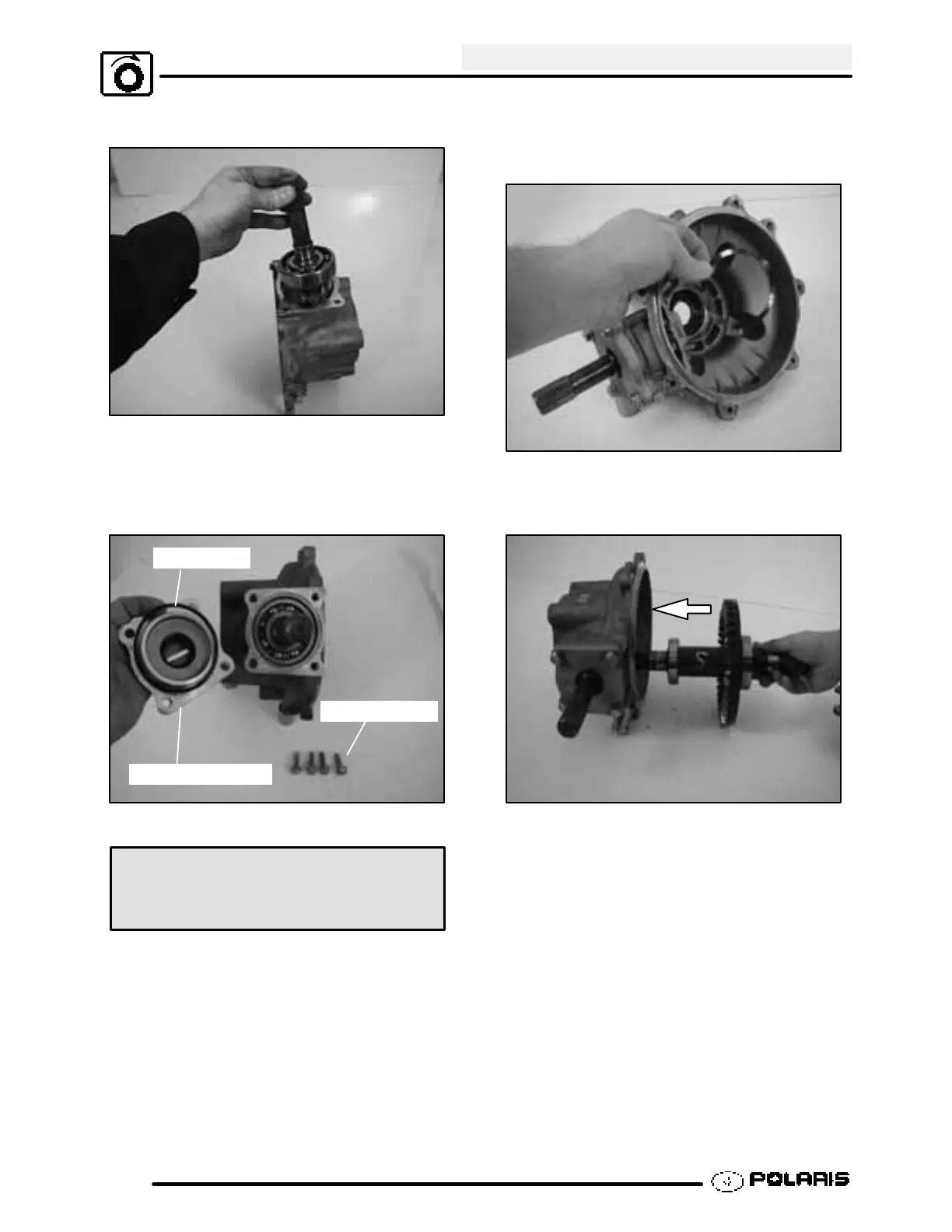

2. Install the pinion shaft into the differential housing.
3. Replace the pinion shaft cover O--ring and install
the cover. Install the four pinion shaft cover bolts
and torque the bolts to 20 ft. lbs. (27 Nm).
Pinion Gear Cover
New O--ring
20 ft.lbs.(27 Nm)
Pinion Shaft Cover Bolt Torque:
20 ft. lbs. (27 Nm)
4. Install the wave spring into the differential
assembly. Be sure to properly seat the wave
spring into the dif ferential.
5. Reinstall the the output shaft and ring gear.
