TRANSMISSION
8.7

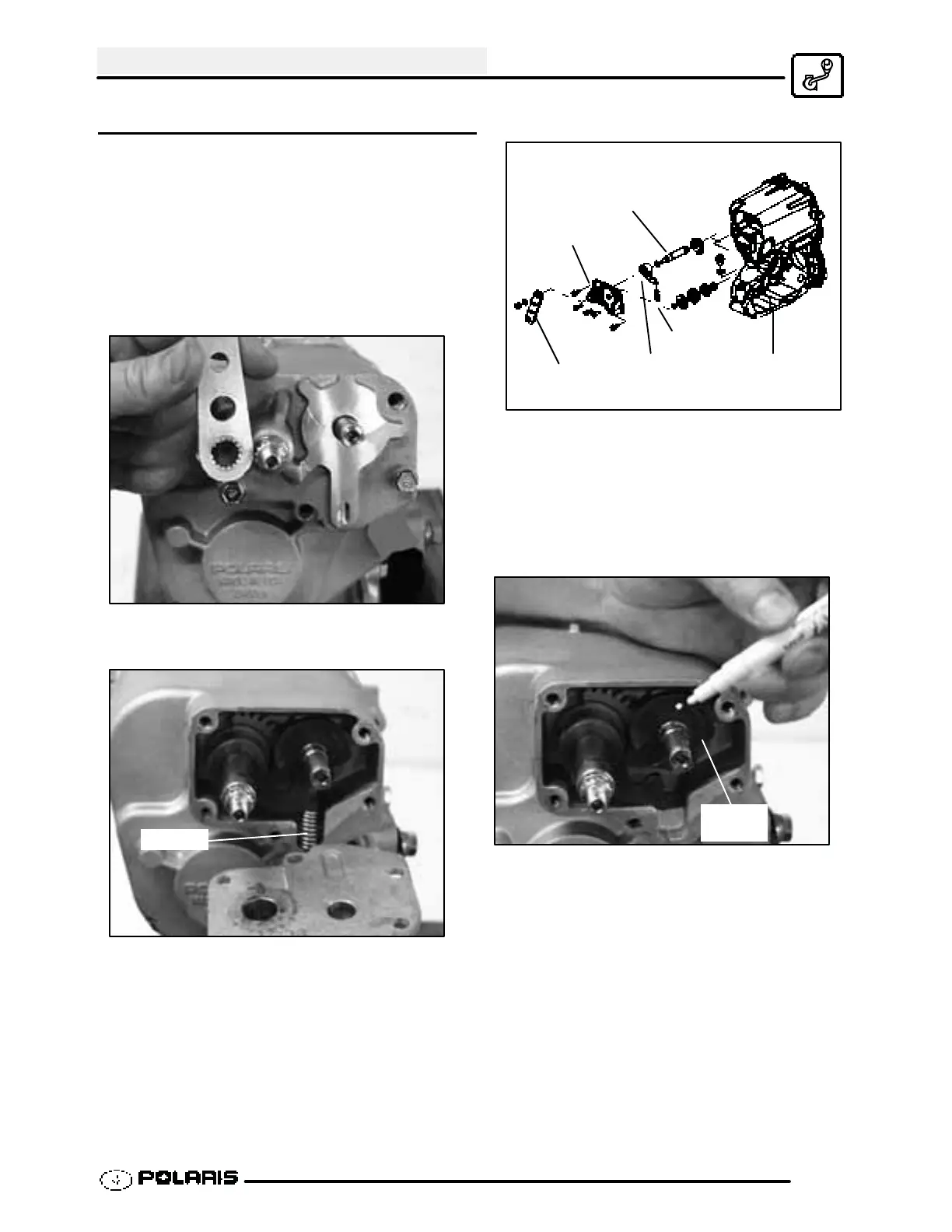

TRANSMISSION DISASSEMBLY
NOTE: The following disassembly procedure
shows the 4x4 transmission disassembly. Follow
the same procedure for the 2x4 and 6x6
transmission disassembly. The transmissions
are very similar. Refer to the exploded views at
the end of this chapter.
1. Place the bellcrank in neutral position.
2. Remove the nut, and washer that secure the bell
crank. Remove the bellcrank.
3. Remove the five bolts that secure the cover.
Remove the detent spring.
Spring
Bellcrank
Cover
Shift Shaft
Detent Pawl
Case
Spring
4. Mark the detent gear with a white pen. Remove
the detent gear from the case.
NOTE: It may be helpful to place a mark just above
the keyed spline.
Detent
Gear
5. Mark the spacer, this will indicate which side of the
disc faces outward during assembly. Remove the
spacer.
NOTE: It may be helpful to place a mark just above
the keyed spline.
