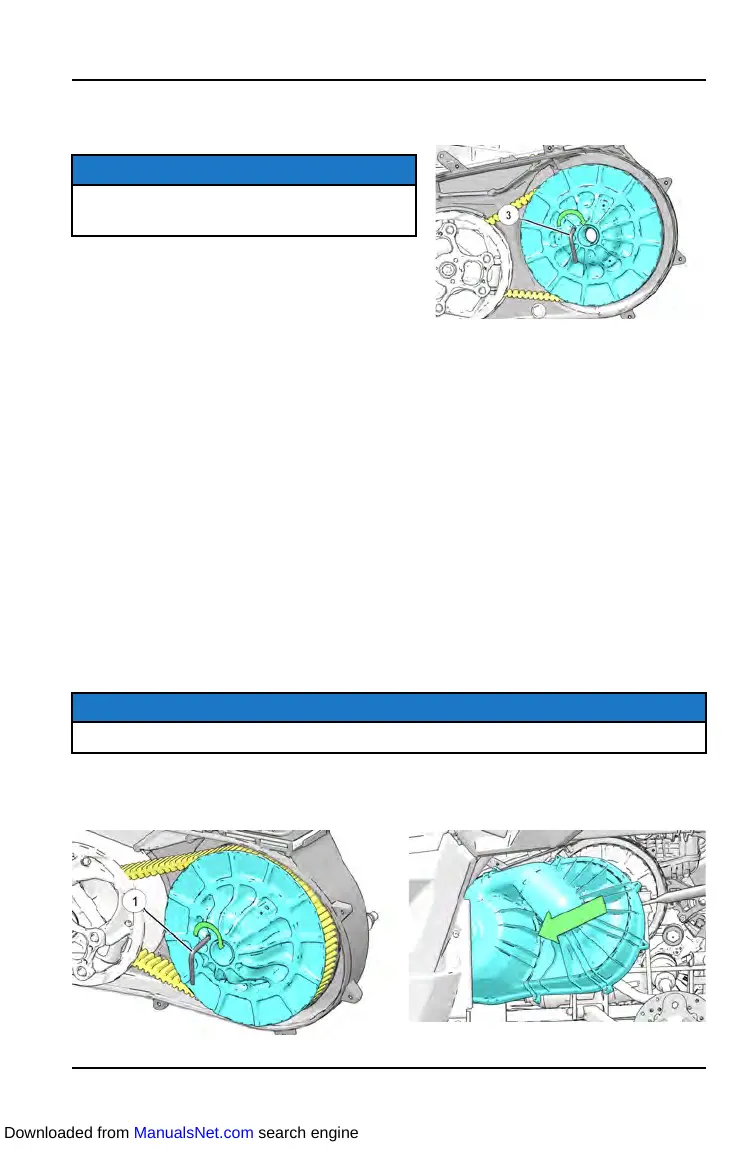

6. Insert clutch spreader tool
e
into threaded hole on driven clutch as shown
and turn clockwise to spread clutch.
NOTE
Clutch spreader tool part number
2875911 is found in vehicle tool kit.
7. Walk the belt out of the driven clutch and drive clutch. Remove the belt from
the vehicle.
BELT INSPECTION
To inspect the drive belt, do the following:
1. Inspect belt for hour-glassing (extreme circular wear in at least one spot and
on both sides of the belt). Hour glassing occurs when the drive train does not
move and the drive clutch engages the belt.
2. Inspect belt for loose cords, missing cogs, cracks, abrasions, thin spots, or
excessive wear. Compare belt measurements with a new drive belt. Replace
if necessary.
3. Belts with thin spots, burn marks, etc., should be replaced to eliminate noise,
vibration, or erratic PVT operation.
BELT INSTALLATION
NOTE
Be sure to install belt in the same direction as it was removed.
1. With the clutch spreader tool
q
installed, loop the belt over the drive clutch
and over the driven clutch.
101
MAINTENANCE
