10.10
9930588 R02 - 2017-2020 RZR 900 900/S 900/S4 1000/S 1000/S4 Service Manual
© Copyright Polaris Industries Inc.
PARKING BRAKE (INT'L)

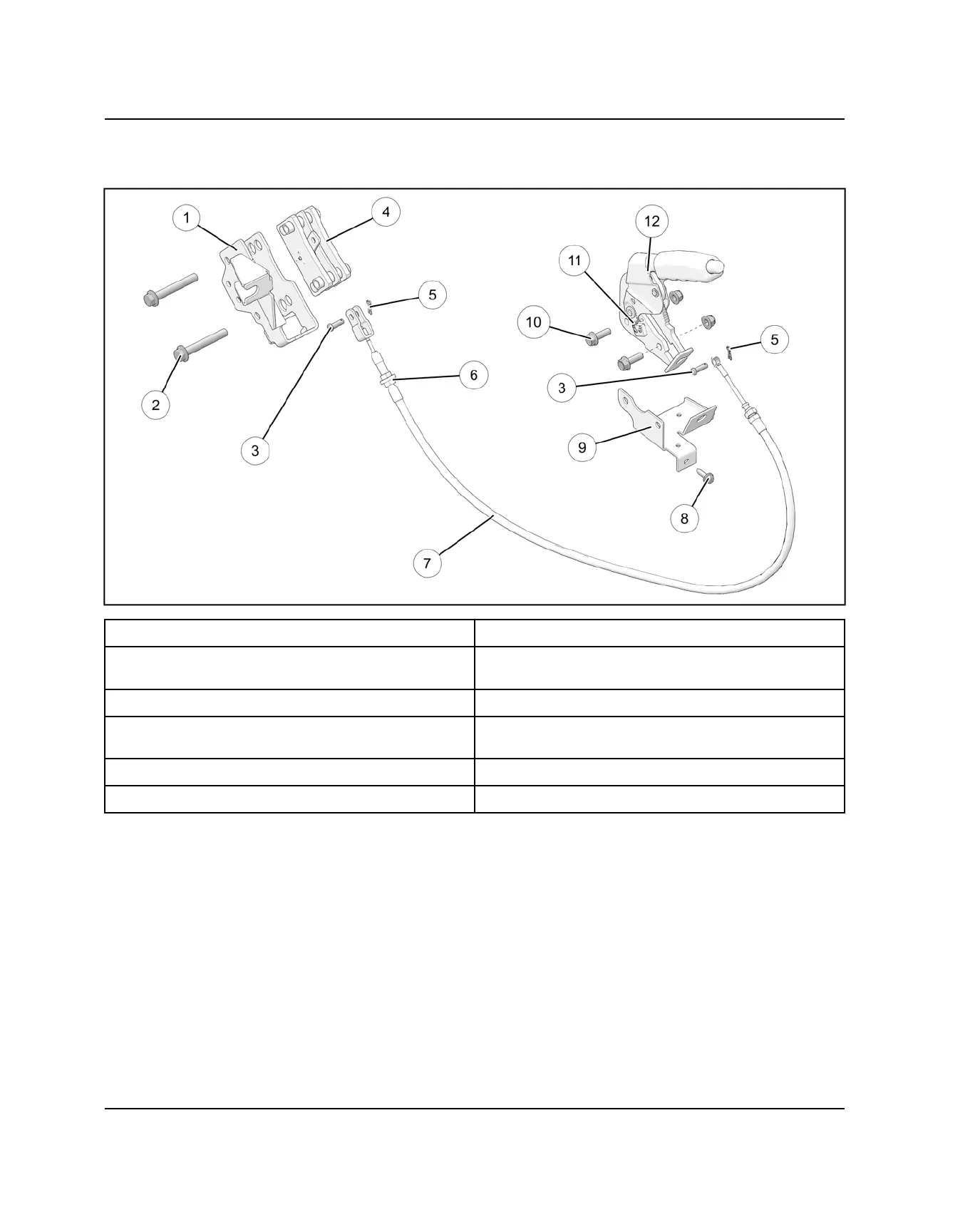

PARKING BRAKE ASSEMBLY VIEW
q
Parking Brake Caliper Mount Bracket
u
Parking Brake Cable
w
Parking Brake Caliper Mounting Bolts
30 ft-lbs (42 Nm)
i
Parking Brake Lever Mount Bracket Fastener
35 in-lb (4 Nm)
e
Clevis Pin
o
Parking Brake Lever Mount Bracket
r
Parking Brake Caliper/Pad Assembly
a
Parking Brake Lever Fasteners
30 ft-lbs (42 Nm)
t
Clip
s
Parking Brake Switch
y
Cable Adjuster
d
Parking Brake Lever Assembly
