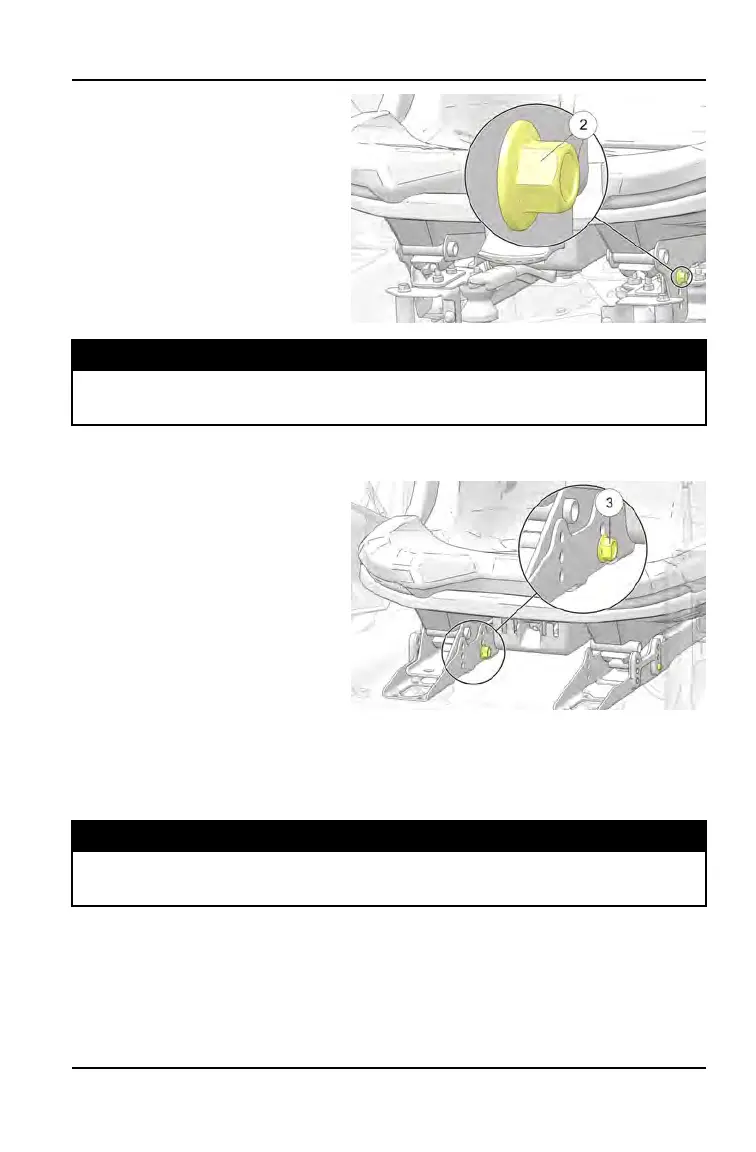

To adjust seat tilt, adjustment
bolts can be removed and re-
installed at a different tilt setting.
The driver side has two
adjustment bolts
w
, one on each
side, and has three tilt hole
options. Re-install the bolts to
specification when finished with
adjustments.
TORQUE
Seat Adjustment Bolts:
15 ft-lbs (20 N
⋅m)
PASSENGER SEAT ADJUSTMENT
To adjust the passenger seat
position, remove the seat and
remove the four bolts
e
located
on the two seat frame members.
The seat frame members can be
moved forward (or backward) to
the desired position.
The passenger seat can also be tilted up/down (similar to the driver seat) using
the three tilt hole options. Choosing which set of tilt holes to use is dependent on
whether the seat position has been moved forward or backward. Re-install the
bolts to 15 ft-lbs (20 N⋅m) of torque when finished with adjustments.
TORQUE
Seat Adjustment Bolts:
15 ft-lbs (20 N
⋅m)
39
FEATURES AND CONTROLS
