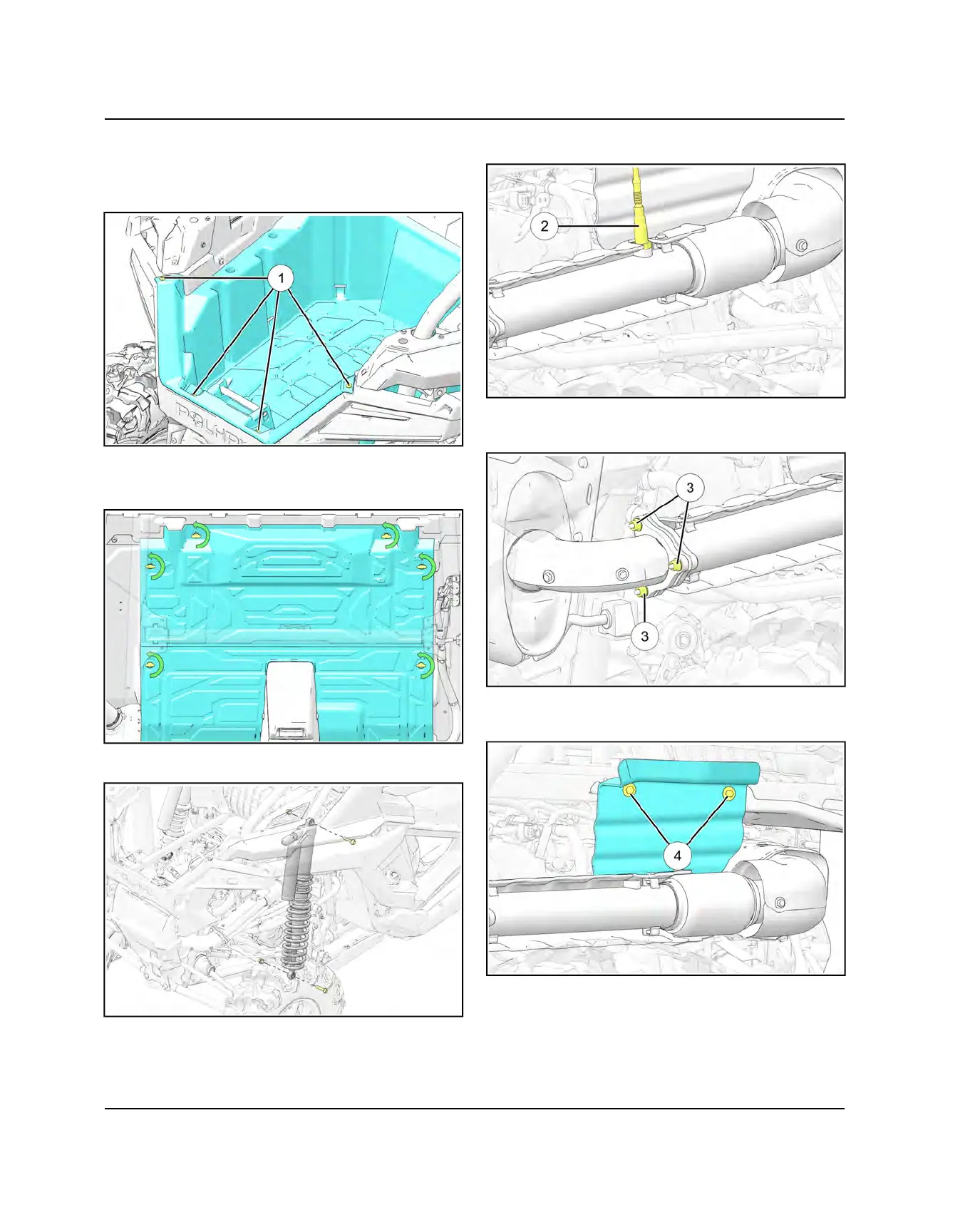

EXHAUST PIPE REMOVAL
1. Lift and secure the vehicle.
2. Remove four fasteners
q
and remove the cargo box.
3. Remove seats.
4. Remove upper and lower rear close off panels.
5. Remove the right rear shock assembly.
6. Disconnect and remove the oxygen sensor
w
.
7. Remove three fasteners
e
retaining the muffler to the
exhaust pipe.
8. Remove two fasteners retaining the heat shield
above the oxygen sensor location.
