DOORS

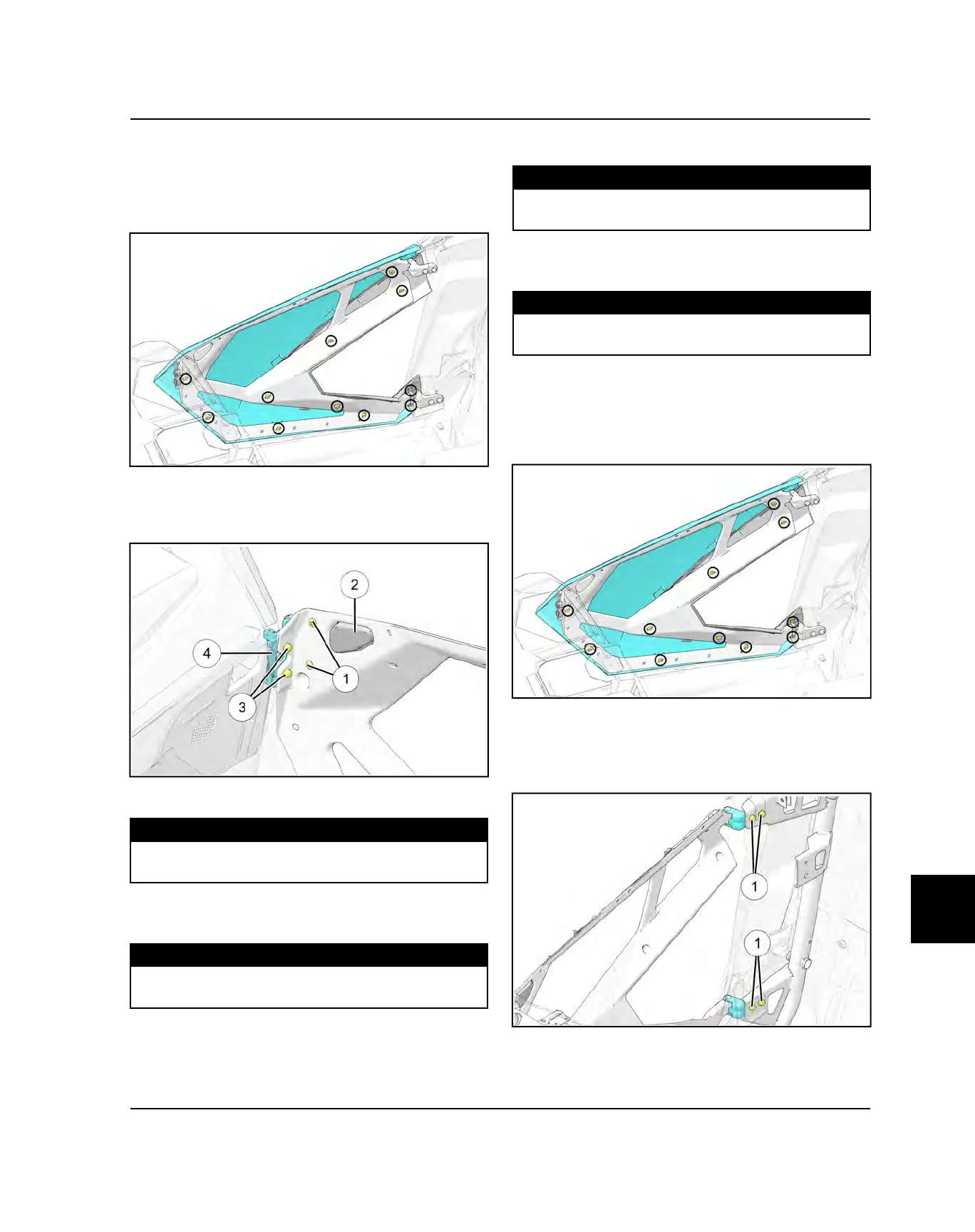

DOOR PANEL / LATCH REPLACEMENT
1. Remove eleven fasteners and remove door panels as
an assembly.
2. Remove latch actuator fasteners
q
and remove latch
actuator
w
.
3. Remove latch fasteners
e
and remove latch
r
.
4. Install new latch. Torque fasteners to specification.
TORQUE
Door Latch Fasteners:
9 ft-lbs (12 Nm)
5. Install new latch actuator. Torque fasteners to
specification.
TORQUE
Door Latch Actuator Fasteners:
9 ft-lbs (12 Nm)
6. Install door panel. Torque fasteners to specification.
TORQUE
Door Panel Fasteners:
35 in-lbs (4 Nm)
7. Install door trim bracket. Torque fasteners to
specification.
TORQUE
Door Trim Bracket Fasteners:
18 in-lbs (2 Nm)
DOOR ADJUSTMENT
1. Remove eleven fasteners and remove door panels as
an assembly.
2. Close the door and keep it closed during entire
adjustment for proper functional fit.
3. Loosen four fasteners
q
holding the door assembly
hinge brackets to the frame.
BODY / FRAME
