REAR SUSPENSION

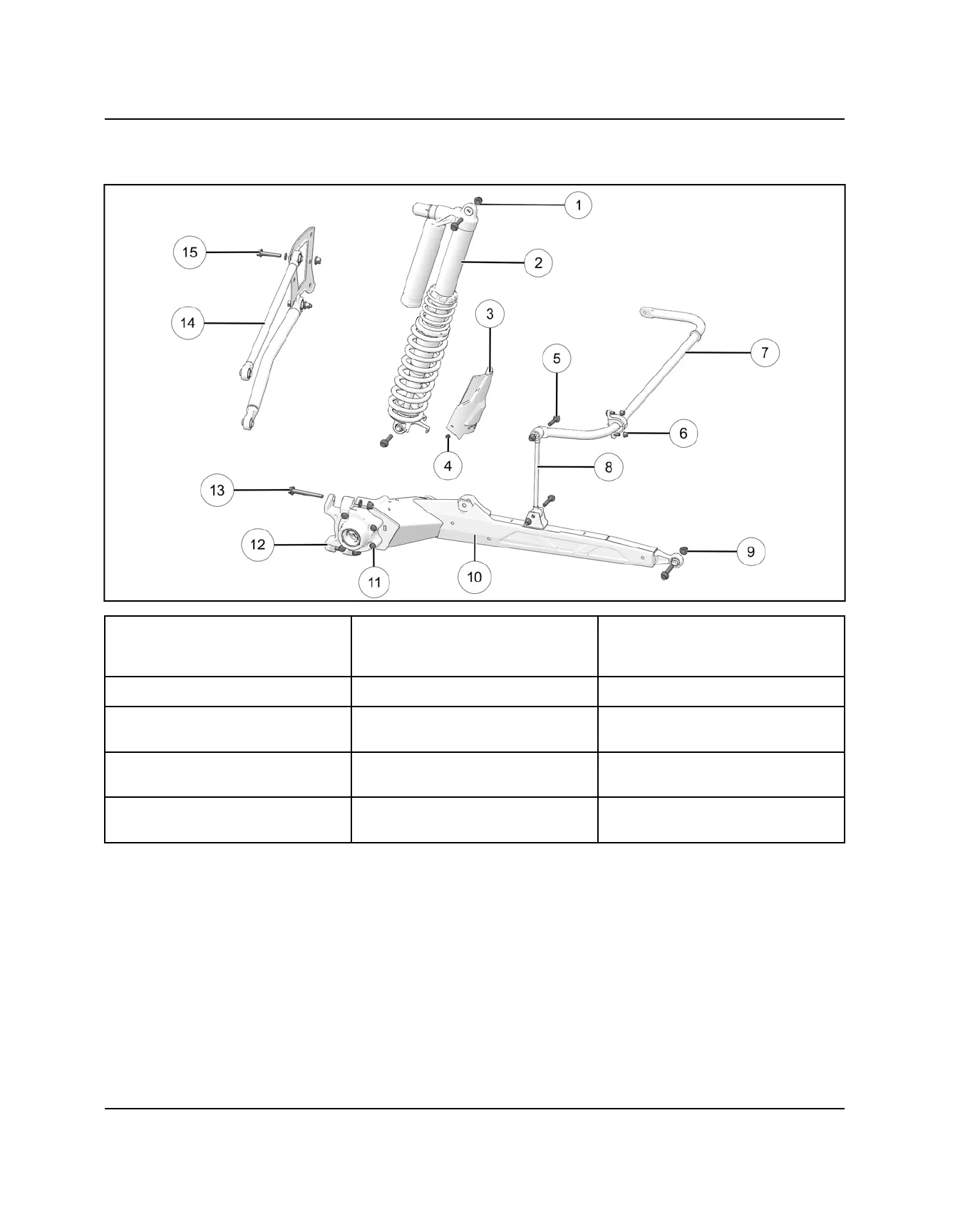

REAR SUSPENSION ASSEMBLY VIEW
q
Shock Mounting Fasteners
74 ft-lbs (100 Nm)
y
Stabilizer Bar Mounting Bracket
Fasteners
30 ft-lbs (40 Nm)
s
Bearing Carrier Fasteners
44 ft-lbs (60 Nm)
w
Rear Shock Assembly
u
Rear Stabilizer Bar
d
Bearing Carrier
e
Shock Guard
i
Stabilizer Bar Link
f
Outer Radius Rod Fasteners
52 ft-lbs (70 Nm) + 90°
r
Shock Guard Fasteners
30 ft-lbs (40 Nm)
o
Trailing Arm Mounting Fasteners
74 ft-lbs (100 Nm)
g
Radius Rod
t
Stabilizer Bar Link Fasteners
44 ft-lbs (60 Nm)
a
Trailing Arm
h
Inner Radius Rod Fasteners
52 ft-lbs (70 Nm) + 45°
