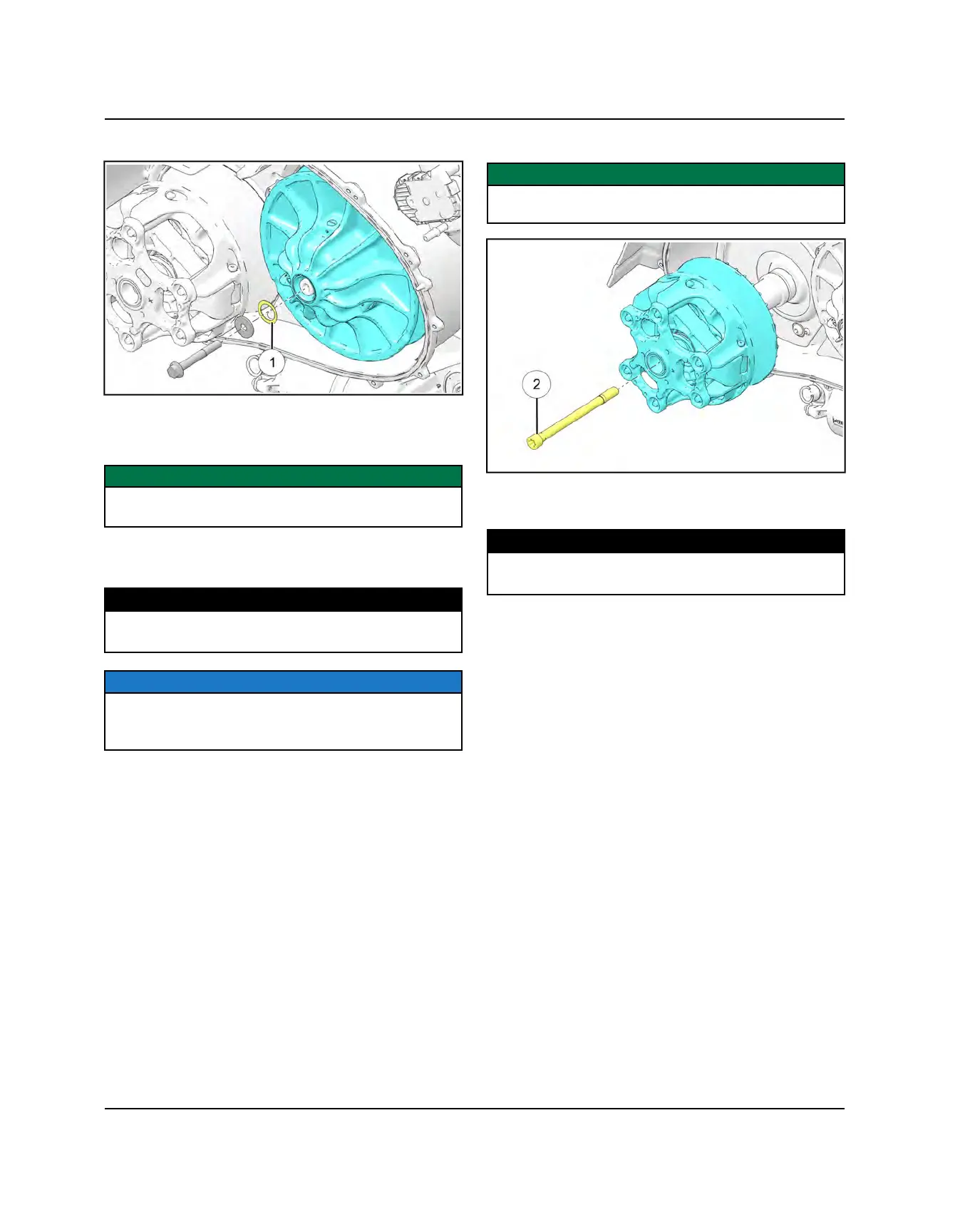

5. Remove the Driven Clutch Bolt and washer.
6. Add shims
q
to move the belt closer to the inner
sheave of the drive clutch, or remove shims to move
the belt closer to the outer sheave of the drive clutch.
IMPORTANT
Ensure the driven clutch splines and transmission
splines and shaft are clean and free of debris.
7. Reinstall the washers and Driven Clutch Bolt. Torque
to specification.
TORQUE
Driven Clutch Bolt:
26 ft-lbs (35 Nm)
NOTICE
When finished, the driven clutch should not rotate on its
own, or should stop with minimal drag when using a
new bearing.
8. Remove the drive clutch bolt
w
and drive clutch.
IMPORTANT
Ensure the drive clutch taper and engine taper are
clean and free of debris.
9. Reinstall the drive clutch and bolt. Torque the drive
clutch bolt to specification.
TORQUE
Drive Clutch Retaining Bolt:
140 ft-lbs (190 Nm)
10.Reinstall the drive belt and outer cover assembly.
