8.22
9850068 R01 - 2020-2021 RZR PRO XP / XP 4 Service Manual
© Copyright Polaris Industries Inc.

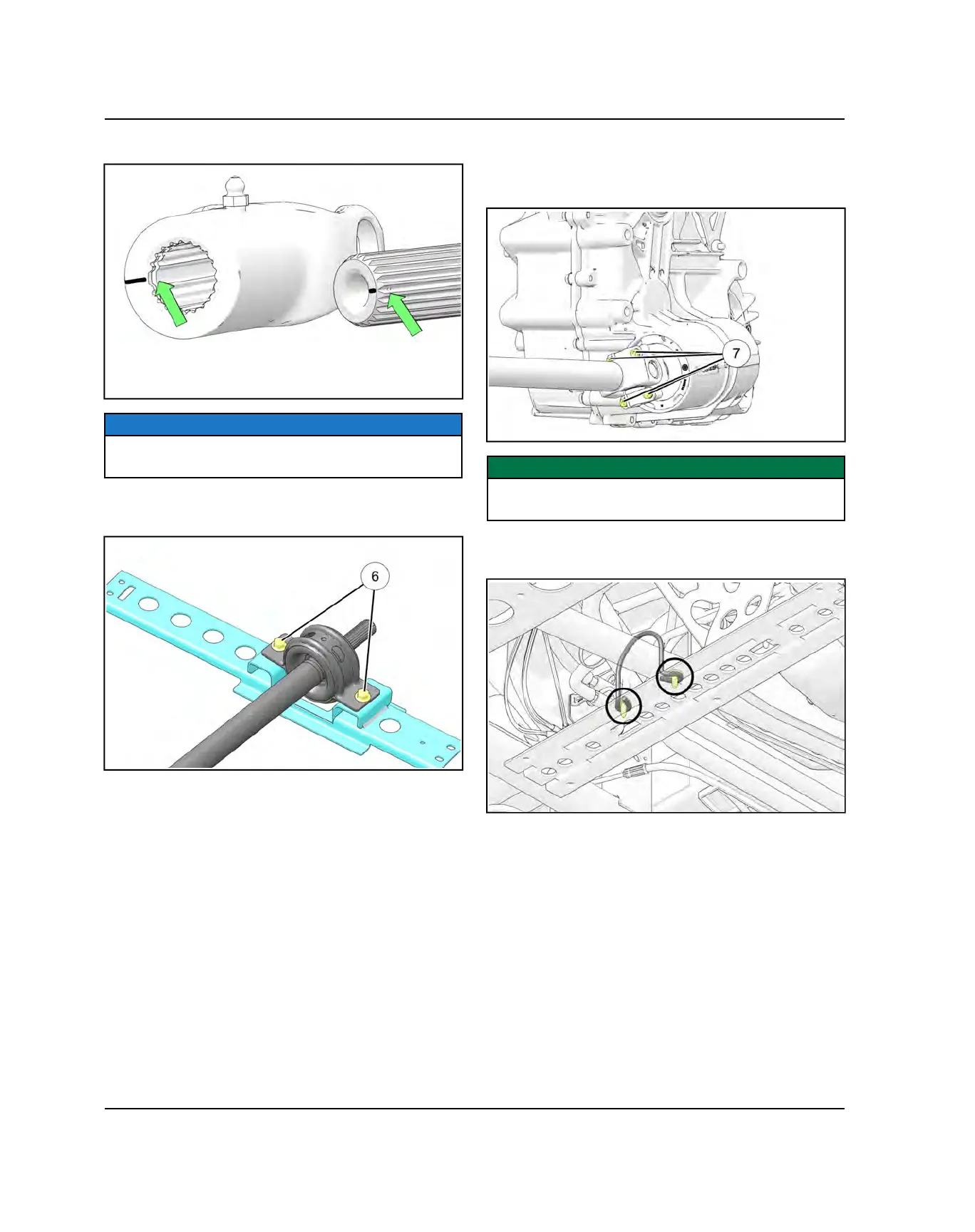

7. Mark the front and rear prop shaft for reassembly.
NOTICE
The prop shafts have a master spline and will only go
on one way.
8. Remove two fasteners
y
retaining prop shaft bearing
to the mounting plate.
9. Remove the four fasteners
y
retaining the rear prop
shaft to the transmission coupler. Discard the
fasteners. Move the prop shaft off the coupler
towards the outside of the vehicle.
IMPORTANT
The coupler fasteners have patch lock on the threads
and must be replaced any time they are removed.
10.Remove the two fasteners retaining roll hoop to the
frame. Remove roll hoop.
FINAL DRIVE
