9850068 R01 - 2020-2021 RZR PRO XP / XP 4 Service Manual
© Copyright Polaris Industries Inc.
12.13

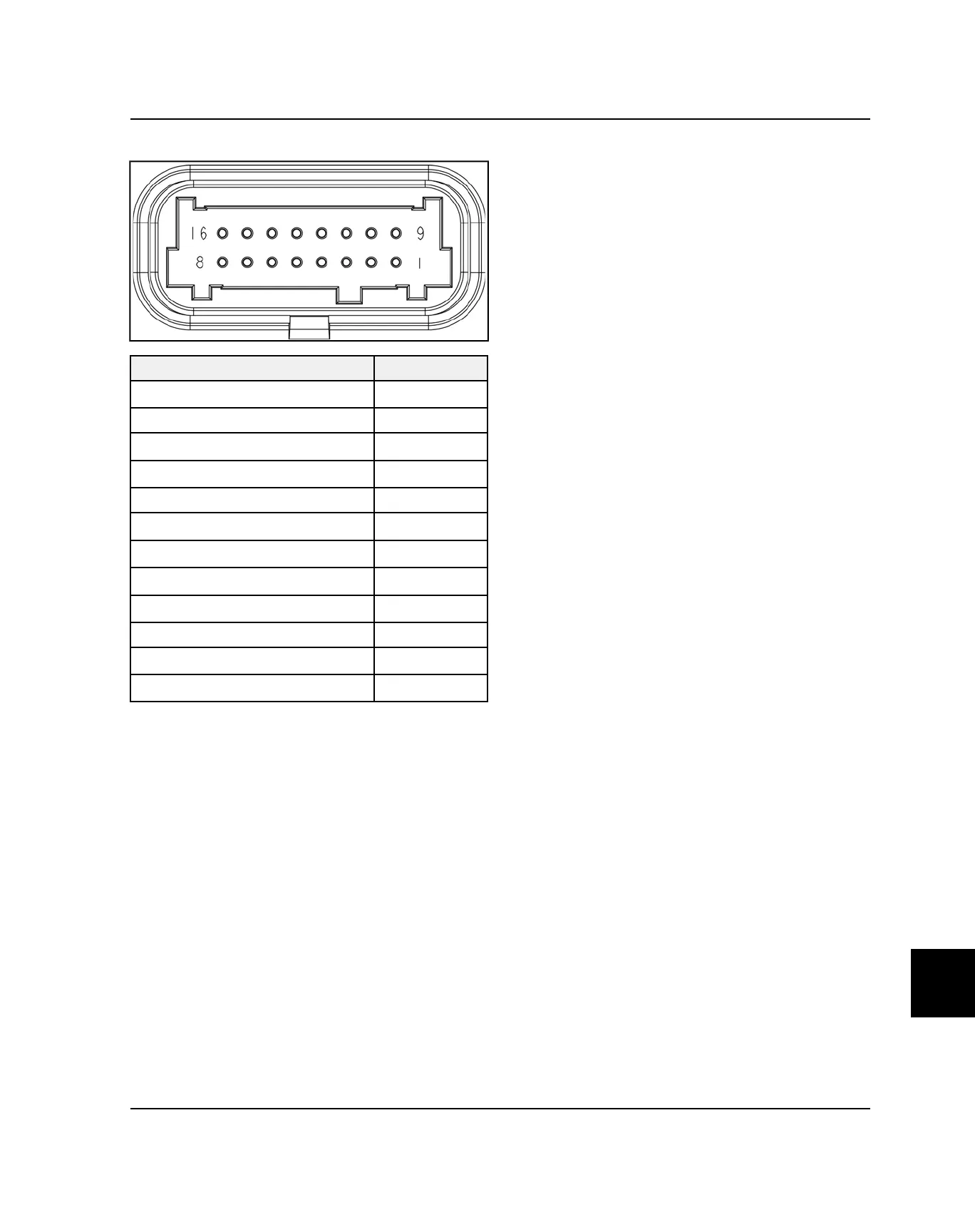

INSTRUMENT CLUSTER PINOUTS
FUNCTION PIN
CAN High
1
CAN Low 2
Switched Power (Vdc)
3
Constant Power (Vdc)
4
Ground
5
Left Turn Signal Input
6
Right Turn Signal Input
7
High Beam Input
8
Trailer Turn Sign Input
10
Fuel Level Sensor 11
Blackout Mode Input
12
Accy Air Temp Input
15
ELECTRICAL
