Polaris RZR S 900 2016 - Drive Clutch Assembly View; Drive Clutch Service

5
9926814 R08 - 2015-2016 RZR 900 2016 RZR S 1000 Service
Manual
© Copyright Polaris Industries Inc.
5.15
DRIVE CLUTCH SERVICE

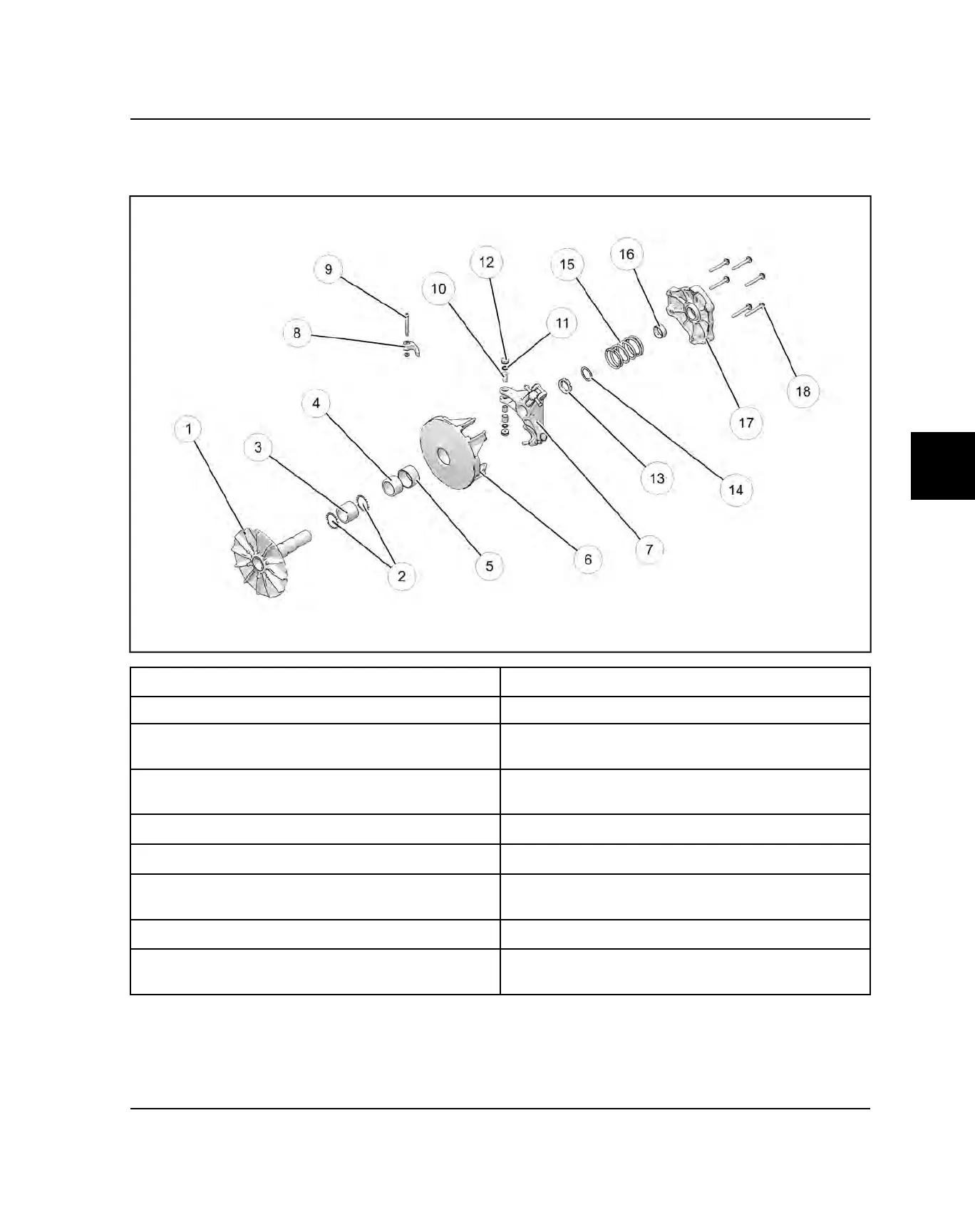

DRIVE CLUTCH ASSEMBLY VIEW
q
Stationary Sheave
a
Pin
w
Washers
s
Washer
e
Needle Bearing (non-EBS models)
One Way Clutch (EBS models)
d
Button
r
Spacer
f
Jam Nut
250 ft-lb (339 Nm) (Apply 0.1 mL Loctite® 620™)
t
Bushing
g
Limiter Spacer
y
Moveable Sheave h
Clutch Spring
u
Spider
290 ft-lb (393 Nm) (Apply 0.4 mL Loctite® 620™)
j
Cover Bushing
i
Shift Weight
k
Cover
o
Bolt
20 in-lb (2 Nm)
l
Cover Bolt
8 ft-lb (11 Nm)
PVT SYSTEM
