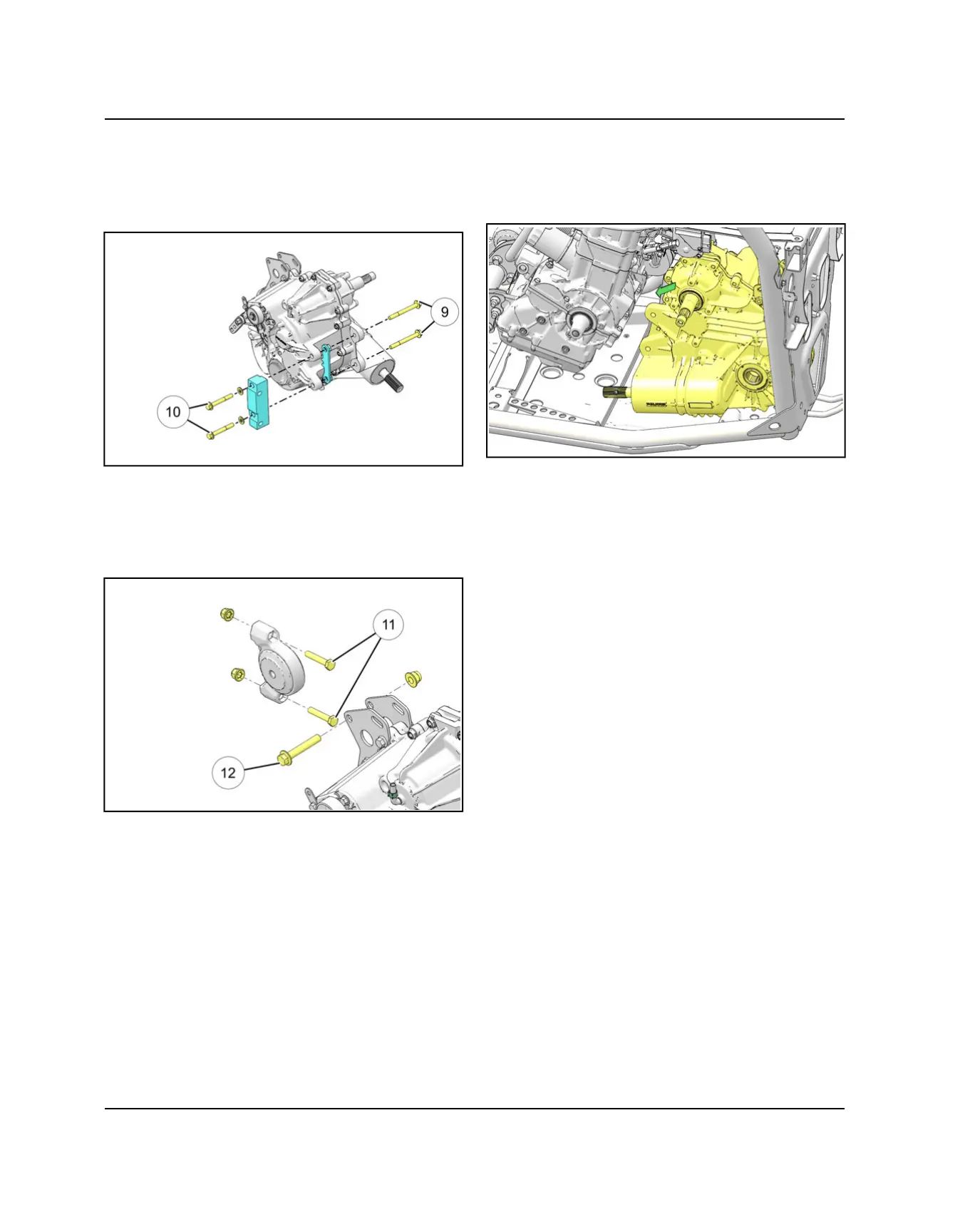

14.Remove the fasteners retaining the intake manifold
lower mount to the transmission rear mounting
bracket.
15.Remove the four bolts from the left side
o
and right
side
a
, securing the transmission to the engine.
16.Remove the two fasteners
s
attaching the rear
transmission mount bracket assembly to the frame.
Remove the fasteners
d
that attach the rear mount
to the transmission. Remove the mount assembly
from the vehicle.
17.Slide transmission towards the rear of the vehicle. Lift
and rotate the top of the transmission towards the left
side of the vehicle. With the help of an assistant,
remove transmission from the left rear wheel well
area.
