Polaris RZR XP 1000 2015 Service Manual

11
9926816 R07 - 2014-2016 RZR XP 1000 / XP4 1000 Service Manual
© Copyright Polaris Industries Inc.
11.29
Refer to Chapter 3 and 10 for additional ECT sensor
information. Polaris dealers can test the sensor by using
Digital Wrench® Diagnostic Software (dealer only).
TEMPERATURE °F (°C)
RESISTANCE
68 °F (20 °C)
2.5 k Ω ± 6%
86 °F (30 °C)
1.7 k Ω ± 6%
104 °F (40 °C)
1.2 k Ω ± 6%
122 °F (50 °C)
834 Ω ± 6%
140 °F (60 °C)
596 Ω ± 6%
158 °F (70 °C)
435 Ω ± 6%
176 °F (80 °C)
323 Ω ± 6%
194 °F (90 °C)
243 Ω ± 6%
212 °F (100 °C)
186 Ω ± 6%

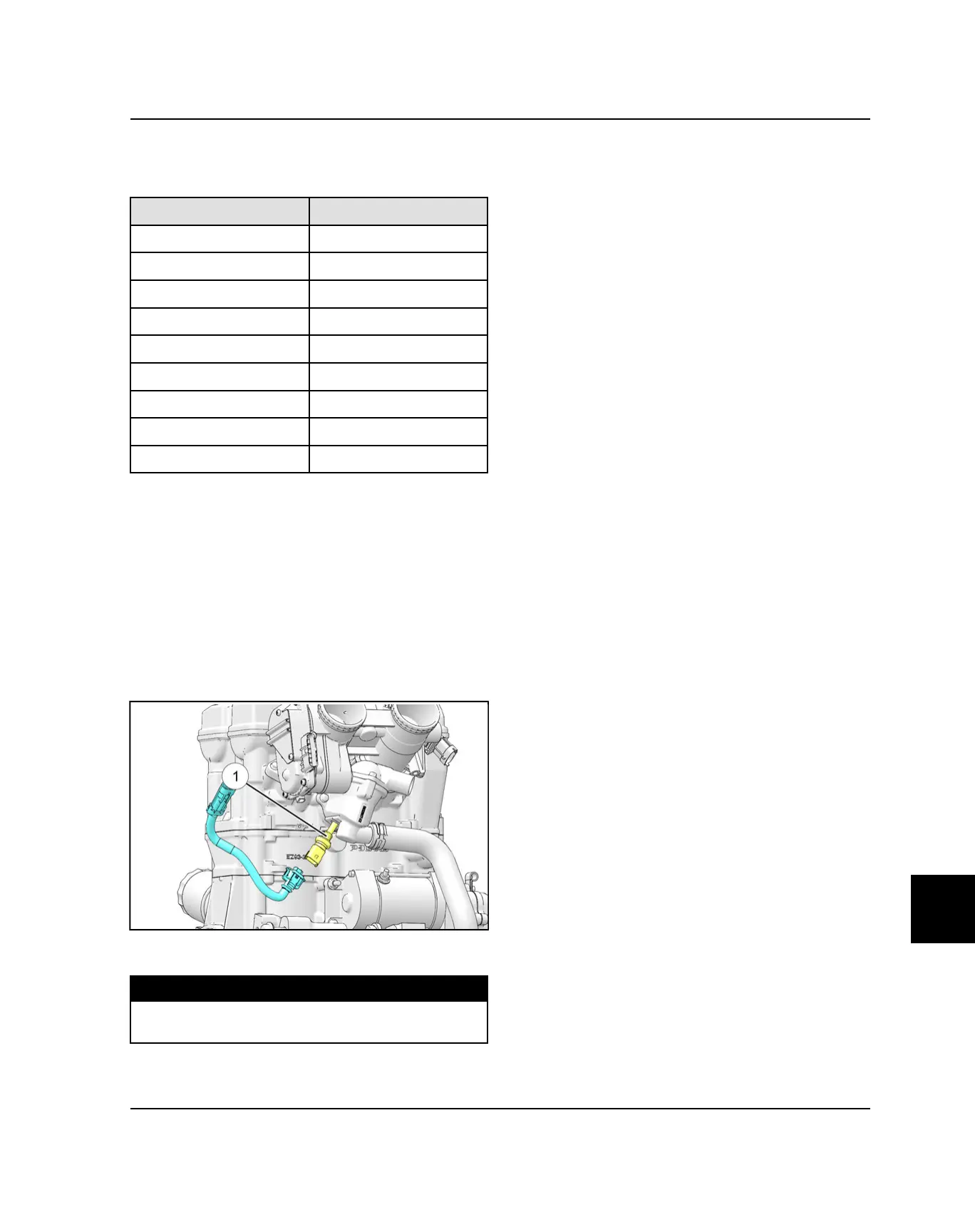

ECT SENSOR REPLACEMENT
1. Remove the throttle body. (see Chapter 4 – Throttle
Body Removal, page 4.34).
2. Be sure the engine has cooled enough to work on.
3. Disconnect the vehicle harness from ECT sensor.
4. Drain the coolant so the level is below the sensor
(see Chapter 2 – Coolant Drain / Fill, page 2.18).
5. Using a wrench, remove and replace the sensor,
applying a light coating of thread sealant to the
sensor threads
q
to aid installation.
6. Torque the new ECT sensor to specification and
connect the vehicle harness to the sensor.
TORQUE
ECT Sensor:
17 ft-lb (23 Nm)
7. Reinstall the throttle body.
8. Add the required amount of coolant and bleed the
system (see Chapter 3 – Cooling System Bleeding
Procedure, page 3.20).
