9926816 R07 - 2014-2016 RZR XP 1000 / XP4 1000 Service Manual

6.13

8. Remove the spacer

9. Remove the shift shaft

, detent pawl

and the shift

sector gears

and

NOTE

Note the timing marks on the shift gears for reassembly

purposes.

10.Remove the O-rings

from each shaft and discard.

Use new O-rings upon assembly.

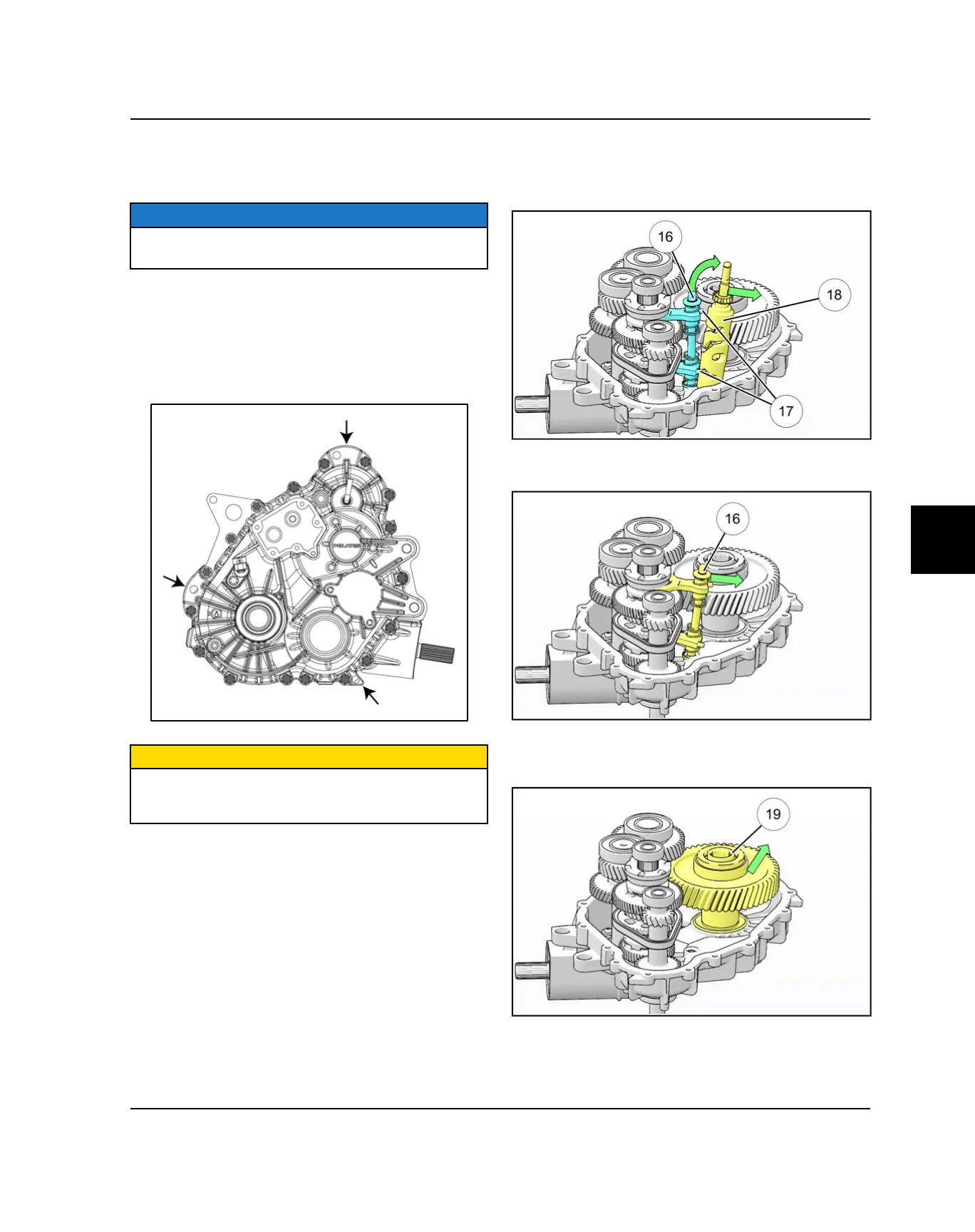

11. Remove all the transmission case bolts. Using suit-

able pry bars, remove the cover using the designated

pry points (indicated by the black arrows in the illus-

tration below).

CAUTION

Do not pry on case sealing surfaces.

Use only the designated pry points on the

transmission.

12.Lift up on the shift shaft rail

and move the rail

assembly rearward to allow the shift fork pins

to be

removed from the shift drum

. Remove the shift

drum from the transmission housing.

13.Remove the shift shaft rail

and shift forks from the

transmission housing as an assembly.

14.Remove the rear output shaft assembly

1 (

by lifting

underneath the gear or by tapping the shaft from the

opposite side.

TRANSMISSION
