Polaris RZR XP 1000 2015 Service Manual

6
9926816 R07 - 2014-2016 RZR XP 1000 / XP4 1000 Service Manual
© Copyright Polaris Industries Inc.
6.27

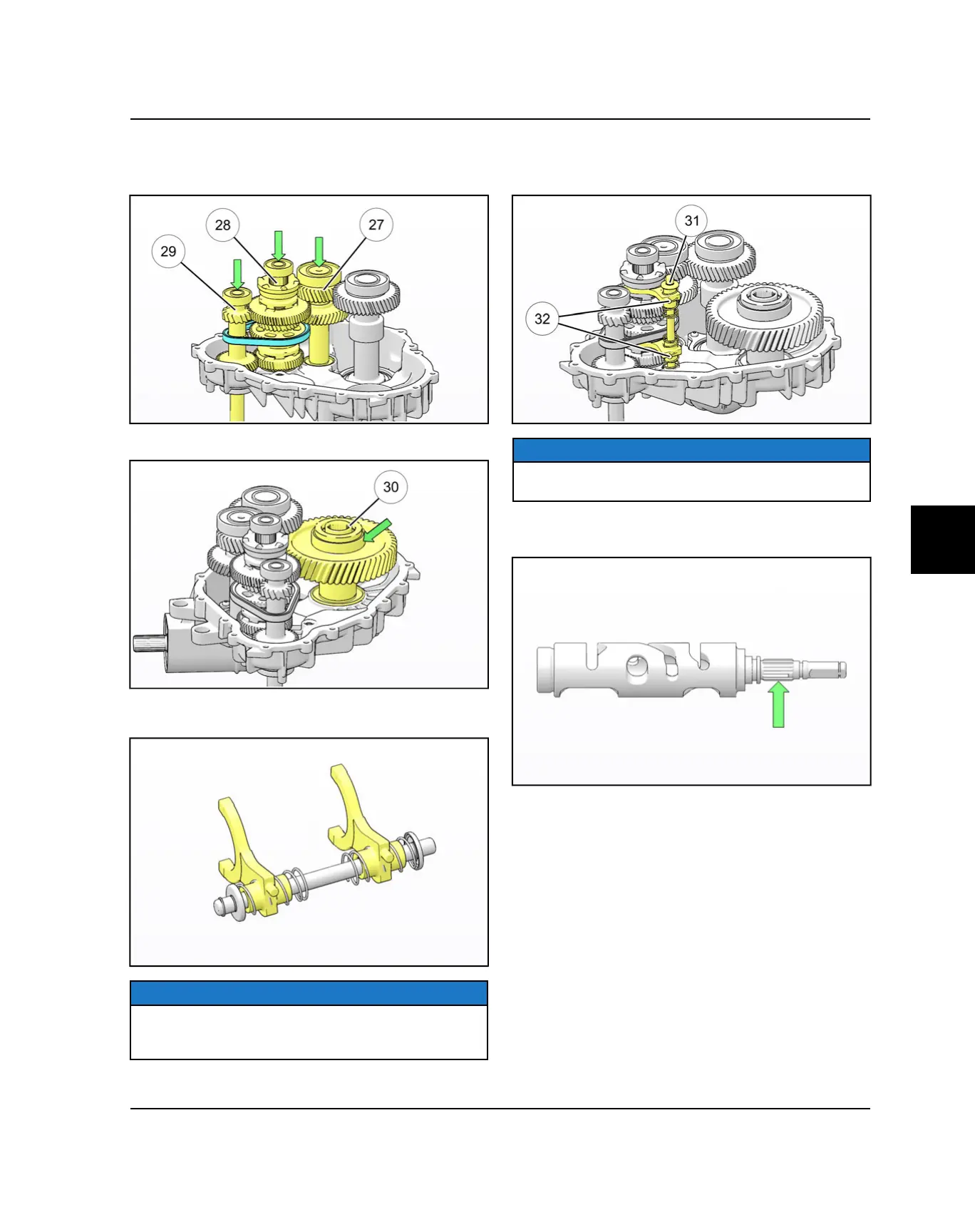

17.Install the idler gear shaft assembly
2&
, gear cluster
assembly
2*
, and input shaft assembly
2 (
into the
transmission housing, all at the same time.
18.Install the rear output shaft assembly
3)
.
19.Assemble the shift shaft rail if previously
disassembled.
NOTE
Both shift forks need to be orientated the same way, so
that the shift fork pins are both offset to the same side
of the rail.
20.Install the shift shaft rail
3!
and shift forks into the
transmission housing as an assembly. Be sure the
shift forks are engaged into the engagement dogs.
NOTE
Shift fork pins should be offset towards the input shaft
as shown above
3@
.
21.Inspect the shift drum for any damage or wear.
Inspect the splines of the shift drum.
TRANSMISSION
