TRANSMISSION (MAIN GEARCASE)
Always check and change the fluid at the intervals outlined in the Periodic
Maintenance Chart section. Refer to the Gearcase Specifications Chart section
for recommended lubricants, capacities and torque specifications.
FLUID CHECK

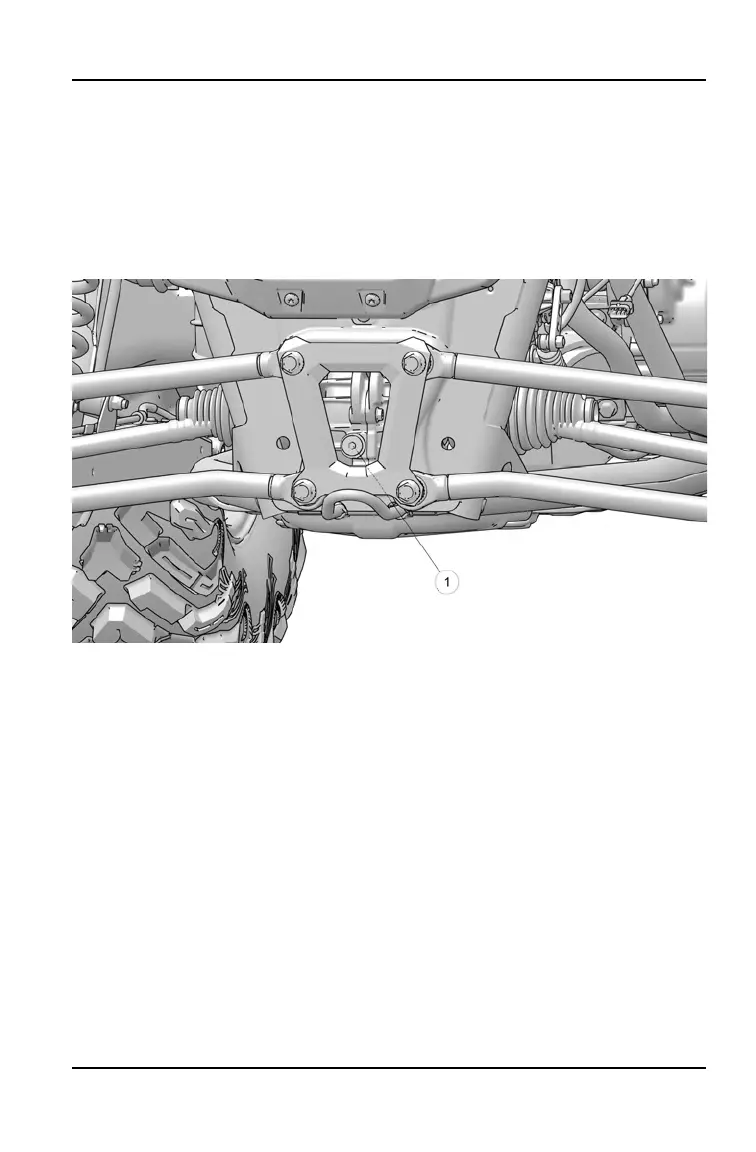

The fill plug
q
is located on the rear of the gearcase. Maintain the fluid level at
the bottom of the fill plug hole.
1. Position the vehicle on a level surface.
2. Remove the fill plug.
3. Check the fluid level.
4. Add the recommended fluid (listed in the Gearcase Specifications Chart
section of this manual) to the bottom of the fill plug hole. Do not overfill.
5. Reinstall the fill plug. Torque to specification (listed in the Gearcase
Specifications Chart).
FLUID CHANGE
The drain plug
q
is located on the bottom of the gearcase. Access the drain
plug through the drain hole in the skid plate.
117
MAINTENANCE
