FUSE / RELAY CENTER
If the engine stops or will not start, if the power steering stops working (if
equipped), or if you experience other electrical failures, a fuse may need
replacement. Locate and correct any short circuits that may have caused the
blown fuse, then replace the fuse. When replacing a fuse, it is important to use
the specified fuse size.

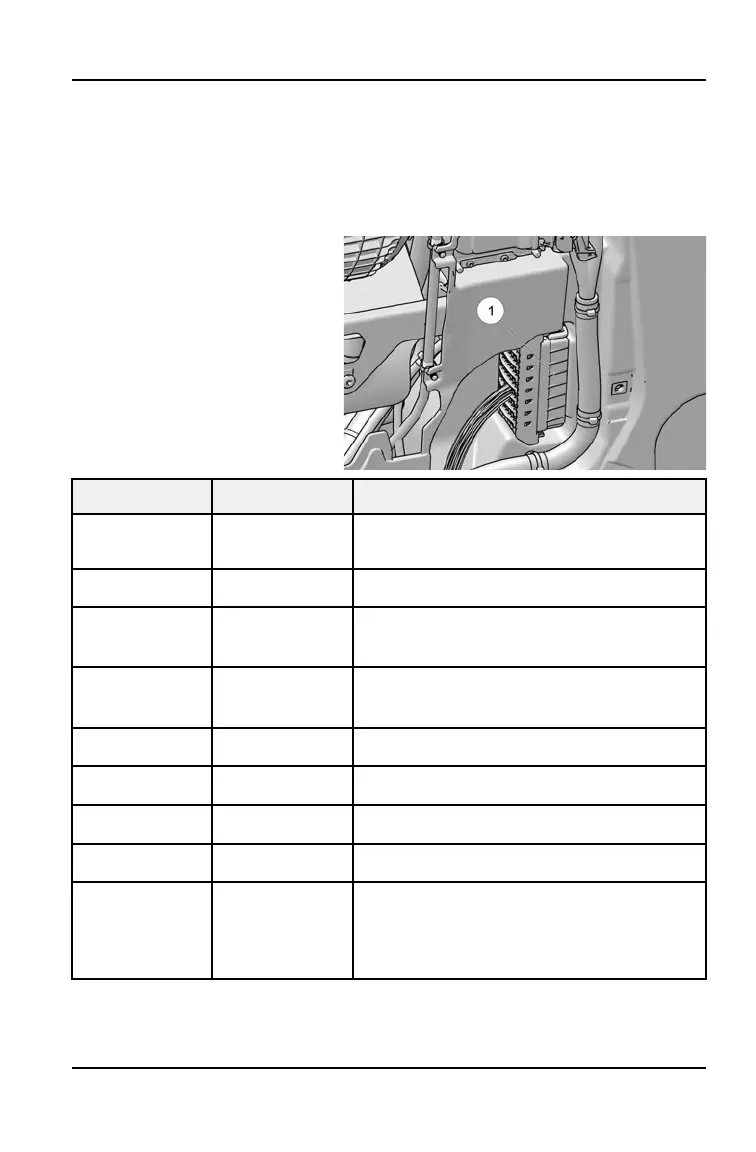

The fuse / relay center
q
is
located behind the driver’s seat.
It can be accessed by removing
the seats and the rear engine
access panel. See the Engine
Access Panel and Seat
Removal sections for details.
LABEL VALUE FUNCTION
FAN
20A Circuit
Breaker
Engine Coolant Fan
FUEL 10A Fuse
Fuel Pump
TERM 10A Fuse
Under Hood Terminal Block
RZR XP 4 vehicles: Rear 12V Receptacle
INSTR ACCY 5A Fuse
Interior LED, Gauge
RideCommand vehicles: Display
PWR PT1 10A Fuse
Dash 12V Receptacle
EPS 30A Fuse
Power Steering
INSTR UNSW 7.5A Fuse
Diagnostic Connector
LIGHTS 7.5A Fuse
Headlights, Taillights
CHASSIS 7.5A Fuse
AWD Switch, Oxygen Sensor Heater,
EPS Wake-Up, VSS, Seat Belt, AWD
Coil, Winch
EVAP vehicles: Waste Gate
125
MAINTENANCE
