HIGH BEAM ADJUSTMENT
The headlight beam can be adjusted slightly upward or downward. Use the
following procedure to make the adjustment.
NOTE

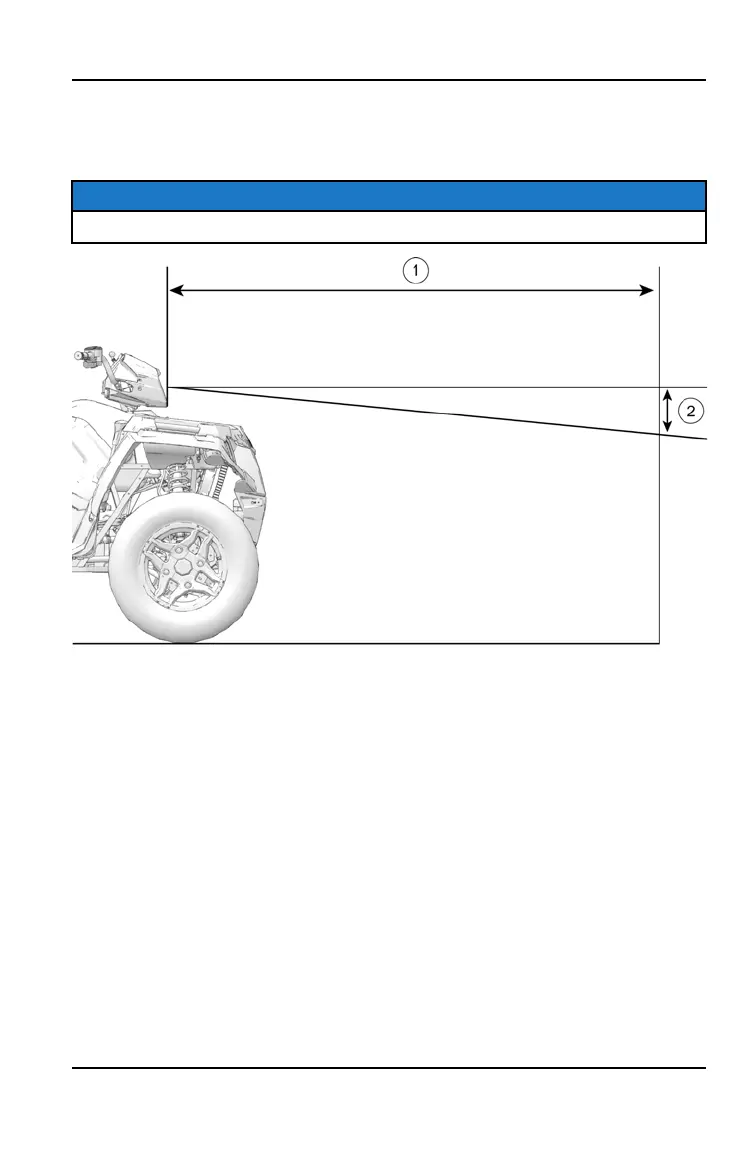

Image below is for reference only. Your model may differ slightly.
1. Position the vehicle on a level surface with the headlight approximately 25 ft.
(7.6 m) from a wall
q
. Place the transmission in PARK.
2. Measure the distance from the floor to the center of the headlight and make a
mark on the wall at the same height.
3. Start the engine. Turn the headlight switch to high beam.
4. Observe the headlight aim on the wall. The most intense part of the headlight
beam should be 2 in. (5 cm) below the mark on the wall
w
. Include rider
weight on the seat when measuring.
5. The adjustment screw is located on the right side of the headlight pod. To
adjust the beam, loosen the screw. Adjust the headlamp to the desired
position, then tighten the screw.
129
