LOW BEAM ADJUSTMENT
The low beam can be adjusted slightly upward or downward.
1. Loosen the Phillips® screw located at the rear of the headlamp.
2. Tilt the headlamp upward or downward.
3. Tighten the screw.
HEADLIGHT HOUSING REPLACEMENT
To replace the headlight housing, do the following:

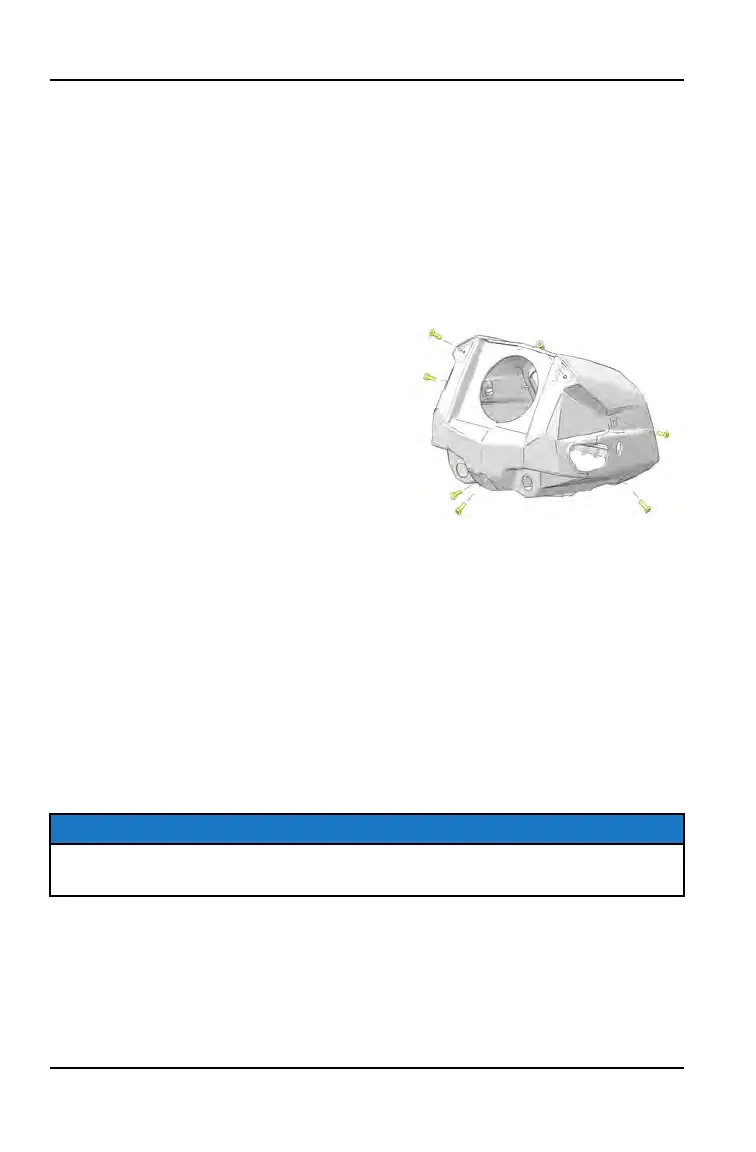

1. Remove the seven (7) headlight pod
screws.
2. Pull the pod cover forward.
3. Unplug the headlamp from the
wiring harness.
4. Use a small screwdriver to remove
the o-rings from the headlight
mounting tabs.
5. Pull the headlight housing up from
bracket for removal.
6. Reverse the steps to install the new
housing and reassemble the pod.
LOWER HEADLAMP REPLACEMENT
1. Turn the back of the headlight harness counter-clockwise and pull the
harness assembly away from the headlight assembly.
2. Remove the headlamp and install the new headlamp.
3. Reinstall the harness assembly into the headlight assembly.
NOTE
Take care to avoid touching the glass on the new headlight bulb. Fingerprints
on the glass may result in premature failure.
4. Turn the headlight harness clockwise to secure the headlamp.
130
MAINTENANCE
