116
MAINTENANCE AND LUBRICATION
Lights - Adjustment - Replacement
Headlight Lamp Replacement
1. Remove the three screws securing the headlight pod.
2. Using a small flat blade screwdriver, push in on the lock tab
through the two small openings at the front of the headlight pod.
3. Lift the pod lightly while depressing the tabs.
4. Lift pod cover up. Disconnect instrument cluster harnesses from
instrument cluster. Unplug indicator light harness and remove pod
cover.
5. Unplug headlamp from wiring harness.
6. Remove boot and locking collar from back of lamp housing.
7. Grasp base of lamp and lift it out.
8. Reverse previous steps to replace lamp and reassemble pod. Make
sure tab on lamp locates properly in housing.

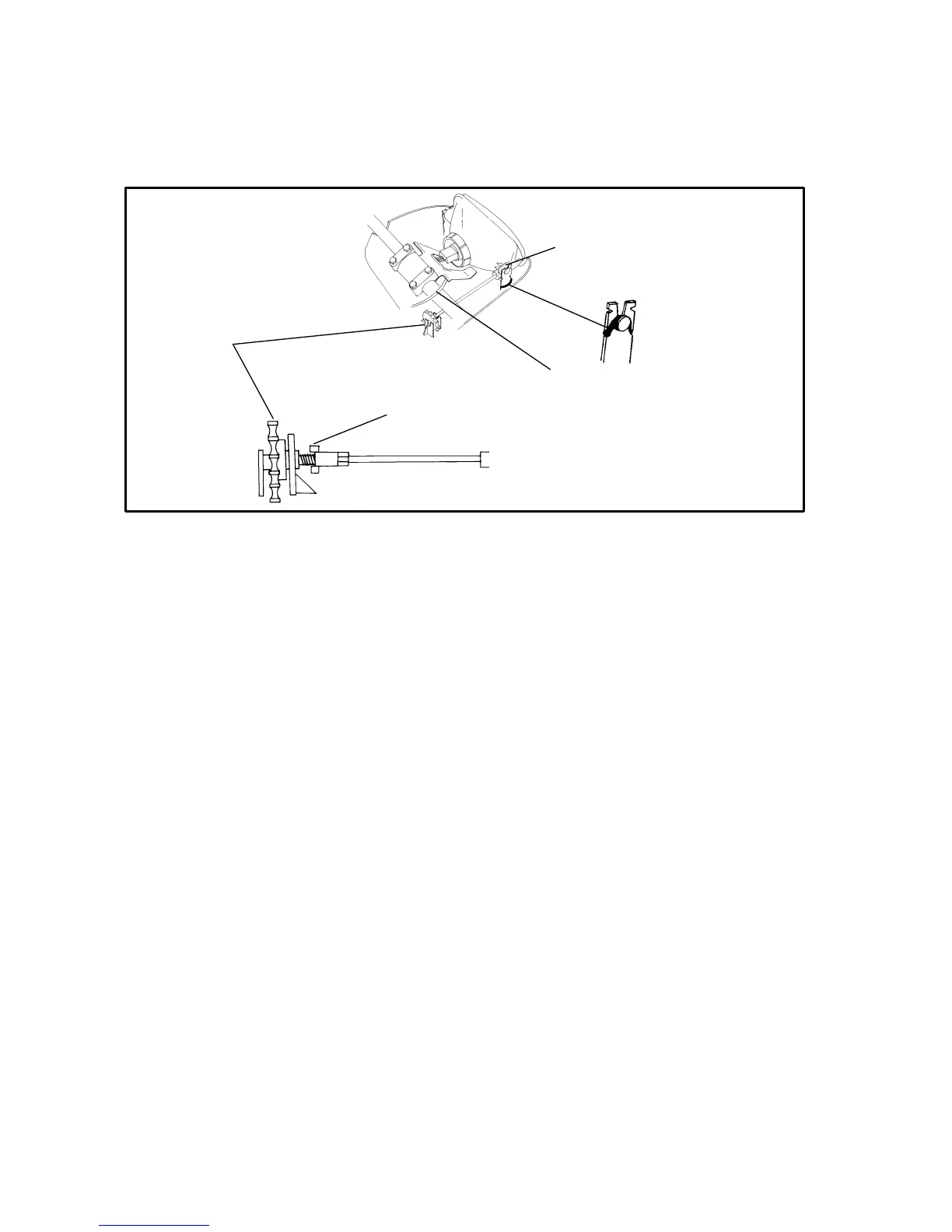

Snap pins
into tabs
Position
knob in
slot and
secure in
locking
tabs
Slip O-Ring
over pin
Adjustment
Knob Stop
Route indicator
harness over
handlebar
