130

MAINTENANCE AND LUBRICATION

Side Panel Removal

Side panel removal may be difficult until the locking tabs and receivers

have been snapped and unsnapped a few times.

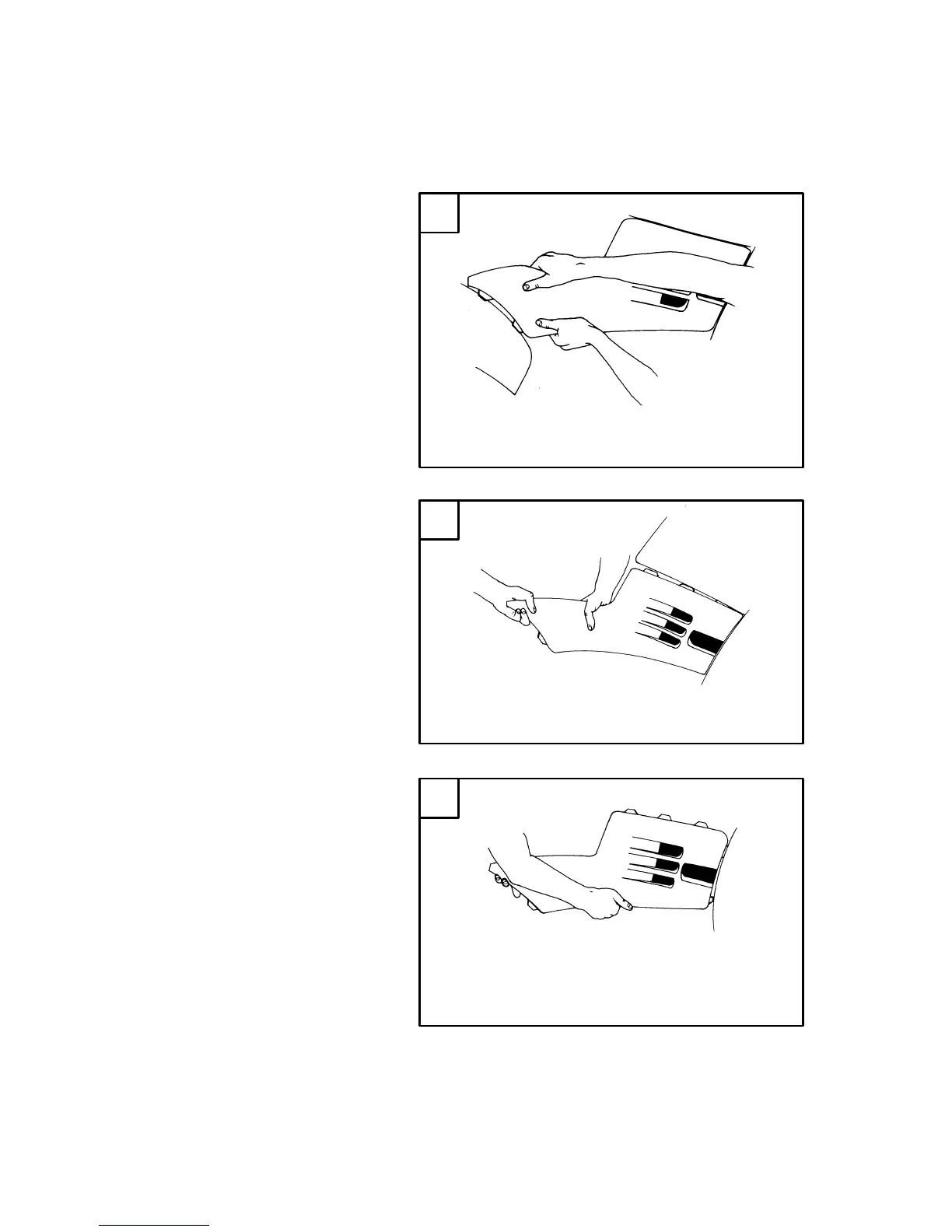

1. Remove seat. Grasp

rear of side panel near

rear cab. With a quick

and firm motion, pull

the panel forward and

outward to disengage

the two rear tabs.

2. Place hand on top of

side panel behind the

fuel tank. With a quick

and firm motion, push

down on the side panel

to disengage the top

rear two tabs. Then

pull up on side panel to

disengage front upper

and lower tab.

3. To reinstall side panel,

align panel tabs with

slots on front cab.

Push panel upward and

forward until tabs lock.

Bend rear of side panel

and insert the two tabs

into the rear cab.
