100
MAINTENANCE AND LUBRICATION
Lubrication
Rear Gearcase Lubrication

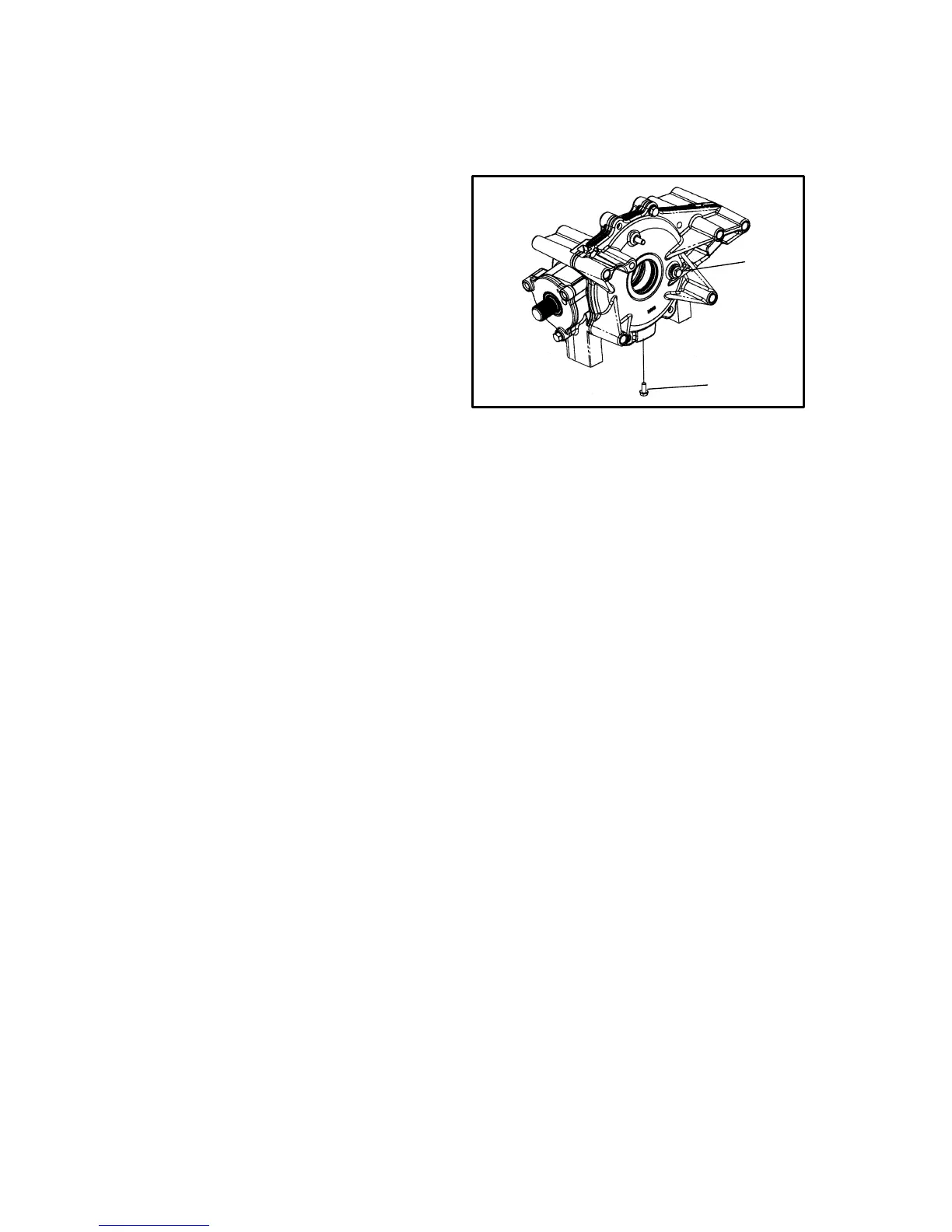

With the ATV on a level
surface, remove the fill plug and
visually inspect the lubricant
level through the fill hole (1).
The lubricant level should be
maintained 1 5/8 in. from the
top of the fill plug hole. Use
GL5 80-90 weight gear lube.
Gearcase Oil Changing Procedure
1. Remove drain plug (2). Catch and discard used oil properly.
2. Clean and reinstall the drain plug with a new sealing washer and
tighten securely (14 ft. lbs./1.93 kgm).
3. Remove fill plug and add 5 ounces (150 ml of GL5 80-90 weight
gear lube. Inspect the oil level. The oil level should be maintained
1 5/8 in. from the top of the fill plug hole.
4. Reinstall the fill plug. Tighten securely (14 ft. lbs/1.93 kgm).
5. Check for leaks.
1
2
