90
MAINTENANCE
Clutch System

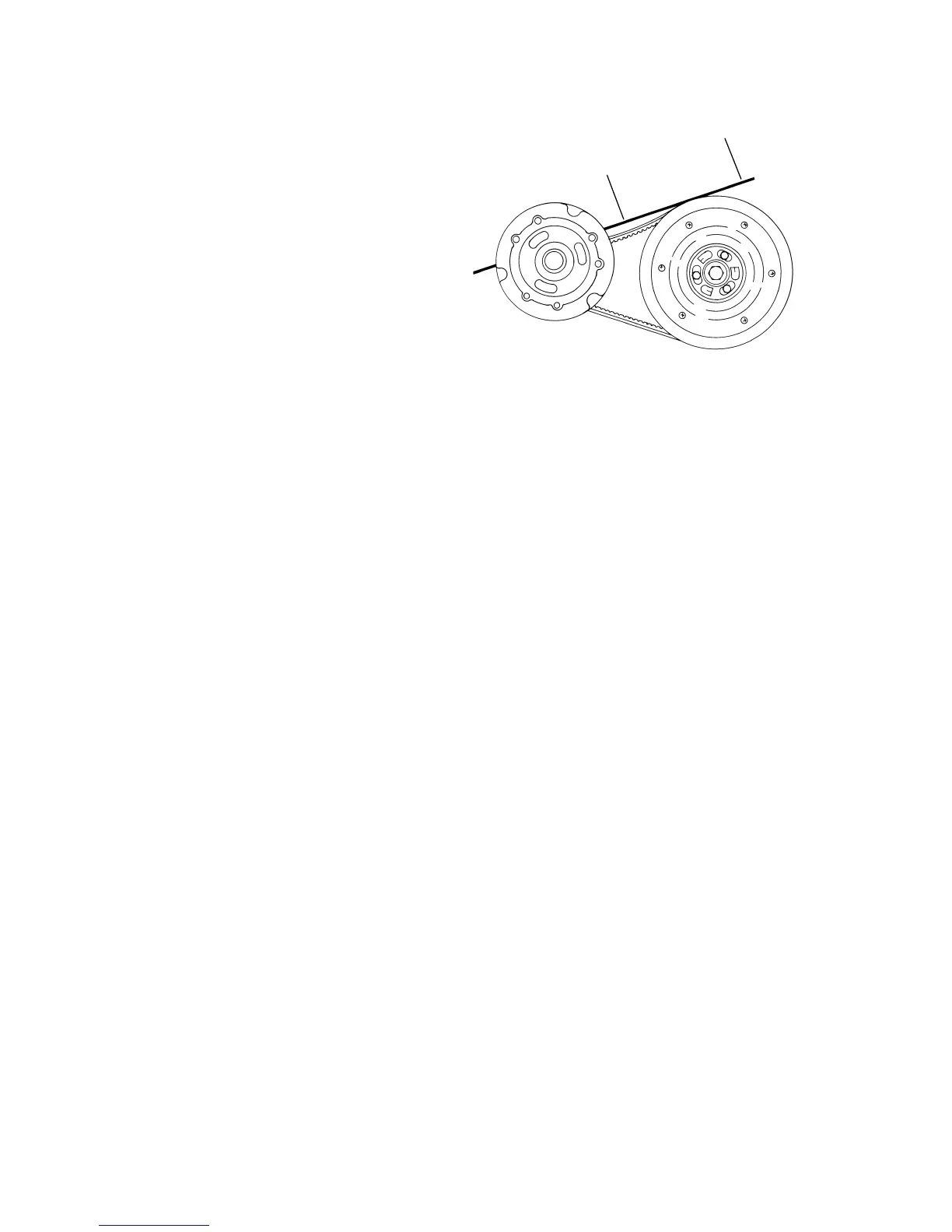

n Drive Belt Deflection
Measure belt deflection with
both clutches at rest and in
their full neutral position.
Place a straight edge on the
belt (1) and apply downward
pressure while measuring at
point 2. This measurement
should be 1 1/4 inches (32
mm).
Drive Belt Adjustment
Belt deflection should be adjusted without removing the clutch from the
jackshaft.
1. Loosen the 7/16-inch jam nut on the belt width adjuster.
2. Using a 1/8-inch Allen wrench, adjust the threaded set screw as
needed.
Tip: Turn the set screw in (clockwise) to increase the distance between the
sheaves and out (counterclockwise) to decrease the distance.
3. Tighten the jam nut.
