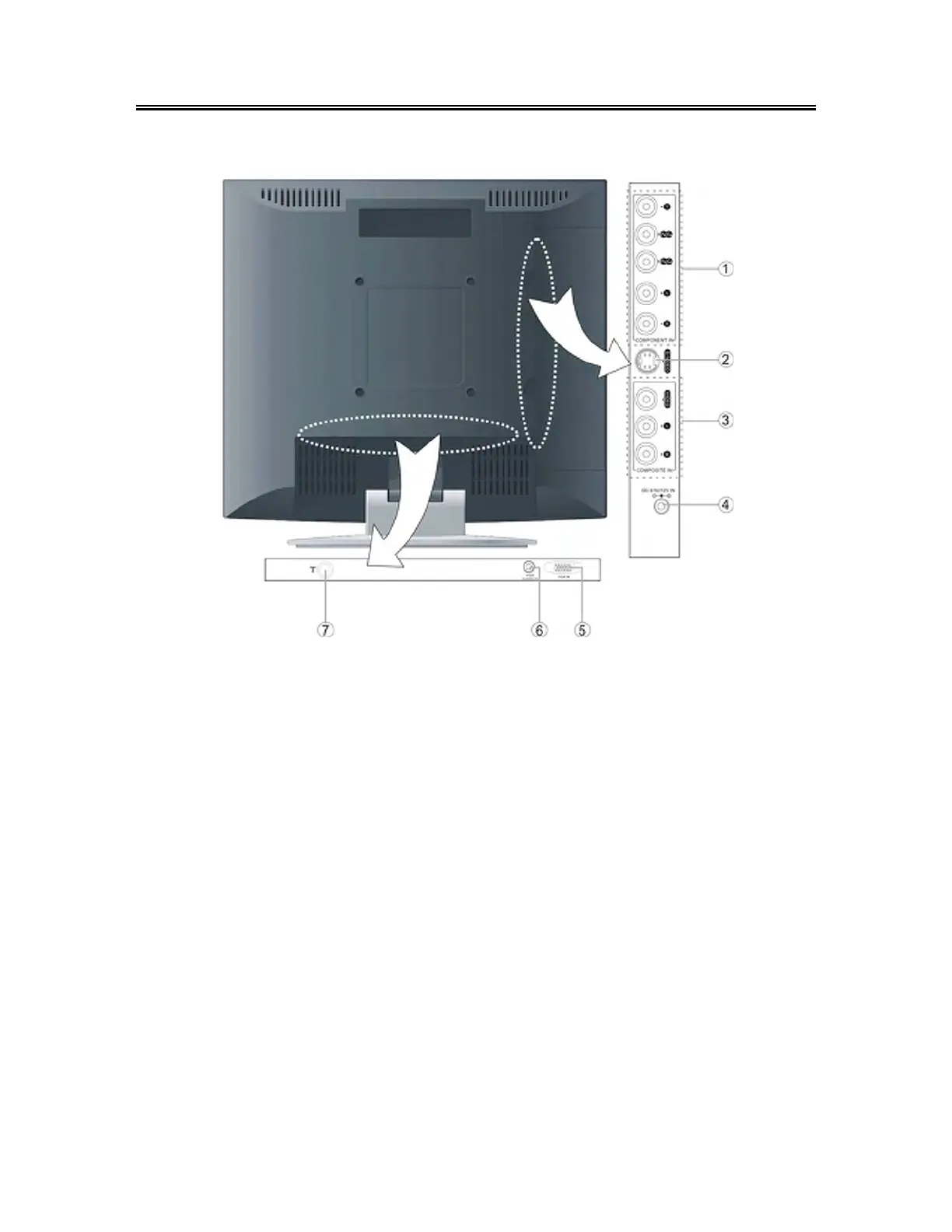

Rear Panel
1. Component Input / L/R Audio Input Jack
Connected to the Component (YPbPr) input
in Component mode.
Connected to the L/R audio input in
Component mode.
2. S-VIDEO Input Jacks
3. VIDEO/L/R Audio Input Jack
Connected to the VIDEO input in
Composite mode.
Connected to the L/R audio input in
Composite mode.
4. DC 9.5V/12V In Jack
Connected to power adapter.
5. VGA Input Jack
Connected to the VGA output jack on a
personal computer.
6. PC AUDIO Input Jack
Connected to the PC audio output jack.
7. TV Signal Input Jack
Connected for the external NTSC TV
signal input.
