17

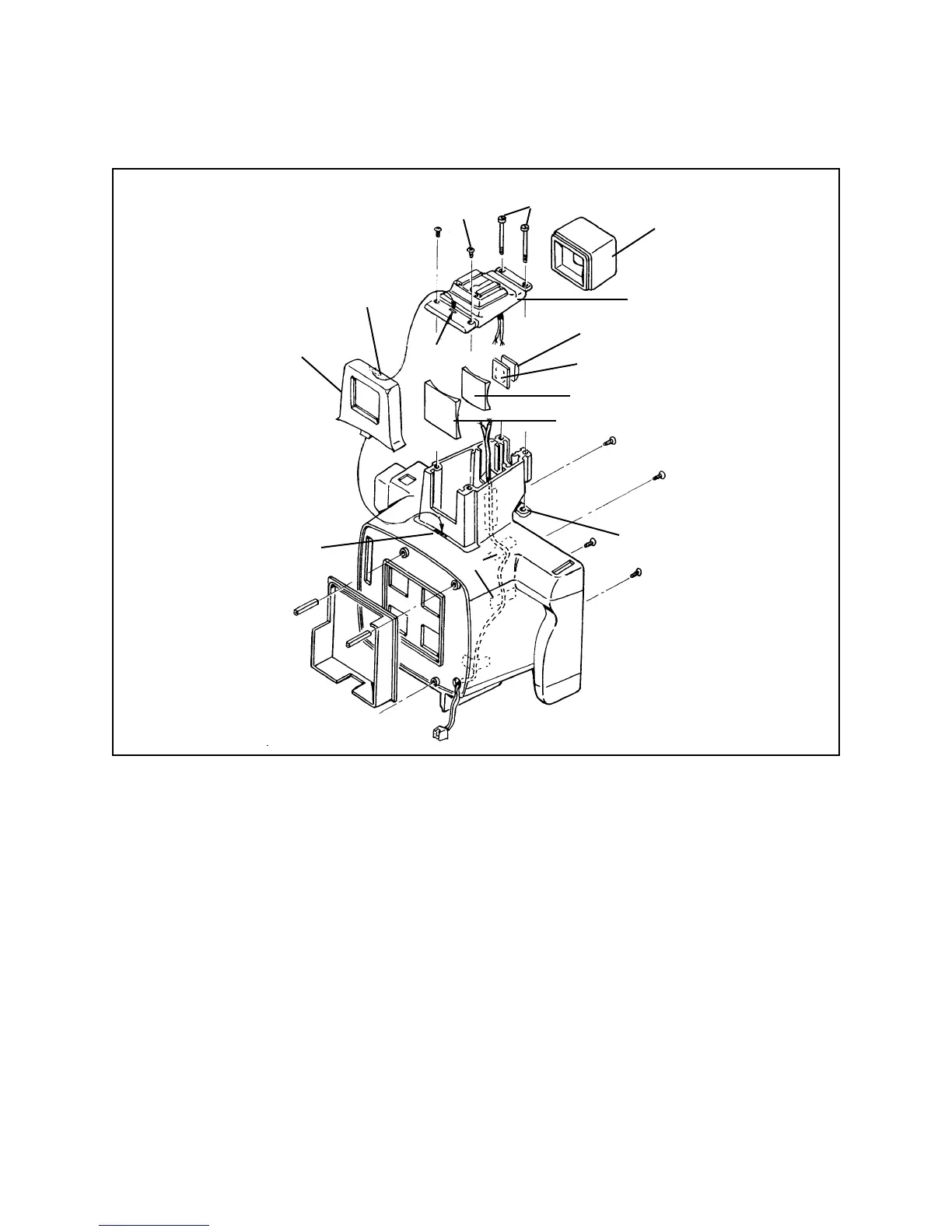

Figure 3-5. Removing Viewfinder Cover and Lenses
8. If the Hot Shoe or its electrical connections need servicing, disassemble the Hot
Shoe as follows: (Figure 3-6)
• Insert the tip of a very thin blade under the Plate Spring at the point shown by
the arrow, and lift slightly to release the front lip of the Plate Spring. Now slide
the Plate Spring out to the rear of the Hot Shoe.
• Remove the three screws C securing the Hot Shoe clip and base to the
Viewfinder Cover. (Screws are attached to the Nut Plate below the Cover.)
• Replacement of the wiring to the Hot Shoe can now be done, or the soldered
connections checked and repaired, if necessary.
Object Frame
Tab
Slot
Slot
Eyecup
Viewfinder Cover
Eyepiece Lens
Bright Frame
Object Lens 2
Object Lens 1
Nut Plate
Tape
B
A
To Next Page
