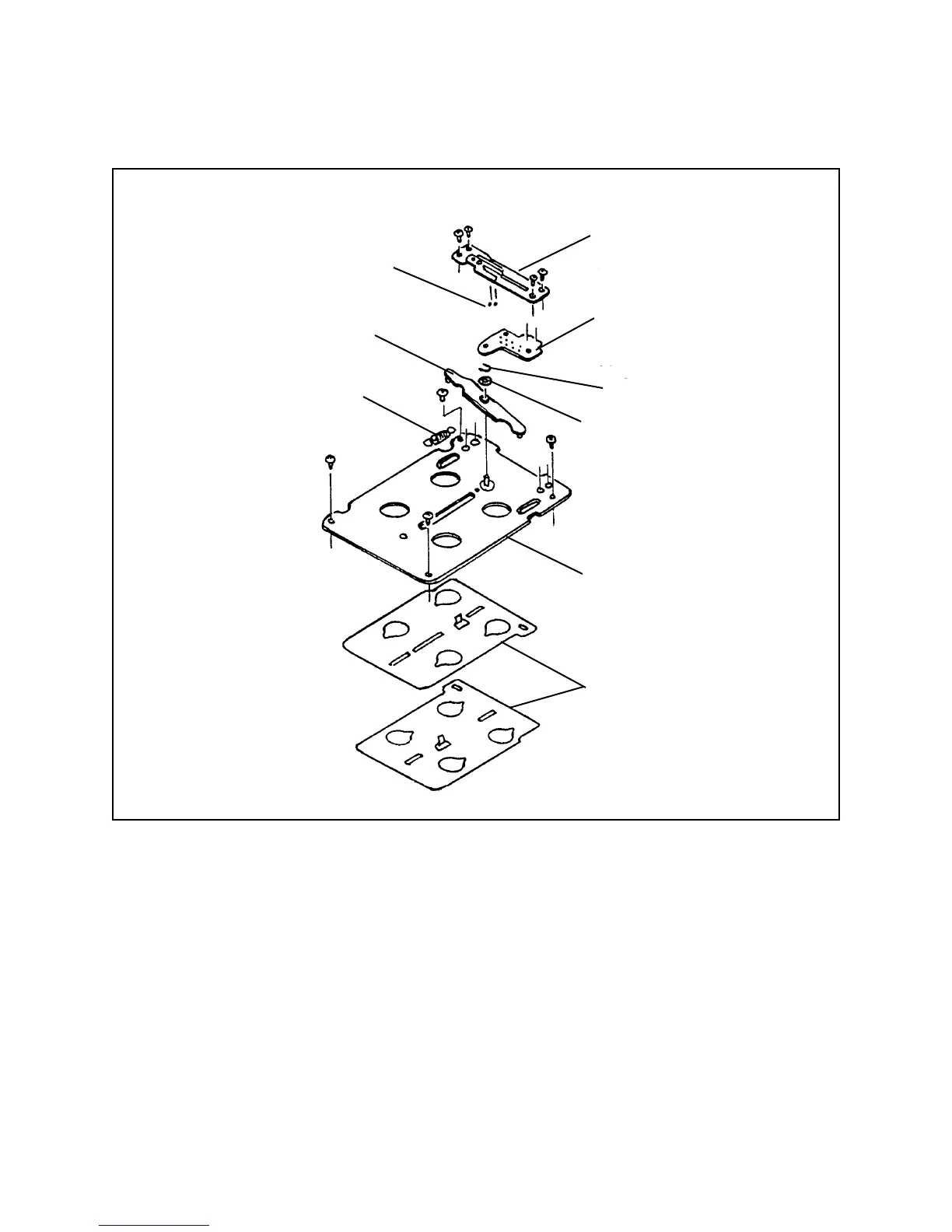

Figure 3-10. Aperture mechanism blade-actuating parts
Steel Balls
Guide Plate
Aperture Lever
Sub-Assy
Aperture Spring
Click Plates
Poly Slider
(Bearing)
Aperture Plate Sub-Assy
Aperture Blades
E-ring
