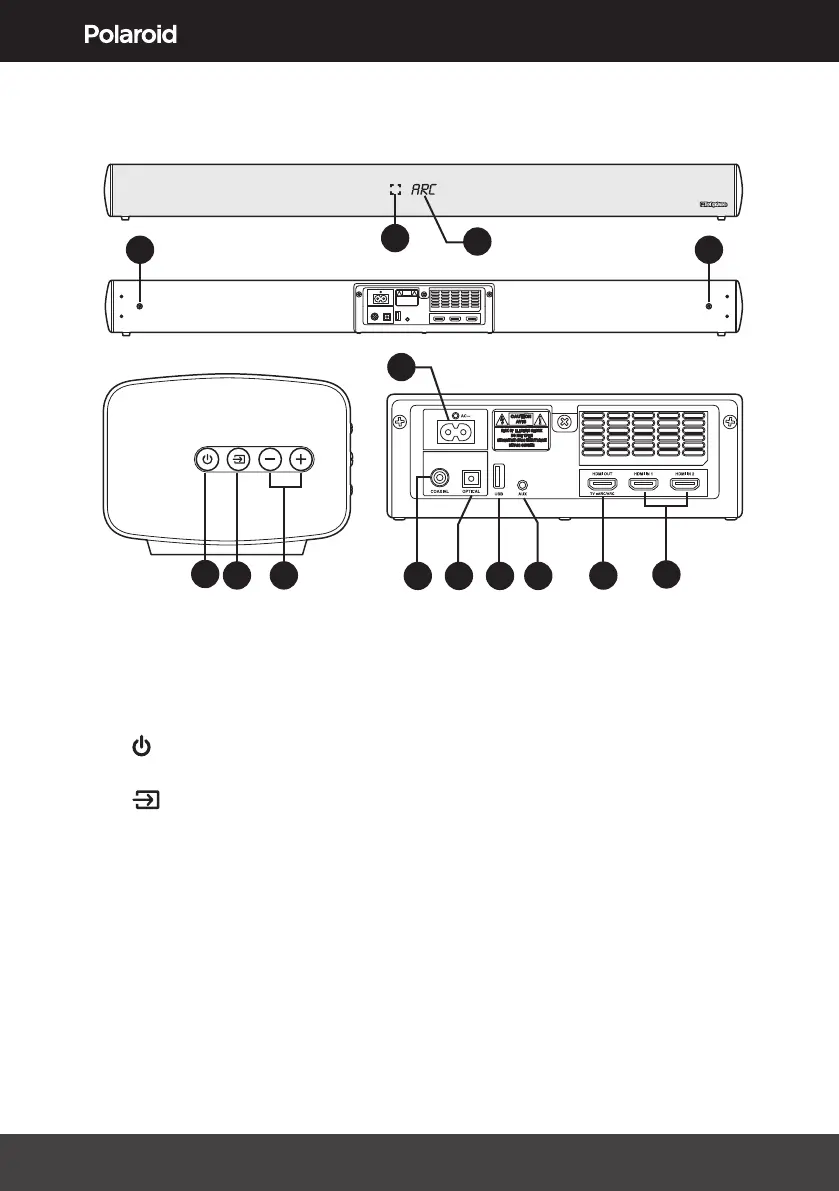

Your Sound Bar
1. Remote control sensor
2. Display: Shows the current
status of the sound bar.
3. Wall bracket screws.
4. button: Use to switch
between ON or STANDBY.
5. button: Use to select the
input source for the Sound Bar.
6. – Use to decrease the volume.
+ Use to increase the volume.
7. A C ~ socket.
8. COAXIAL: Use to connect the
sound bar to a COAXIAL OUT
socket on an external device.
9. OPTICAL socket: Use to
connect the sound bar to a
OPTICAL OUT socket on an
external device.
10. USB socket: Insert a USB
device to play music. It can also
be used to update the sound
bar's software functions.
11. AUX socket: Use to connect
to the AUX OUT/Headphone
sockets on an external device.
12. HDMI OUT (TV eARC/ARC)
socket: The port supports the
eARC/ARC HDMI feature, which
allows the sound bar to play
audio that originates on the
connected TV.
13. HDMI IN 1 / 2 sockets: Two
HDMI IN ports for connecting
HDMI source devices, such as a
DVD player, Blu-ray Disc player,
or gaming console. Note that
only one HDMI input is usable at
a time.
1
3 3
13
12
2
4
5 6
7
8 9
10 11
