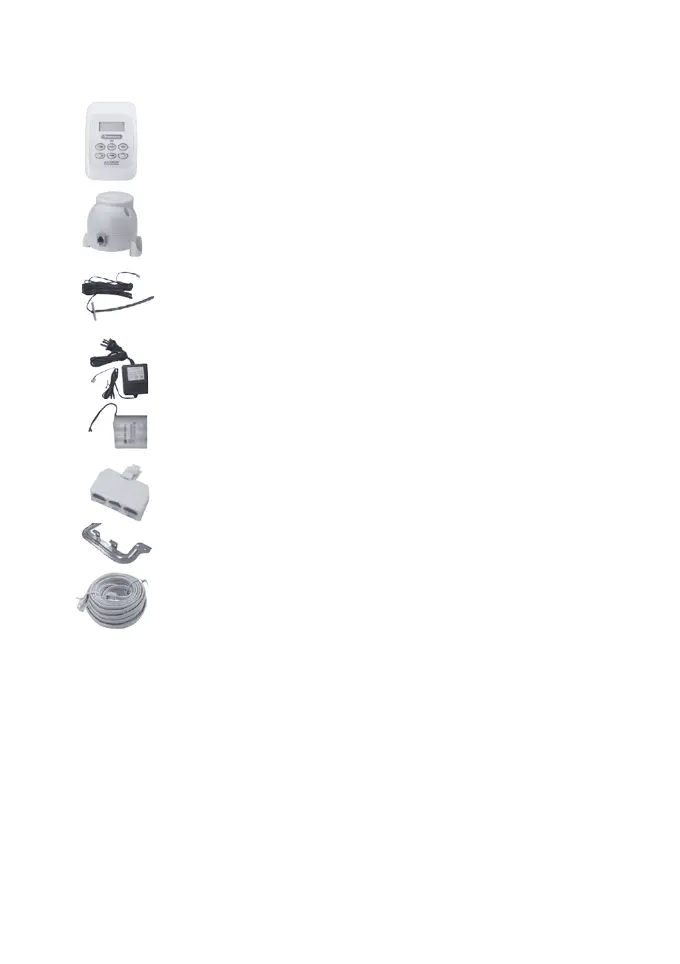

COMPONENTS
1) Touchpad
User can input control commands from the touchpad to turn a
zone on/off and set temperature. The LCD on the touchpad
displays clock, room temperature and zone status.
2) Damper Motor (Yellow)
Damper Motor drives the blade of the damper to modulate
the air from ducting to the zone.
3) Supply Air Sensor
Supply air sensor measures the temperature of the supply air
for cooling/ heating mode detection.
4) Power Supply
The 24VAC transformer provides power to the touchpad
and damper.
5) Battery
3.6 V rechargeable battery for real time clock backup.
6) Central Latch Triple Adaptor
Connects the touchpad to the damper motor and power supply
7) Mounting Bracket
8) Control Cable Premade 7m
