Polycom Vortex EF2280 Applications

BUILDING YOUR SYSTEM WITH MULTIPLE VOR-
© Polycom, Inc. 9 Vortex
®
Applications and Presets Guide
Connecting the
Vortex with Other
EchoFree Devices
If you are linking multiple Vortexes, you must use the EF bus to link the Vortexes to
each other. If you are linking a Vortex to other EchoFree devices, such as the EF200
Phone Add, for RS-232 control, use the ASPI bus. See Figure 4 below. The ASPI
Bus does not need to be terminated.

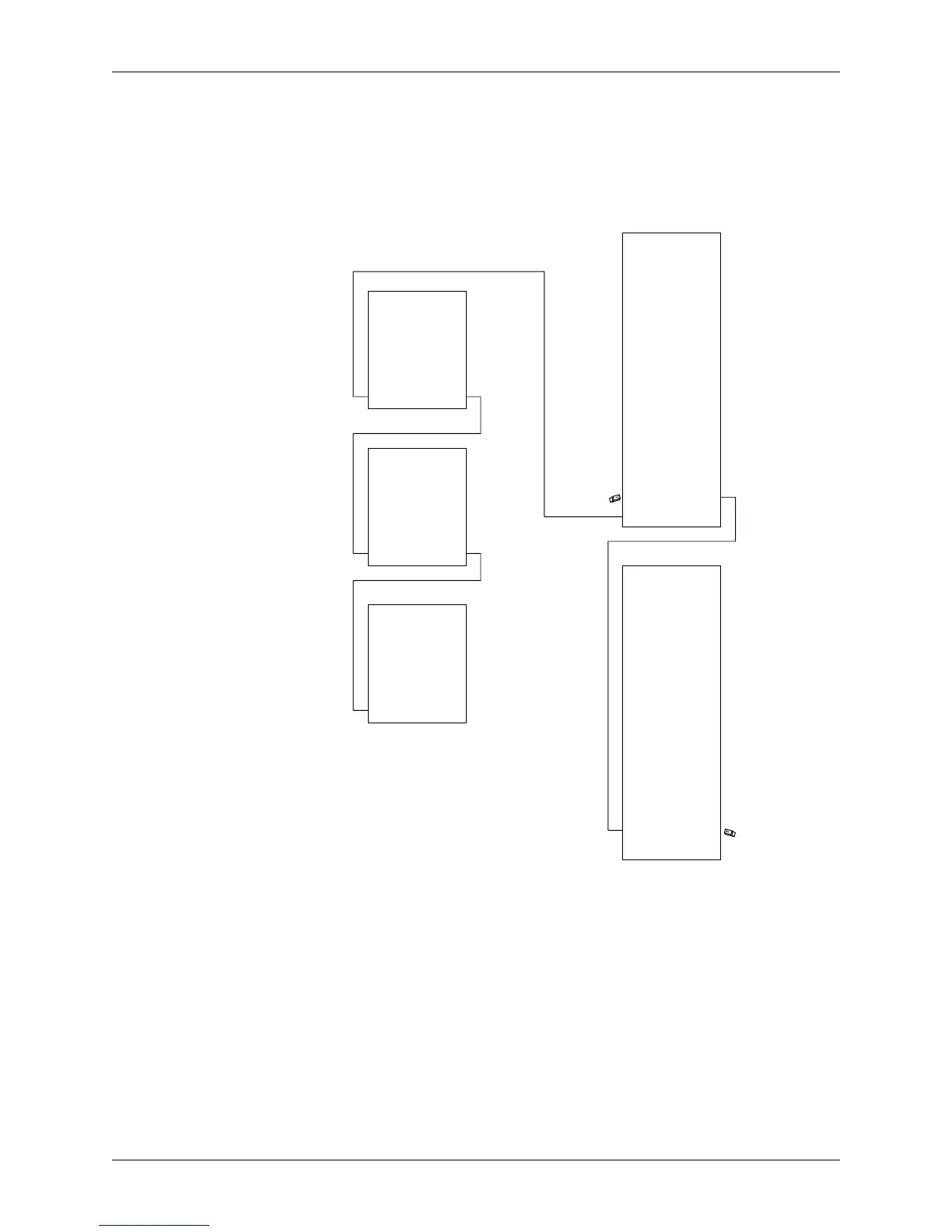

Figure 4. Linking the Vortex to other EchoFree devices.
EF200
From AEC
From Rem.
To AEC
To Rem.
Phone
ASPI
Bus In
ASPI
Bus Out
Vortex
®
In 1
In 2
In 3
In 4
In 5
In 6
In 7
In 8
Out 1
Out 2
Out 3
Out 4
Out 5
Out 6
Out 7
Out 8
In A
In B
Out A
Out B
In D
Out C
Out D
In C
EF Bus OutEF Bus In
ASPI Bus
Vortex
®
In 1
In 2
In 3
In 4
In 5
In 6
In 7
In 8
Out 1
Out 2
Out 3
Out 4
Out 5
Out 6
Out 7
Out 8
In A
In B
Out A
Out B
In D
Out C
Out D
In C
EF Bus OutEF Bus In
ASPI Bus
EF200
From AEC
From Rem.
To AEC
To Rem.
Phone
ASPI
Bus In
ASPI
Bus Out
EF200
From AEC
From Rem.
To AEC
To Rem.
Phone
ASPI
Bus In
ASPI
Bus Out
EF Bus
Terminator
EF Bus
Terminator

Polycom Vortex EF2280 Specifications

General

Rack capacity	1U
Frequency range	20 - 20000 Hz
Cancellation span	270 ms
Echo cancellation	65 dB
Phantom power	48 V
Nominal input level	0 dB
Output gain	-100 - 20 dB
Output impedance	33 Ω
Maximum output amplitude	23 dB
RS-232 ports	1
Audio connections	2 x 3.5mm
Parallel ports quantity	2
Input voltage	110 - 240 V
Output current	20 mA
Output voltage	5 V
Input frequency	47/63 Hz
Power consumption (typical)	30 W
Operating temperature (T-T)	0 - 40 °C

Weight and Dimensions

Weight	1800 g
Dimensions (WxDxH)	483 x 244 x 45 mm
