PJN3 SERIES

RECIRCULATING FLUSH

PARTS DIAGRAM

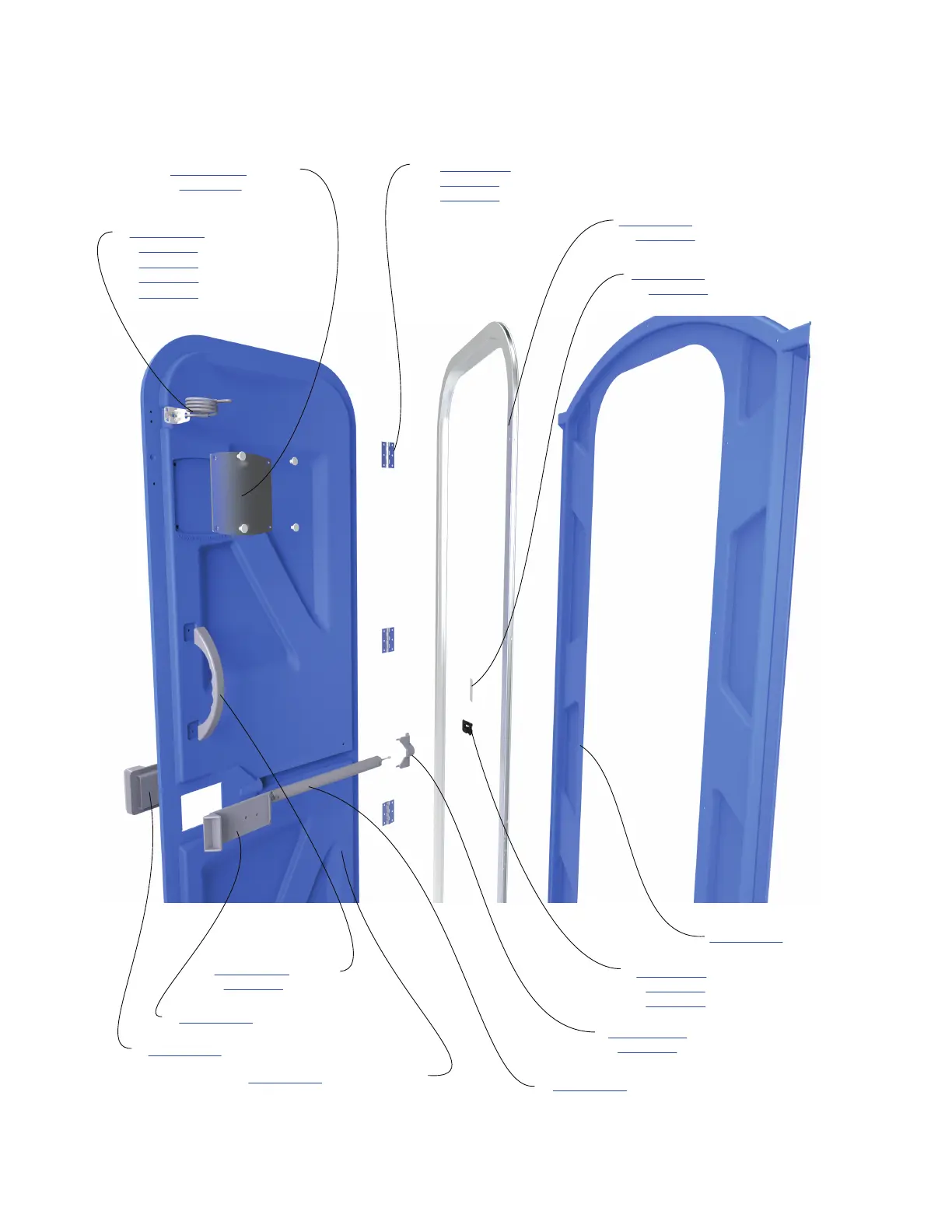

PJN3-0003 FRONT ASSEMBLY

http://www.polyjohn.com/pc-000204/

http://www.polyjohn.com/psn2-1000f

http://www.polyjohn.com/pc-000531/

http://www.polyjohn.com/pj03-0007n/

http://www.polyjohn.com/pc-000570/

http://www.polyjohn.com/2-roll-toilet-paper-dispenser/

http://www.polyjohn.com/pj03-0002/

http://www.polyjohn.com/pjn3-0001/

http://www.polyjohn.com/ft02-2000

http://www.polyjohn.com/pc-000117/

http://www.polyjohn.com/pc-000107/

http://www.polyjohn.com/pc-000106/

http://www.polyjohn.com/pc-000174/

http://www.polyjohn.com/pc-000123/

http://www.polyjohn.com/pc-000140/

http://www.polyjohn.com/pc-000192/

http://www.polyjohn.com/pc-000105/

http://www.polyjohn.com/pjn3-0001t/

http://www.polyjohn.com/pc-000106/

http://www.polyjohn.com/pc-000100/

http://www.polyjohn.com/pc-000103/

http://www.polyjohn.com/pc-000106/

http://www.polyjohn.com/pc-000192/

http://www.polyjohn.com/pc-000205m/

http://www.polyjohn.com/pc-000760/

http://www.polyjohn.com/pc-000106/

http://www.polyjohn.com/pc-000100/

http://www.polyjohn.com/pc-000106/

http://www.polyjohn.com/pc-000100/

http://www.polyjohn.com/pc-000106/

http://www.polyjohn.com/pc-000100/

http://www.polyjohn.com/pjn3-0003/

http://www.polyjohn.com/pj03-0011/

http://www.polyjohn.com/ip-0001rt/

http://www.polyjohn.com/liquid-soap-dispenser

http://www.polyjohn.com/pc-000102/

http://www.polyjohn.com/pc-000106/

http://www.polyjohn.com/paper-towel-dispenser

http://www.polyjohn.com/pc-000102/

http://www.polyjohn.com/pc-000106/

http://www.polyjohn.com/pc-000158/

*PC-000181 - Cable Clip

(2) PC-000109 - Rivet

(2) PC-000106 - Washer

*PJN3-0038 - Slide Latch w/Decal

*PJN3-0043 - Door Pull

*PC-000806 - Spring Clip

(2) PC-000105 - Rivet

PC-000798 - Serial ID Plate

(2) PC-000104 - Rivet

PJN3-0004 - Front Panel

(4) PC-000170 - Hinge

(12) PC-000102 - Rivet (Hinge to Door)

(12) PC-000104 - Rivet (Hinge to Jamb)

PJN3-0006 - Door Jamb

(8) PC-000104 - Rivet

*PC-000200 - Door Check Cable

(2) PC-000102 - Rivet (To Door)

(1) PC-000104 - Rivet (To Jamb)

(1) PC-000106 - Washer (To Jamb)

(1) PC-000168 - Washer (To Jamb)

*PC-100800 - Barrel End Spring Assembly

*PC-000223 - Handle

(2) PC-000105 - Rivet

*TM01-0003 - Mirror

(4) PC-000367 - Push Fastener

PJN3-0005 - Door w/Hinges

http://www.polyjohn.com/pc-100800/

http://www.polyjohn.com/pc-000181/

http://www.polyjohn.com/pjn3-0006/

http://www.polyjohn.com/pjn3-0004/

http://www.polyjohn.com/pc-000104/

http://www.polyjohn.com/pc-000105/

http://www.polyjohn.com/pc-000106/

http://www.polyjohn.com/pc-000104/

http://www.polyjohn.com/pc-000105/

http://www.polyjohn.com/pc-000109/

http://www.polyjohn.com/pc-000104/

http://www.polyjohn.com/pc-000170/

http://www.polyjohn.com/pc-000102/

http://www.polyjohn.com/pjn3-0043/

http://www.polyjohn.com/pc-000104/

http://www.polyjohn.com/pc-000798/

http://www.polyjohn.com/pc-000102/

http://www.polyjohn.com/pc-000106/

http://www.polyjohn.com/TM01-0003/

http://www.polyjohn.com/pc-000367/

http://www.polyjohn.com/pc-000168/

http://www.polyjohn.com/pjn3-0038/

http://www.polyjohn.com/pc-000223/

http://www.polyjohn.com/pc-000806/

http://www.polyjohn.com/pjn3-0005/

*Items not included in the PJN3-0003 Front Assembly must be ordered separately
