PJN3 SERIES
RECIRCULATING FLUSH
PARTS DIAGRAM

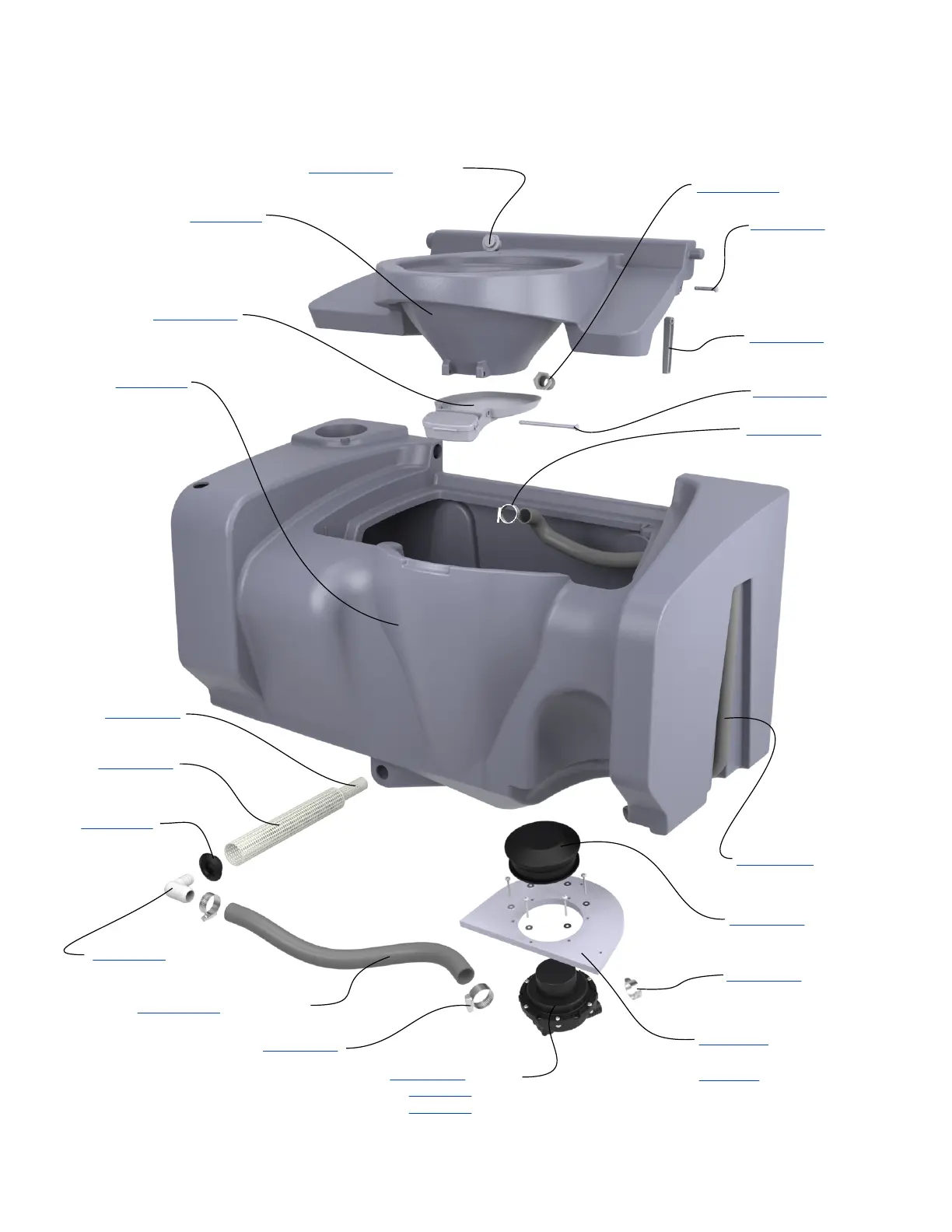

FT02-1000 RECIRCULATING FLUSH TANK
http://www.polyjohn.com/pc-000231/
http://www.polyjohn.com/pc-000106/
http://www.polyjohn.com/ch100-0165/
http://www.polyjohn.com/pc-000352/
http://www.polyjohn.com/pc-100327/
http://www.polyjohn.com/pc-000352/
http://www.polyjohn.com/pc-000603/
http://www.polyjohn.com/ch100-050/
http://www.polyjohn.com/FT02-0010/
http://www.polyjohn.com/pc-000604/
http://www.polyjohn.com/pc-100373n/
http://www.polyjohn.com/pc-000352/
http://www.polyjohn.com/pc-100607/
http://www.polyjohn.com/pc-100609/
http://www.polyjohn.com/pc-100373a/
http://www.polyjohn.com/pc-100608/
http://www.polyjohn.com/ft02-0003/
http://www.polyjohn.com/ft02-0002/
http://www.polyjohn.com/ft02-1000/
http://www.polyjohn.com/pc-000174/
http://www.polyjohn.com/pc-000497c/
http://www.polyjohn.com/pc-000416/
http://www.polyjohn.com/pc-000304/
http://www.polyjohn.com/pc-000303/
PC-000497C
Flapper Valve Complete
PC-100373A -Nozzle Adapter
PC-100608 - Prop Rod
PC-100609 -
Prop Rod Pivot
PC-100607 -
Flapper Pivot Shaft
PC-100373N - Nozzle
PC-000303
Primary Filter
PC-000352
Hose Clamp S.S. #12
PC-000603 - Pump
(6) PC-000231 - Screw
(6) PC-000106 - Washer
FT02-0010
Foot Pump Plate
PC-000174 - Screw
PC-000604
Rubber Dust Cover
(2) PC-000352
Hose Clamp S.S. #12
CH100-050 - Discharge
Hose 1” x 50” Long
CH100-0165 - Intake Hose
FT02-0002
Recirc Waste Tank
PC-000352
Hose Clamp S.S. #12
FT02-0003
PJN3 Recirc Lid
PJN3 Fresh Flush Tank
FT02-1000
PC-000304
Secondary Filter
PC-000416
3/4” Uniseal
PC-100327
3/4” x 1” Barbed Elbow
