PJN3 SERIES
RECIRCULATING FLUSH
FULL SIZE SCALE

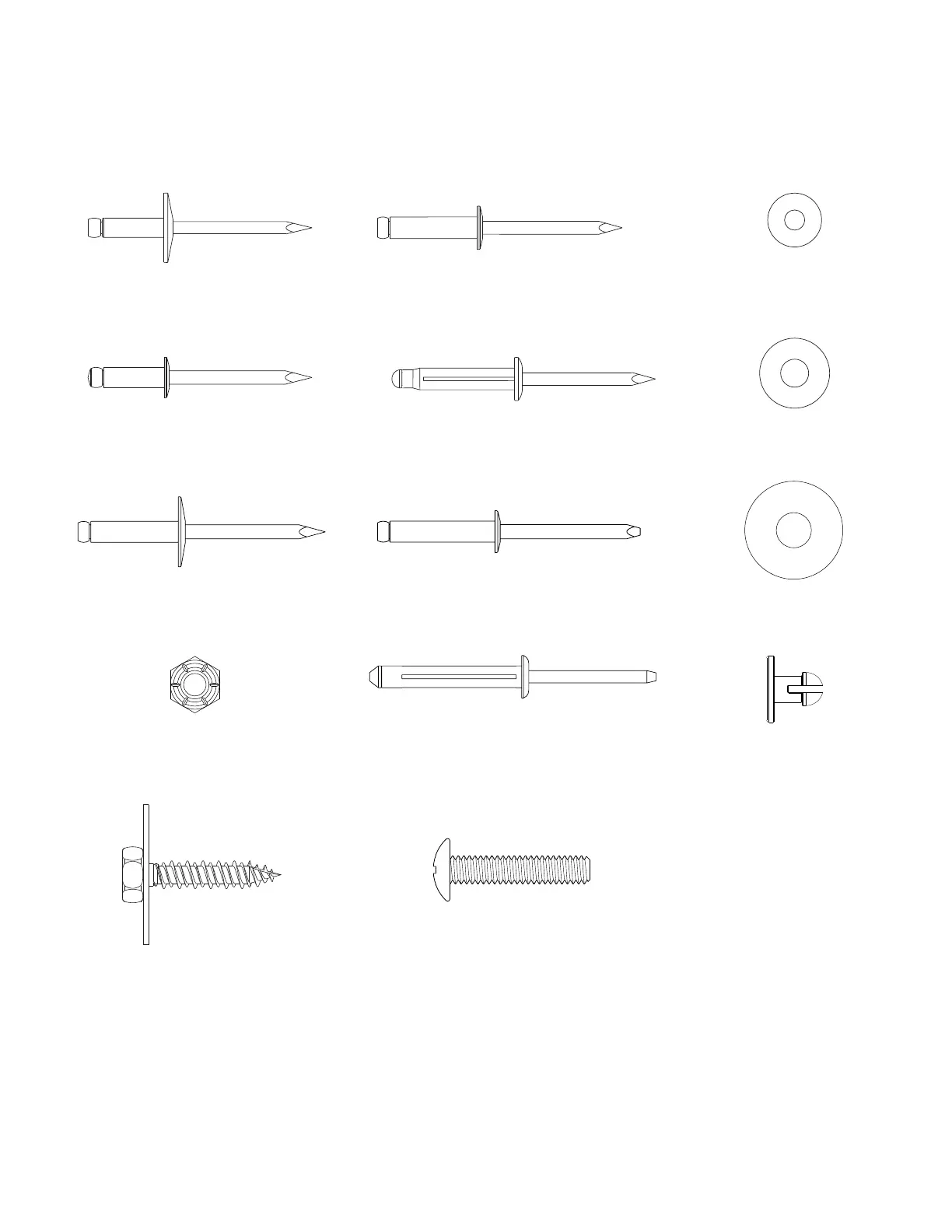

FASTENER DRAWINGS
(2) PC-000109 Rivet Small
Flange, Long
(2) PC-000104 Rivet Small
Flange, Long
(71) PC-000100 Rivet Large
Flange, Short
(2) PC-000102 Rivet Small
Flange, Short
(8) PC-000103 Rivet Large
Flange, Medium
(4) PC-000105 Rivet Small
Flange, Hollow Wall
(1) PC-000117 Rivet Small
Flange, Long Hollow Wall
(4) PC-000140 Nut
1/4”-20 Nylok
(19) PC-000192 Sems Assembly
1/4” x 1-1/4” Self Tapping
(80) PC-000106 Washer
3/16” Back-up
(4) PC-000123 Washer
1/4” x 5/8” Flat
(1) PC-000168 Washer
5/16” x 7/8” Flat
(4) PC-000367 Fastener
Nylon Push
(5) PC-000174 Screw
1/4” -20 x 1-1/4” Long
