Polyprint TEXJET - Standard (Max) Plate Installation; Mounting the Universal Plate

POLYPRINT SA – TEXJET OPERATION MANUAL V6.4 EN
- 36 -

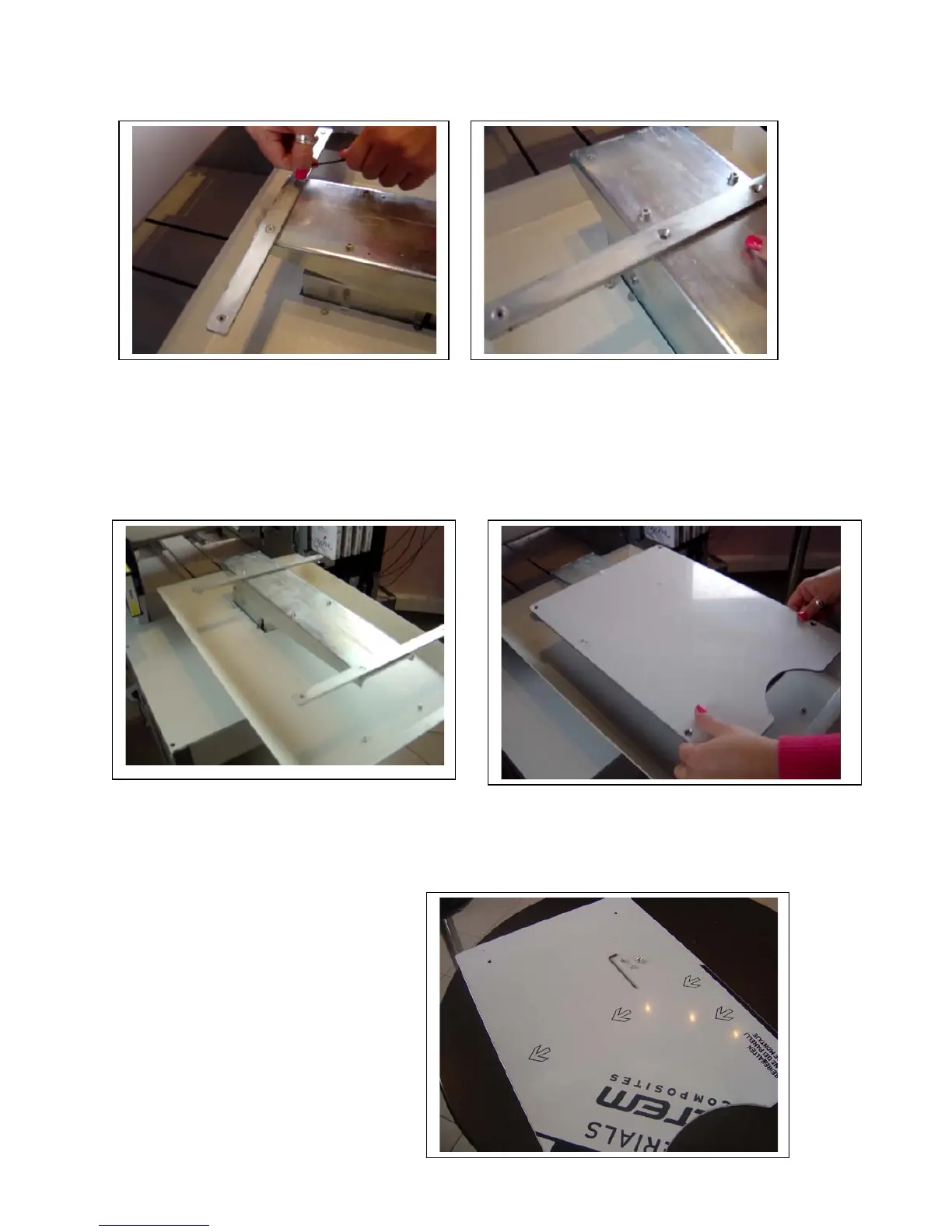

Place the Universal plate over the 2 long interface brackets and screw the 4
countersunk hex screws.
Standard plate (max)
The Standard plate includes the following items.
1 Standard plate
4 countersunk hex 2,5mm
screws
2,5mm Alen metric wrench tool
