7HFKQLFDO6SHFLILFDWLRQV

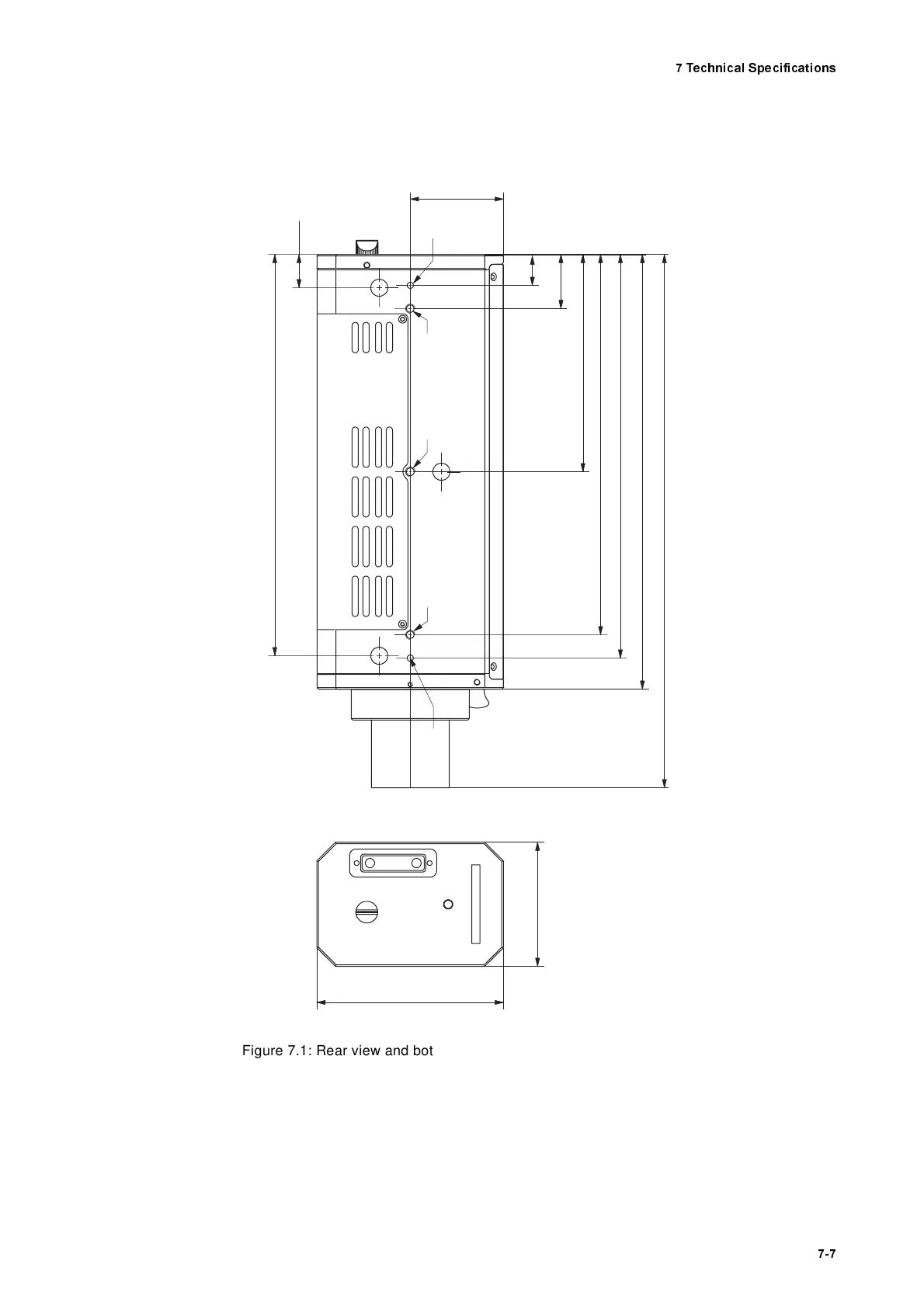

Figure 7.1: Rear view and bottom view of the sensor head OFV-303/-353 (dimensions not
specified are given in mm)
CONTROLLER
LASE R
EM ISSIO N
OFF
ON
S
I
G
N
A
L
120
80
343.5
280
260
245
140
35
20
ø4F8
M6
258.5
21.5
1/4" - 20 M6
ø4F8
60
